8×digital input
4
The modular system
4.5
L
4.5−1 EDSPM−TXXX−9.0−11/2009
4.5 8×digital input
The module 8×digital input detects the binary control signals of the process level
and transfers them to the master bus system.
l 8 digital inputs
l Suitable for switches and proximity switches
l LED displays the states of the digital inputs
0
1
2
epm−t015

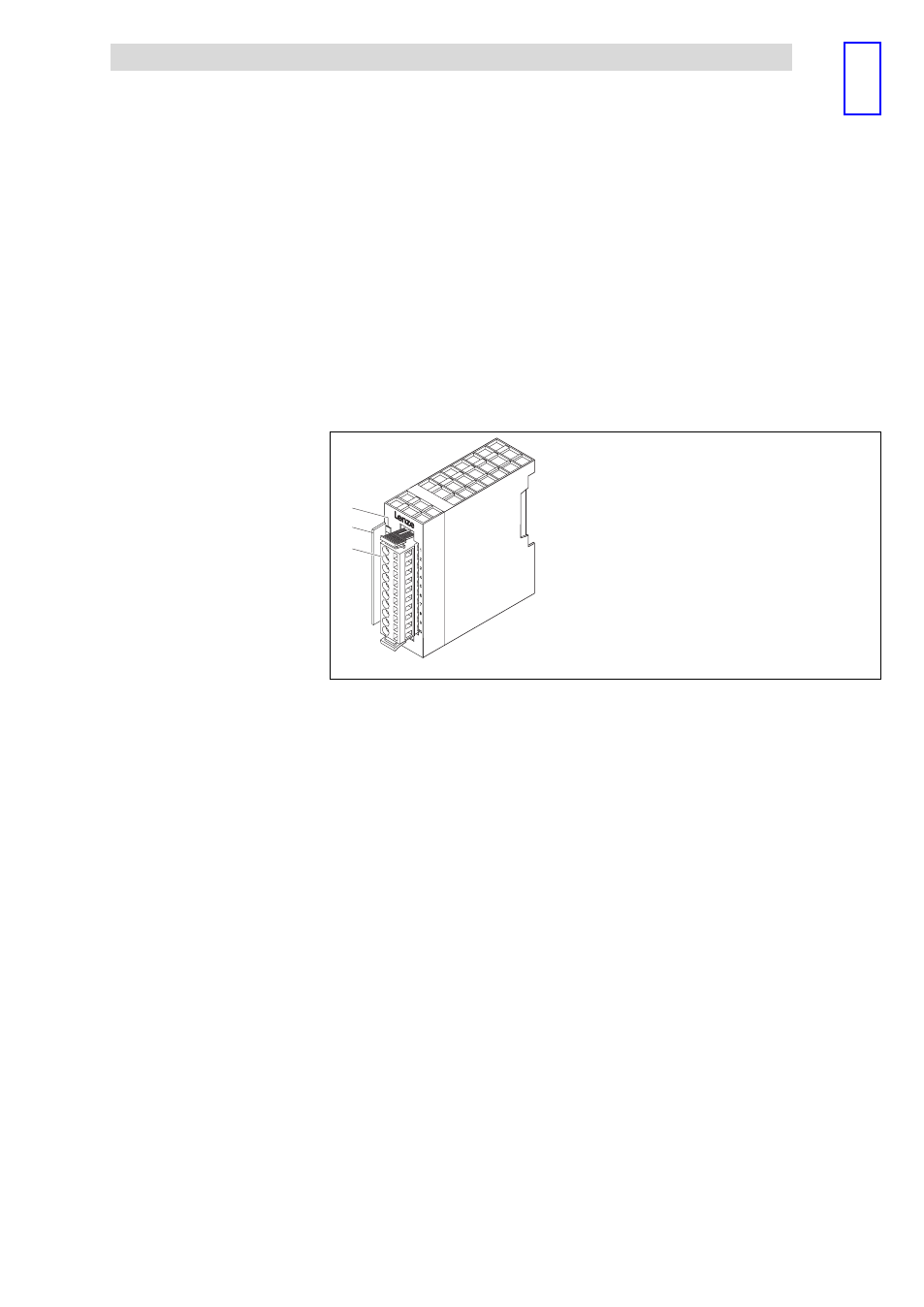

Fig. 4.5−1 Overview of 8×digital input
0 LED for status display
1
Bit address label card
2 Plug−in terminal strip
Description
Features
Overview
