Lenze EPM−T9XX Modular system - Manual (Page 372)

Parameterising 2/4xcounter module
2 x 32 bit counter with GATE (mode 35)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.18
L
12.4−52 EDSPM−TXXX−9.0−11/2009
epm−t161

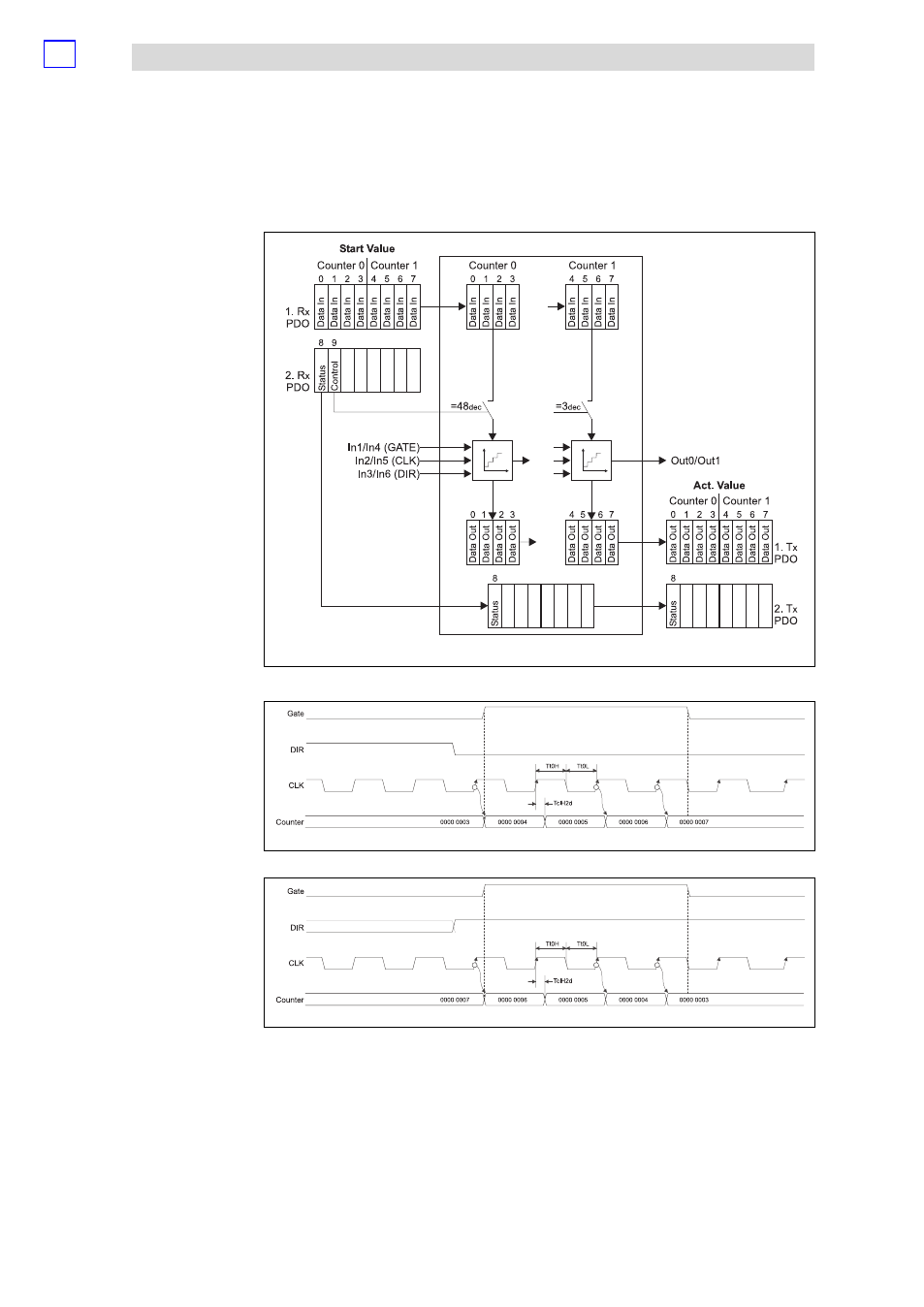

Fig. 12.4−70 Counter access of the 2/4xcounter in the mode 35
epm−t162
Fig. 12.4−71 Signal characteristic of 2/4xcounter in the mode 35 (upcounter)
epm−t163
Fig. 12.4−72 Signal characteristic of 2/4xcounter in the mode 35 (downcounter)
Counter access
Signal characteristic
