8×dig. I/O compact
5
The compact system
5.1
L
5.1−5 EDSPM−TXXX−9.0−11/2009
DIO 8xDC24V 1A
L+
.0
.1
.2
.3
.4
.5
.6
.7
F
1
X4 X4–
2
3
4
5
6
7
8
9
10
2
L
PW
ER
RD
BA
ADR.
0 1
+ – PE
X1
DC
24V
DIO 8xDC24V 1A
X
2x11COM
EPM-T830 1A.10
0
X3
1
epm−t042

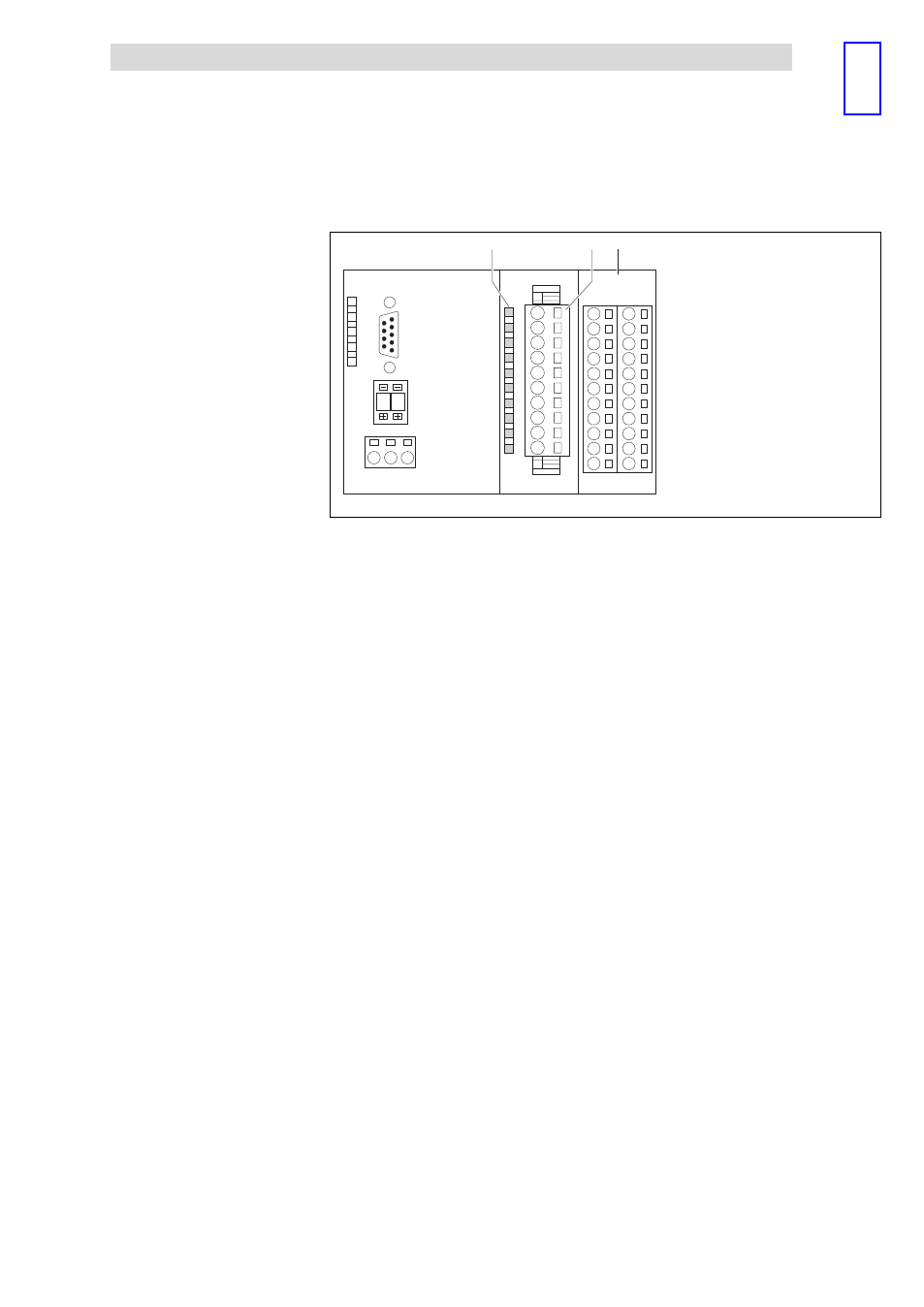

Fig. 5.1−4 Front view of 8×dig. I/O compact
0
Status display for digital inputs/outputs at terminal strip X3
L+ LED (yellow) is lit when supply voltage is applied.
.0 ... .7 LED (green) is lit when the output is triggered and / or a HIGH
level is detected at the input, respectively.
F LED (red) is lit in case of overload, overheating, short−circuit
errors.
1
Terminal strip X3 assignment
X3/1 +24 V DC (supply voltage)
X3/2 ... X3/9 Digital inputs/outputs E/A.0 ... E/A.7
X3/10 GND (reference potential)
2 Terminal strips (2 × 11 terminals)
X4 Electrically isolated terminal strip
X4– Terminal strip GND
Status display and terminal
assignment
