Parameterising 2/4xcounter module
2 x 32 bit counter (mode 0)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.3
L
12.4−7 EDSPM−TXXX−9.0−11/2009
epm−t065

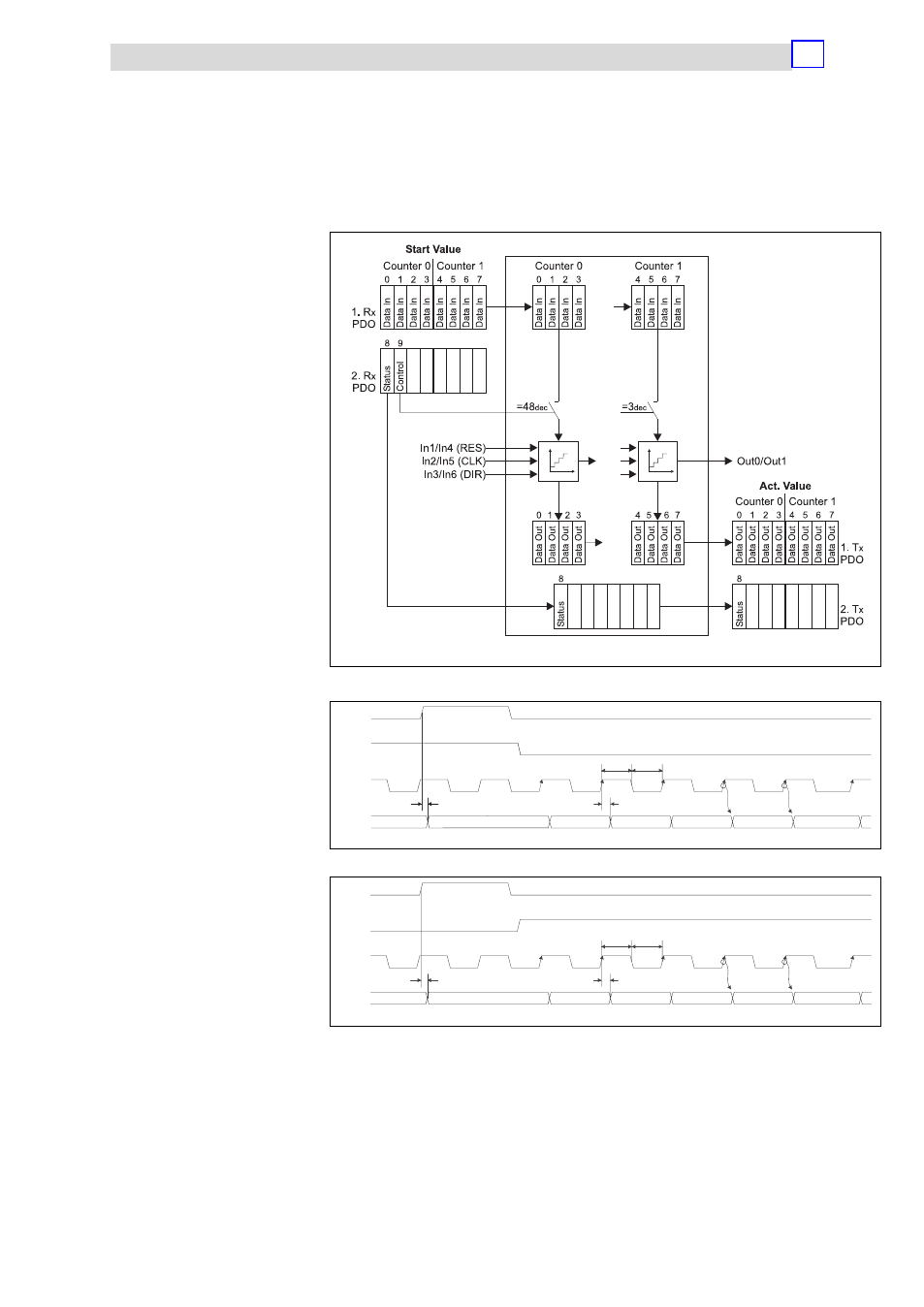

Fig. 12.4−5 Counter access of the 2/4xcounter in the mode 0
Tt0H Tt0L
TclH2d TreH2d
xxxx xxxx 0000 0000 0000 0001 0000 0002 0000 0003 0000 0004 0000 0005
RES
DIR
CLK
Counter
epm−t067
Fig. 12.4−6 Signal characteristic of 2/4xcounter in the mode 0 (upcounter)
RES
DIR
CLK
Counter
Tt0H Tt0L
TclH2d TreH2d
xxxx xxxx 0000 0000 FFFF FFFF FFFF FFFE FFFF FFFD FFFF FFFC FFFF FFFB
epm−t066
Fig. 12.4−7 Signal characteristic of 2/4xcounter in the mode 0 (downcounter)
Counter access
Signal characteristic
