Parameterising 2/4xcounter module
Encoder with G/RES (modes 28 ... 30)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.15
L
12.4−42 EDSPM−TXXX−9.0−11/2009
epm−t145

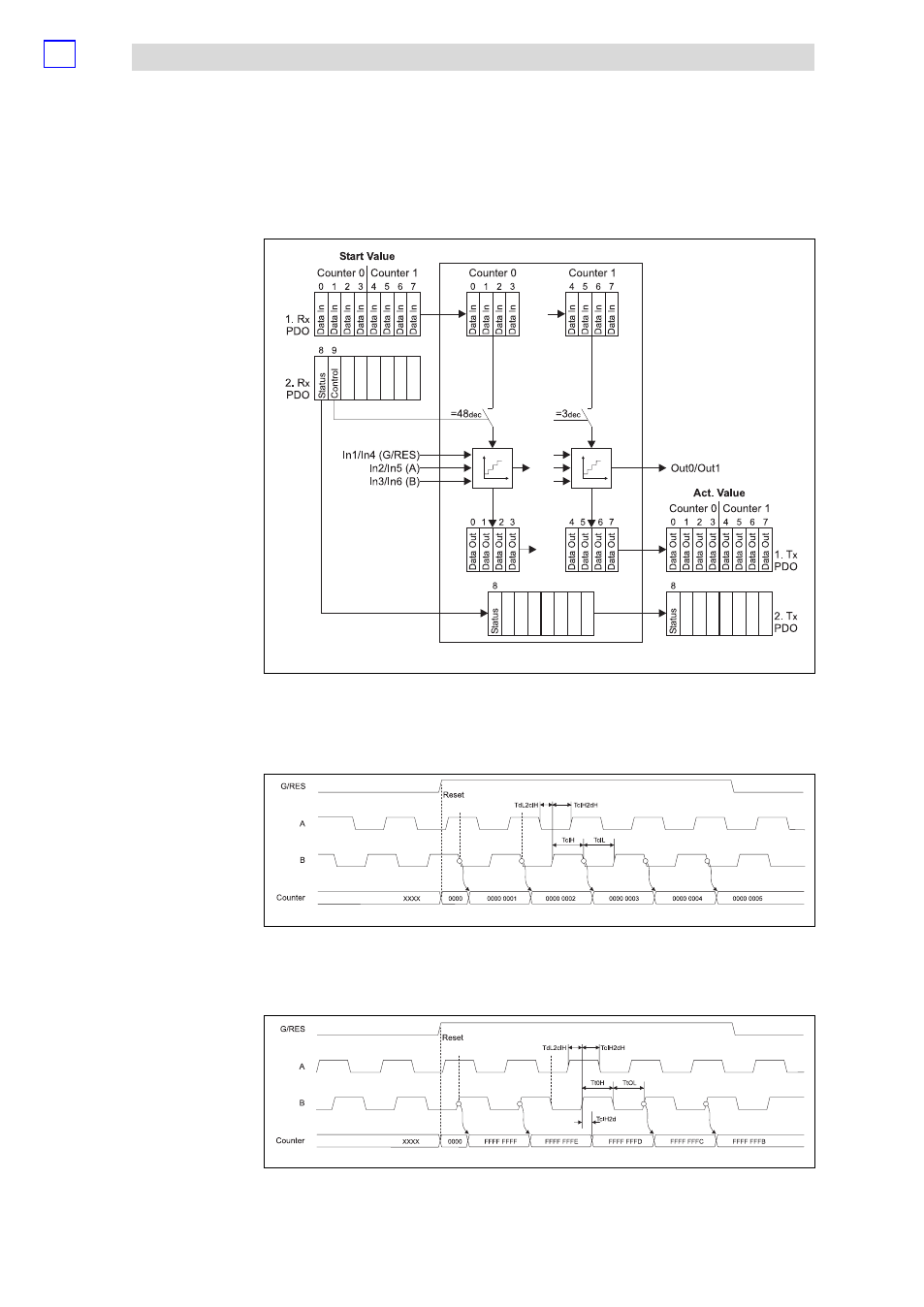

Fig. 12.4−56 Counter access of the 2/4xcounter in the modes 28 ... 30
Every HIGH−LOW edge at input IN2 / IN5 (A) increments the counter by 1 if a HIGH
level is applied to input IN3 / IN6 (B) at this time.
epm−t148
Fig. 12.4−57 Signal characteristic of the 2/4xcounter in the mode 28 (upcounter)
Every LOW−HIGH edge at input IN2 / IN5 (A) decrements the counter by 1 if a HIGH
level is applied to input IN3 / IN6 (B) at this time.
epm−t149
Fig. 12.4−58 Signal characteristic of 2/4xcounter in the mode 28 (downcounter)
Counter access
Signal characteristic in mode 28
