4×analog output ±10V
4
The modular system
4.18
L
4.18−1 EDSPM−TXXX−9.0−11/2009
4.18 4×analog output ±10V
The module 4×analog output ±10V has 4 analog outputs. The module assigns a
total of eight bytes of output data in the process image (2 bytes per output). The
analog outputs are isolated with regard to the backplane bus.
)
Note!
The chapter "Parameter setting" describes how to parameterise
the module.
l 4 analog outputs
l Output range: ± 10 V, 0 ... 10 V
l Signal function and data format can be parameterised
l DC 24 V supply voltage
l One reference potential (GND) for all outputs
0
1
2
epm−t015

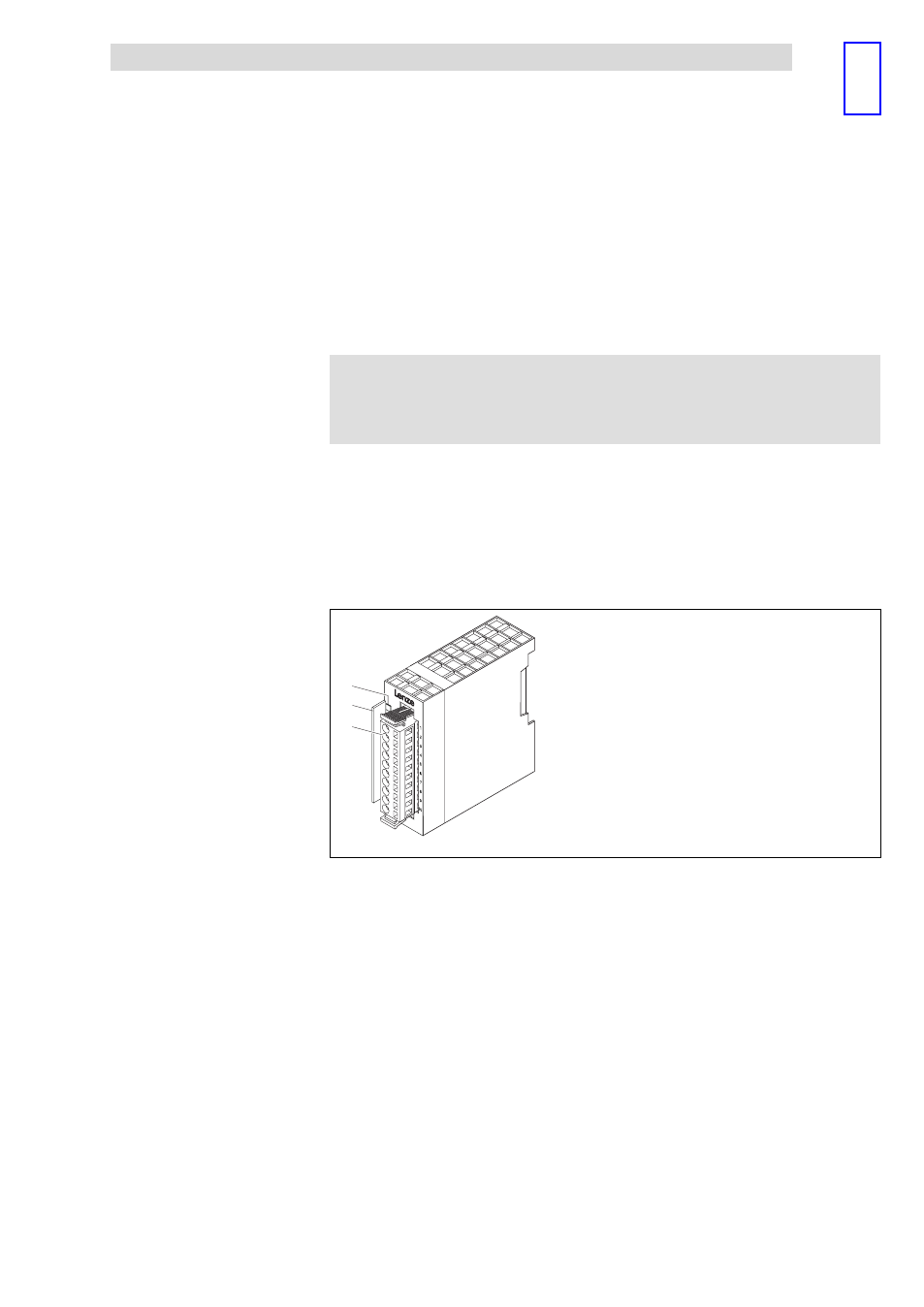

Fig. 4.18−1 Overview of 4×analog output ±10V
0
LED for status display
1 Bit address label card
2
Plug−in terminal strip
Description
Features
Overview
