16×dig. I/O compact (single−wire conductor)
The compact system
5.2
L
5.2−1
EDSPM−TXXX−9.0−11/2009
5.2
16×dig. I/O compact (single−wire conductor)
The 16×dig. I/O compact (single−wire conductor) module consists of 1 CAN
gateway which serves as an interface to the master bus system as well as 8 digital
inputs, 4 digital outputs and 4 digital inputs/outputs.
Each output can be loaded with up to 1 A. The status of the channels is displayed
by LEDs.
l
8 digital inputs
l
4 digital inputs/outputs, depending on the circuit configuration
l
4 digital outputs
l
Voltage supply via an external 24 V DC voltage source
l
Connection to the system bus (CAN) via a 9−pole Sub−D plug
l
Address and baud rate setting via coding switch
l
The baud rate is stored permanently in an EEPROM in the module
l
LEDs display the status
0
1
1
2
3
0
4
5 6
epm−t050

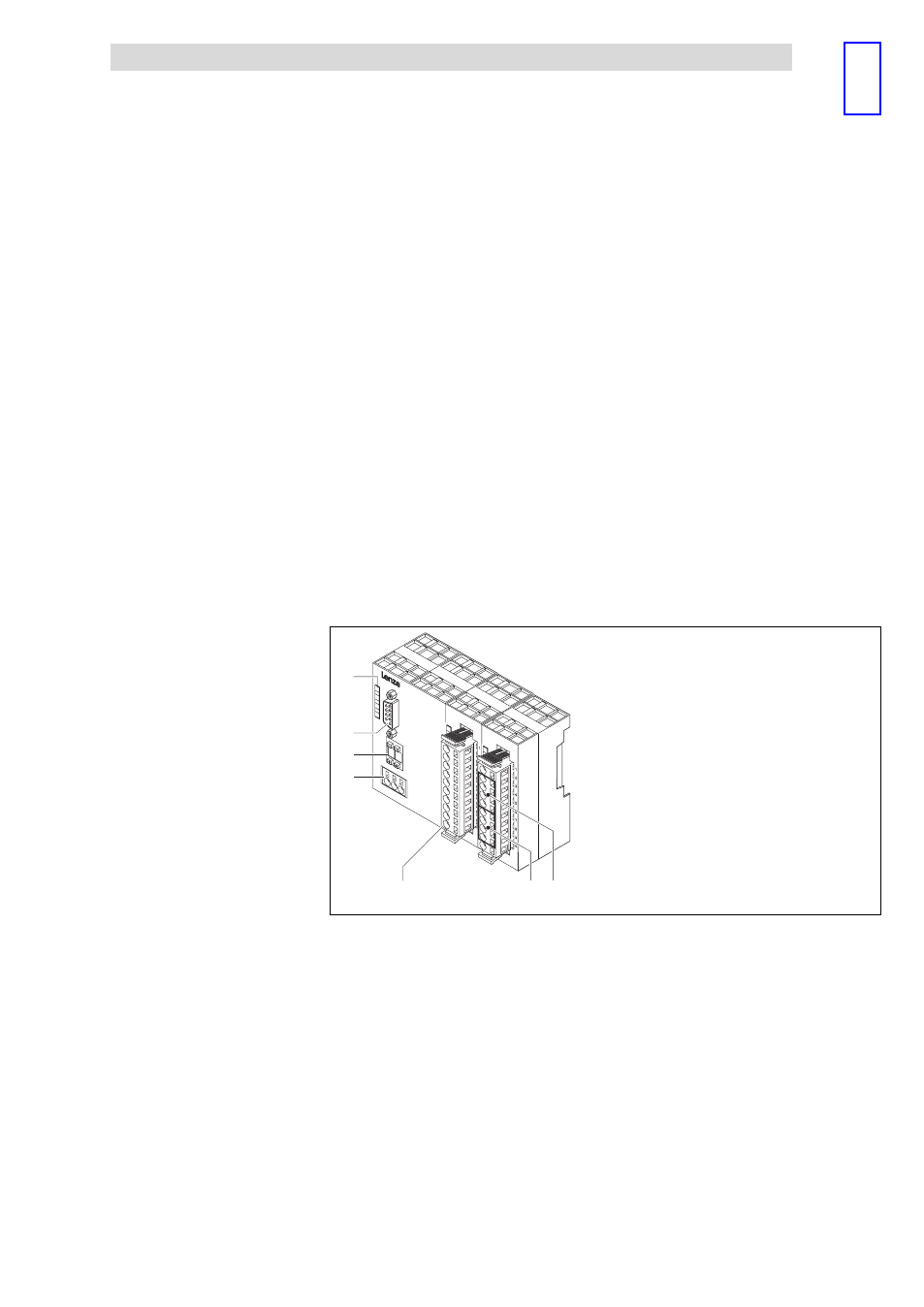

Fig. 5.2−1
16×dig. I/O compact (single−wire conductor)
0
LEDs for status display
1
9−pole Sub−D plug for connection to the system bus (CAN)
2
Coding switch to set address and baud rate
3
External voltage supply connection
4
Terminal strip for digital input signals
5
Terminal strip for digital output signals
6
Terminal strip for digital input / output signals (optionally configurable)
Description
Features
Overview
