The compact system
6
Mechanical installation
6.2
L
6.2−2 EDSPM−TXXX−9.0−11/2009
Mounting
CLACK!
1 4 3 2
40
60
0
1
epm−t057

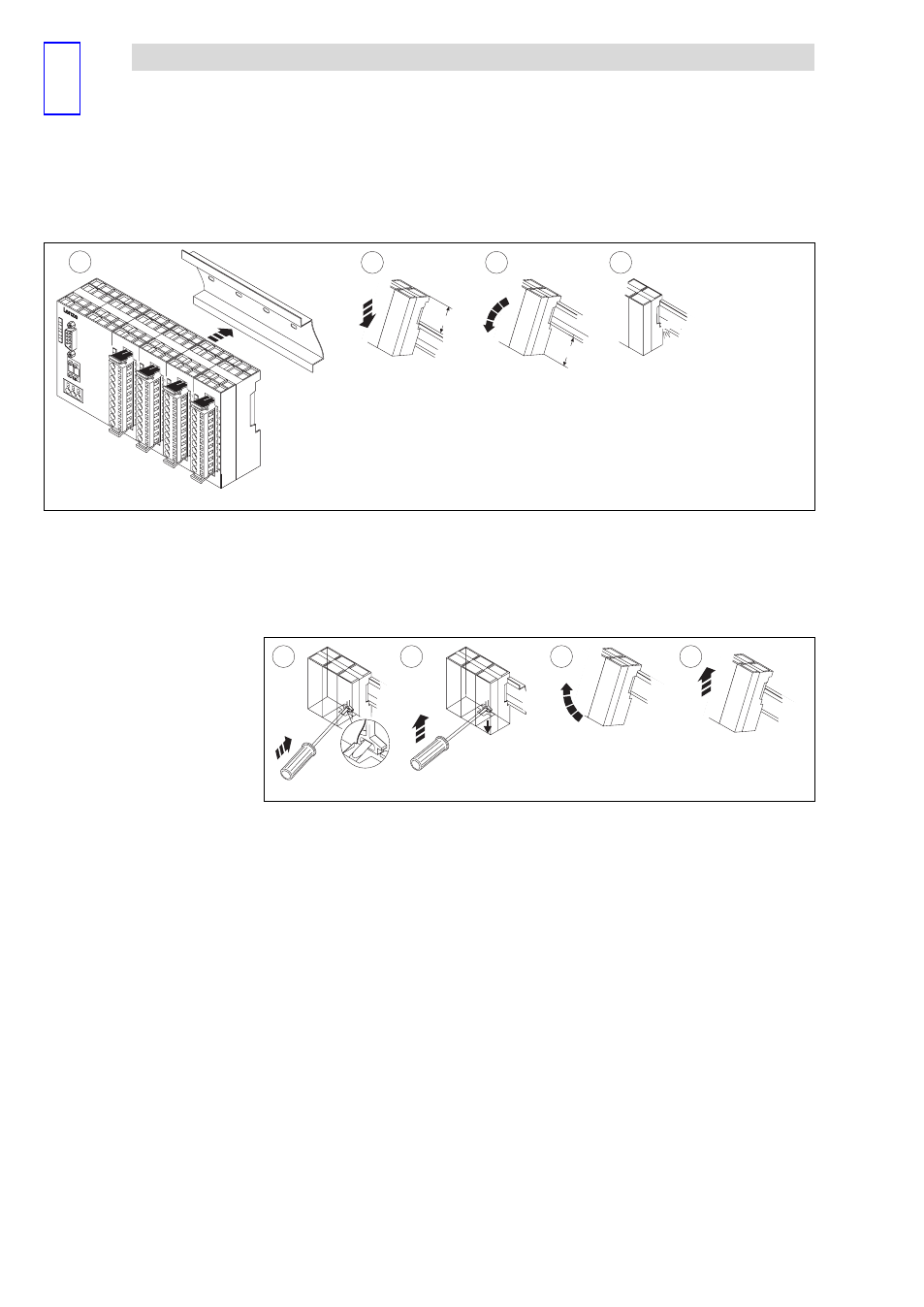

Fig. 6.2−2 Mounting the module on the DIN rail
 Mount the DIN rail to allow the module an installation clearance of min. 60 mm
at the top and min. 40 mm at the bottom.
‚ Lower the module on to the DIN rail at an angle of approx. 45 °
ƒ Turn the module downward
„ Allow the module to audibly engage with the DIN rail
1 4 3 2
epm−t058
Fig. 6.2−3 Remove the module from the DIN rails
 Insert the screw driver into the withdrawal slot
‚ Press the screw driver upward to disengage the module
ƒ Pull the module towards the front by its bottom edge.
„ Remove the module from the DIN rail by pulling it upwards.
Dismounting
