4×analog output 0...20mA
The modular system
4.19
L
4.19−1
EDSPM−TXXX−9.0−11/2009
4.19
4×analog output 0...20mA
The module 4×analog output 0...20mA has 4 analog outputs. The module assigns
a total of eight bytes of output data in the process image (2 bytes per output). The
analog outputs are isolated with regard to the backplane bus.
)
Note!
The chapter "Parameter setting" describes how to parameterise
the module.
l
4 analog outputs
l
Output ranges: 0 ... 20 mA, 4 ... 20 mA
l
Signal function and data format can be parameterised
l
DC 24 V supply voltage
l
One reference potential (GND) for all outputs
0
1
2
epm−t015
Fig. 4.19−1

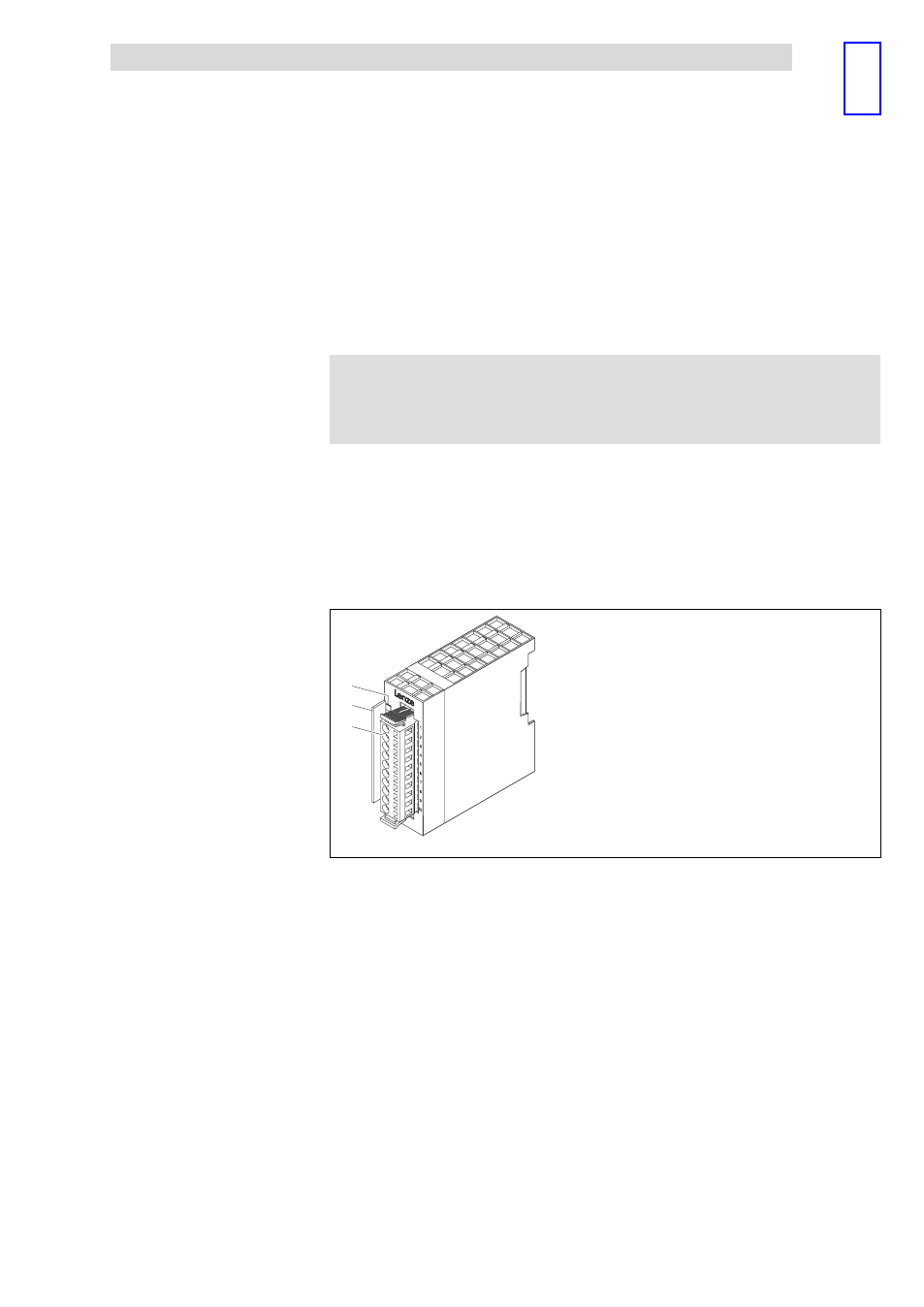

Overview of 4×analog output 0...20mA
0
LED for status display
1
Bit address label card
2
Plug−in terminal strip
Description
Features
Overview
