PROFIBUS−DP
Initialisation
11
Commissioning
11.2
11.2.2
L
11.2−2 EDSPM−TXXX−9.0−11/2009
11.2.2 Initialisation
After the supply voltage has been connected, the initialisation of PROFIBUS
Gateway or PROFIBUS GatewayECO starts:
l The internal functions of the module and the communication via the
backplane bus are checked.
l If communication faults occur on the backplane bus, the module changes
into the "STOP" state. After approx. 2 seconds, the initialisation is started
again.
"STOP" status
PROFIBUS master sets
outputs to "0" and accepts
the set device address
PROFIBUS master
receives projected data
from master
Does the projected
data correspond to the
configuration?
Incorrect
parameter
setting?
Incorrect
configuration?
LED "ER" on
LED "PW" on
Enable inputs and
outputs
Initialisation
Switch on supply voltage
Data exchange
"READY" status
LED "ER" goes off
LED "RD" is blinking
"DataExchange" status
LED "RD" on
LED "DE" on
LED "ER" and LED "PW"
are blinking
synchronously
LED "ER" and LED "PW"
are blinking
asynchronously
Yes
No
No
No
Yes
Yes
EPM−T220

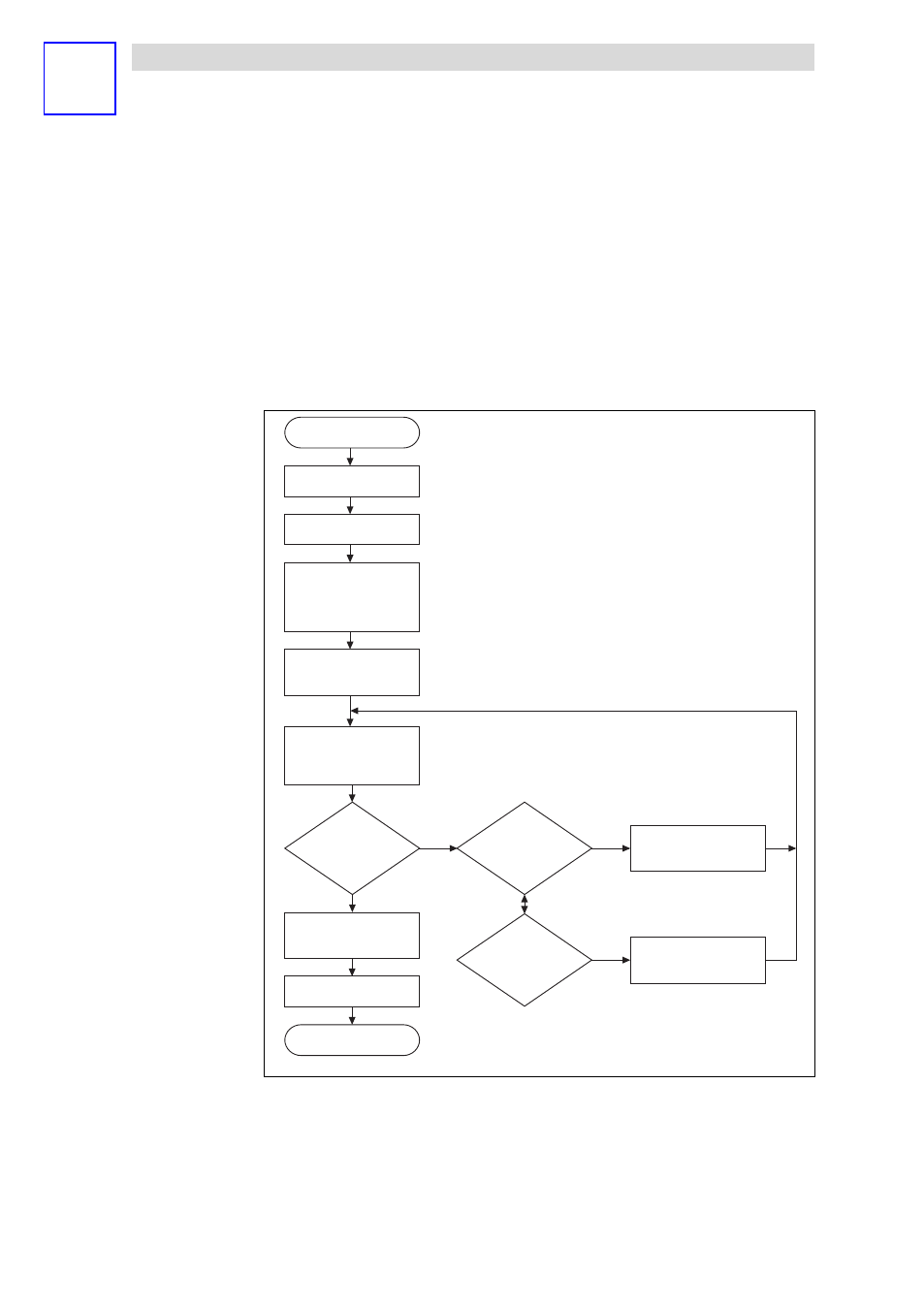

Fig. 11.2−1 Initialisation process
