Avaya C360 Manager User Guide 49
Device Configuration
To view the LLDP tab of the Port Configuration dialog box for a selected
port:
1. Click the port symbol in the Chassis View.
Or
Click the port’s icon in the Tree View. The Port Configuration
dialog box opens to the General tab.
2. Click the LLDP tab. The Port Configuration Dialog Box - LLDP Tab
opens.

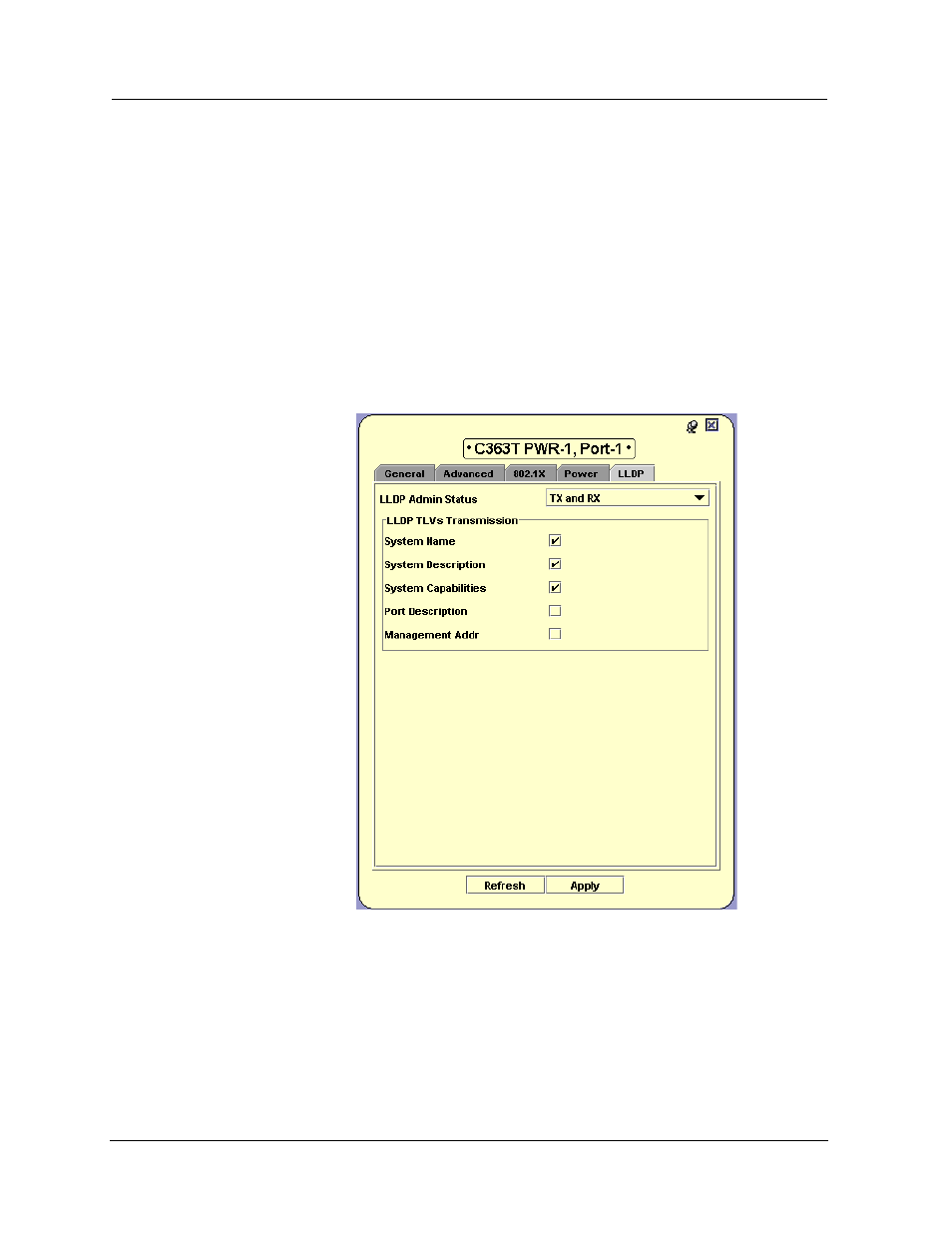

Figure 3-9. Port Configuration Dialog Box - LLDP Tab
