Avaya C360 Manager User Guide 99
WAN Configuration
If more than one DLCI is configured on the Channel Group, the priorities
must be distributed among the DLCIs, and no priority can be configured
on more than one DLCI. For example, if there are three DLCIs configured
for a Channel Group, the first DLCI may be configured with Primary and
High priority, the second with Medium and Normal, and the third with
Low.
Managing Channel Groups
The Channel Groups dialog box provides information about existing
channel groups and enables you to modify and delete channel groups. In
addition, you can start the Channel Group Wizard to create and edit
channel groups.
Viewing the Channel Groups Table
To view the Channel Groups table, select Configure > WAN > Channel
Groups . The Channel Groups table opens.

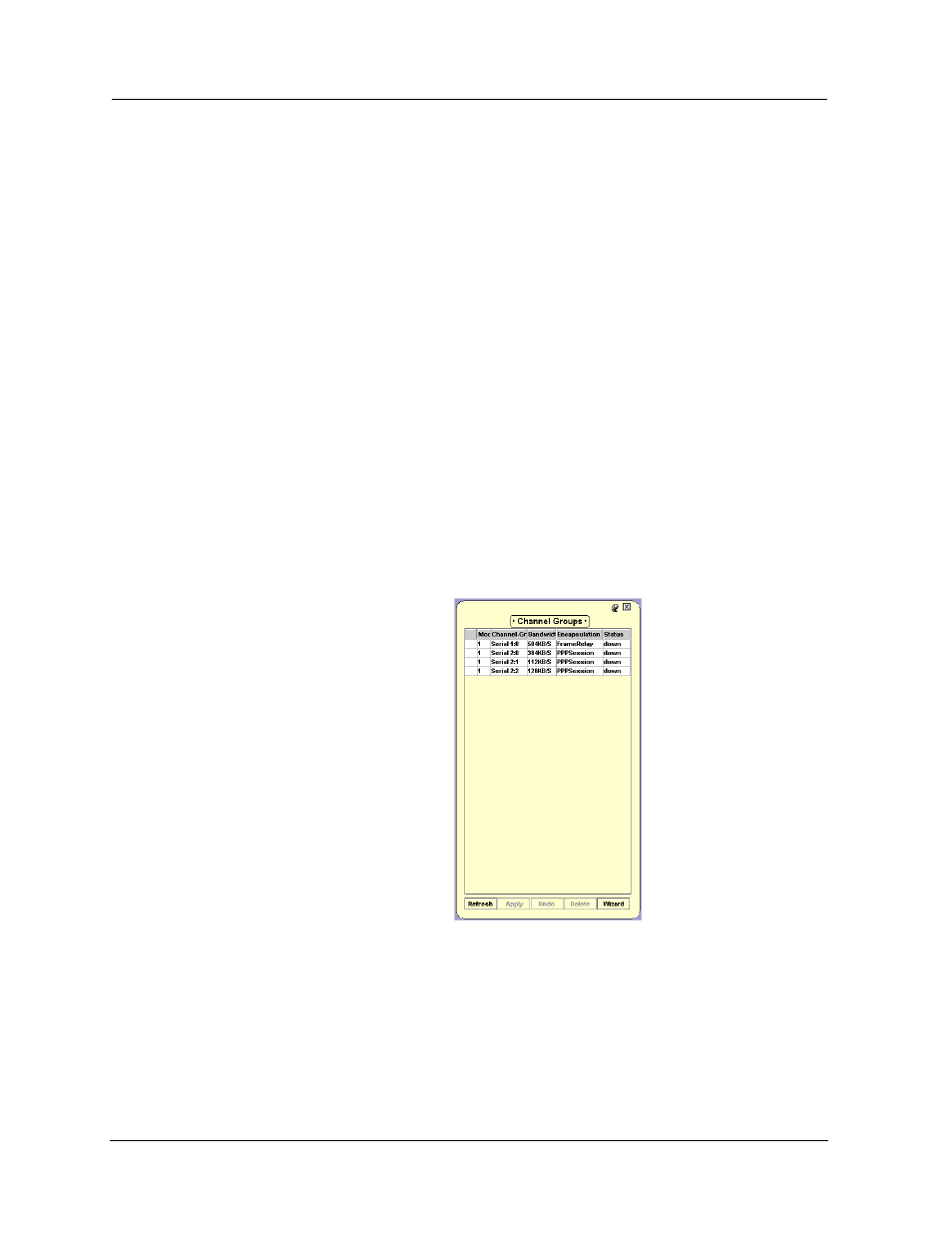

Figure 7-9. Channel Groups Dialog Box
