Avaya C360 Manager User Guide 97
WAN Configuration
2. Click the Channel Group you want to configure. The Channel
Group dialog box opens with the Channel Group tab.
3. Click DLCIs . The DLCIs tab of the Channel Group dialog box
appears.

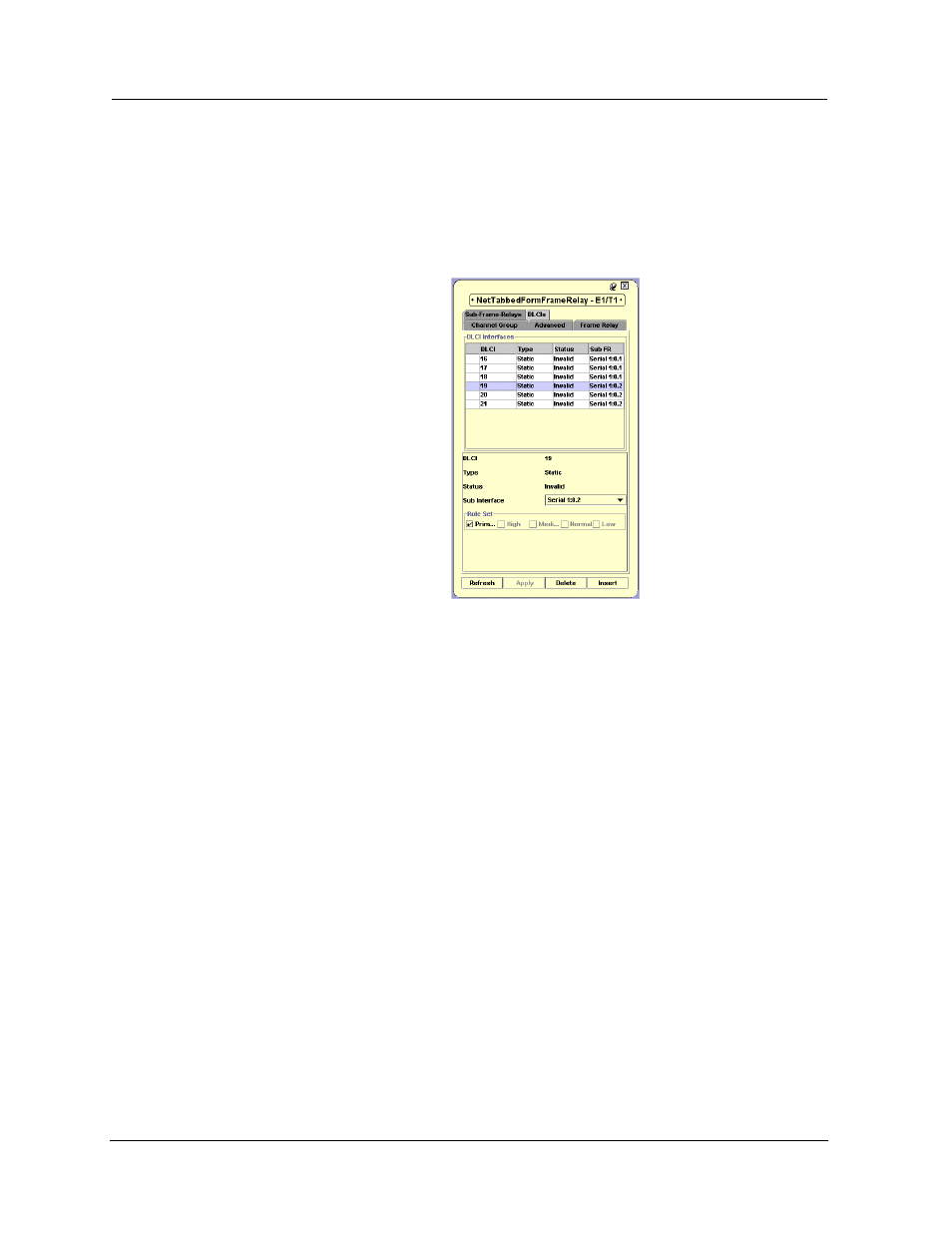

Figure 7-8. Channel Group Dialog Box - DLCIs Tab
The DLCIs tab of the Channel Group dialog box provides a list of available
DLCIs in the upper section of the dialog box. These DLCIs are learned via
LMI. To view configuration information for a specific DLCI, click the DLCI
in the list. Configuration information for the selected DLCI appears in the
bottom of the dialog box.
You can create, modify, and delete DLCIs using the DLCI tab of the
Channel Group dialog box.
To create a new DLCI:
1. Click Insert . A new row appears in the DLCIs list.
2. Enter the parameters for the DLCI using the fields at the bottom of
the dialog box.
3. Click Apply . The DLCI is created.
To modify the parameters of a DLCI:
1. Click the DLCI you want to modify. The configuration parameters
of the selected DLCI appear in the bottom of the dialog box.
2. Modify the parameters you want to change using the fields at the
bottom of the dialog box.
