Chapter 3
20 Avaya C360 Manager User Guide
Viewing Device Information
The Device Information dialog box provides you with high-level
information specific to the Avaya C360 Device.
The General tab of the Device Information dialog box provides detailed
information about the device such as the device’s name, addresses,
contact person, location, type, description, the number of modules in the
device, and the management VLAN ID.
The Advanced tab of the Device Information dialog box provides
information about the device’s STP (Spanning Tree Protocol)
configuration.
Device Information - General Tab
To view the General tab of the Device Information dialog box, select
Configure > Device Information . The Device Information dialog box opens
to the General tab.

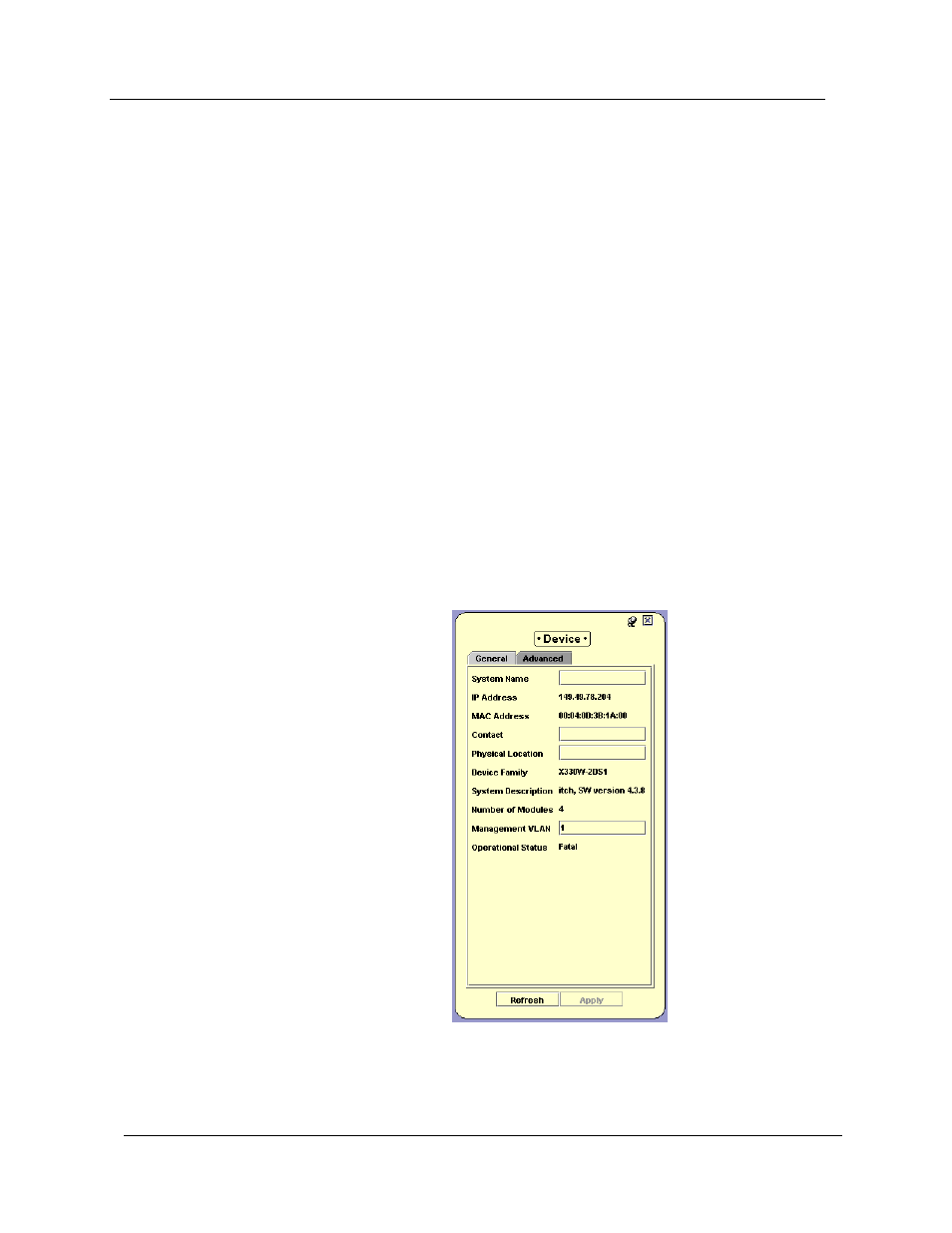

Figure 3-1. Device Information Dialog Box - General Tab
