Chapter 10
150 Avaya C360 Manager User Guide
Viewing the LAG Table
To view the LAG Table:
Click .
Or
Select Configure > LAG . The LAG Information table opens.

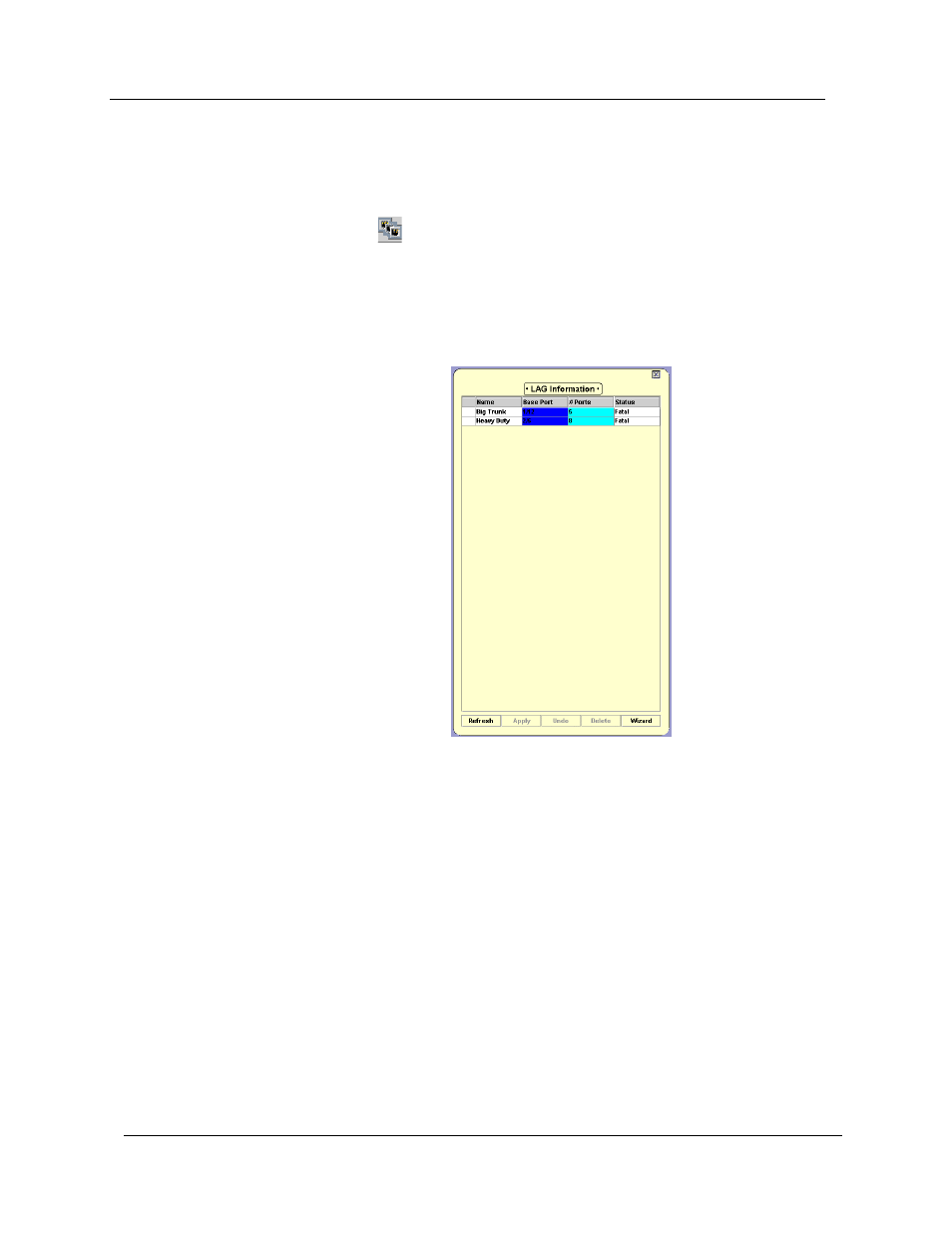

Figure 10-1. LAG Information Dialog Box
Each row of the LAG table represents a valid Link Aggregation Group and
provides the following information:
• Name - The LAG name.
• Base Port - The number of the LAG’s base port.
• # of Ports - The number of ports assigned to the LAG.
• Status - The warning status of the LAG.
When a LAG is selected, the ports in the LAG appear highlighted in the
Chassis and Tree View.
