Chapter 7
94 Avaya C360 Manager User Guide
3. Click Sub-Interfaces . The Sub-Interfaces tab of the Channel Group
dialog box appears.

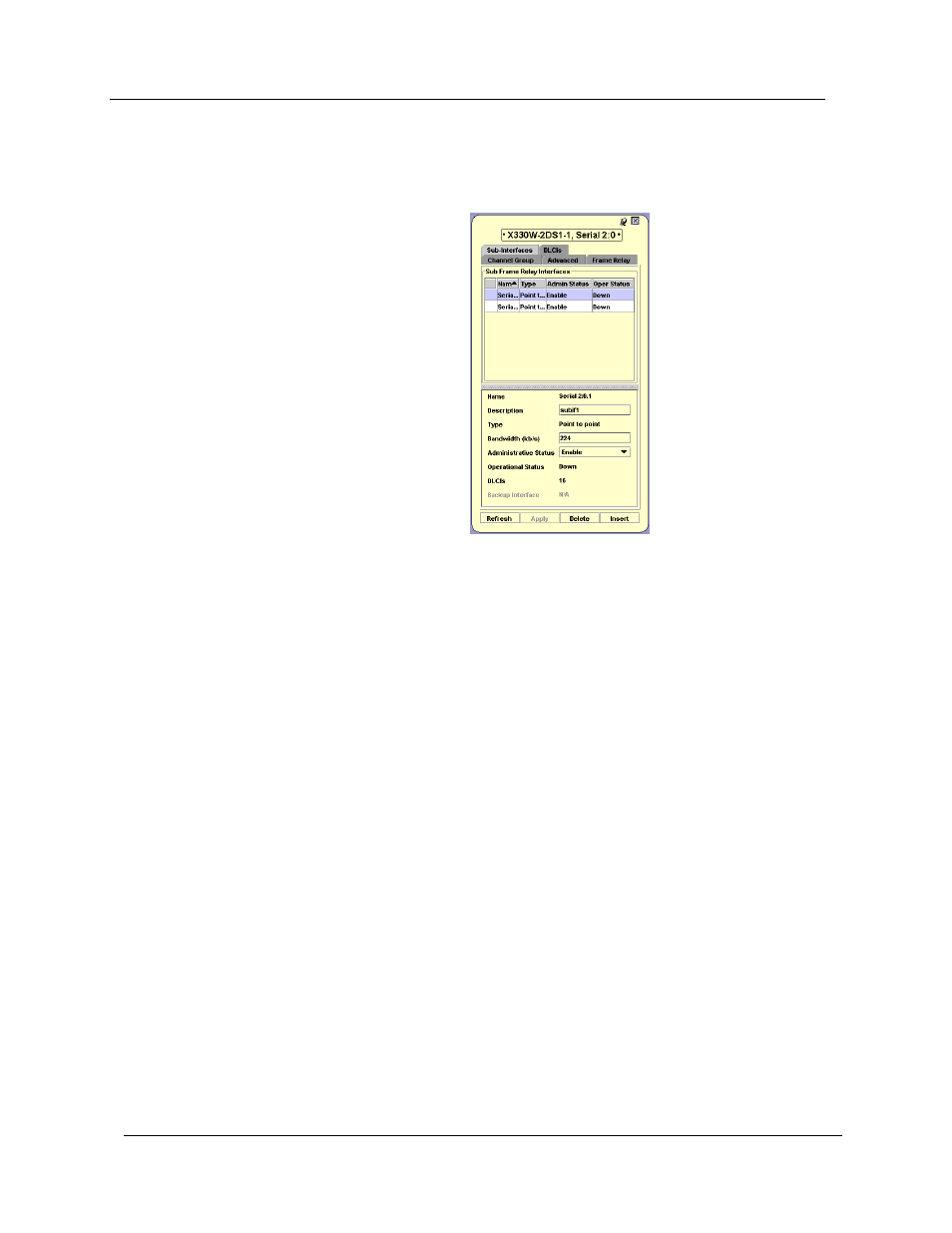

Figure 7-7. Channel Group Dialog Box - Sub-Interfaces Tab
The Sub-Interfaces tab of the Channel Group dialog box provides a list of
Frame Relay sub-interfaces in the upper section of the dialog box. To view
configuration information for a specific Frame Relay sub-interface, click
the sub-interface in the list. Configuration information for the selected
Frame Relay sub-interface appears in the bottom of the dialog box.
You can create, modify, and delete Frame Relay sub-interfaces using the
Sub-Interfaces tab of the Channel Group dialog box.
To create a new Frame Relay sub-interface:
1. Click Insert . A new row appears in the Sub-Frame-Relay Interfaces list.
2. Enter the parameters for the Frame Relay sub-interface using the
fields at the bottom of the dialog box.
3. Click Apply . The sub-interface is created.
To modify the parameters of a Frame Relay sub-interface:
1. Click the Frame Relay sub-interface you want to modify. The
configuration parameters of the selected sub-interface appear in
the bottom of the dialog box.
2. Modify the parameters you want to change using the fields at the
bottom of the dialog box.
3. Click Apply . The sub-interface parameters are modified.
