Port Mirroring
Frames Direction Selection Screen
The Frames Direction Selection screen of the Port Mirroring Wizard
enables you to select the traffic to be copied to the destination port. You
can configure the destination port to receive all traffic going through the
source port, or only the traffic received by the source port.

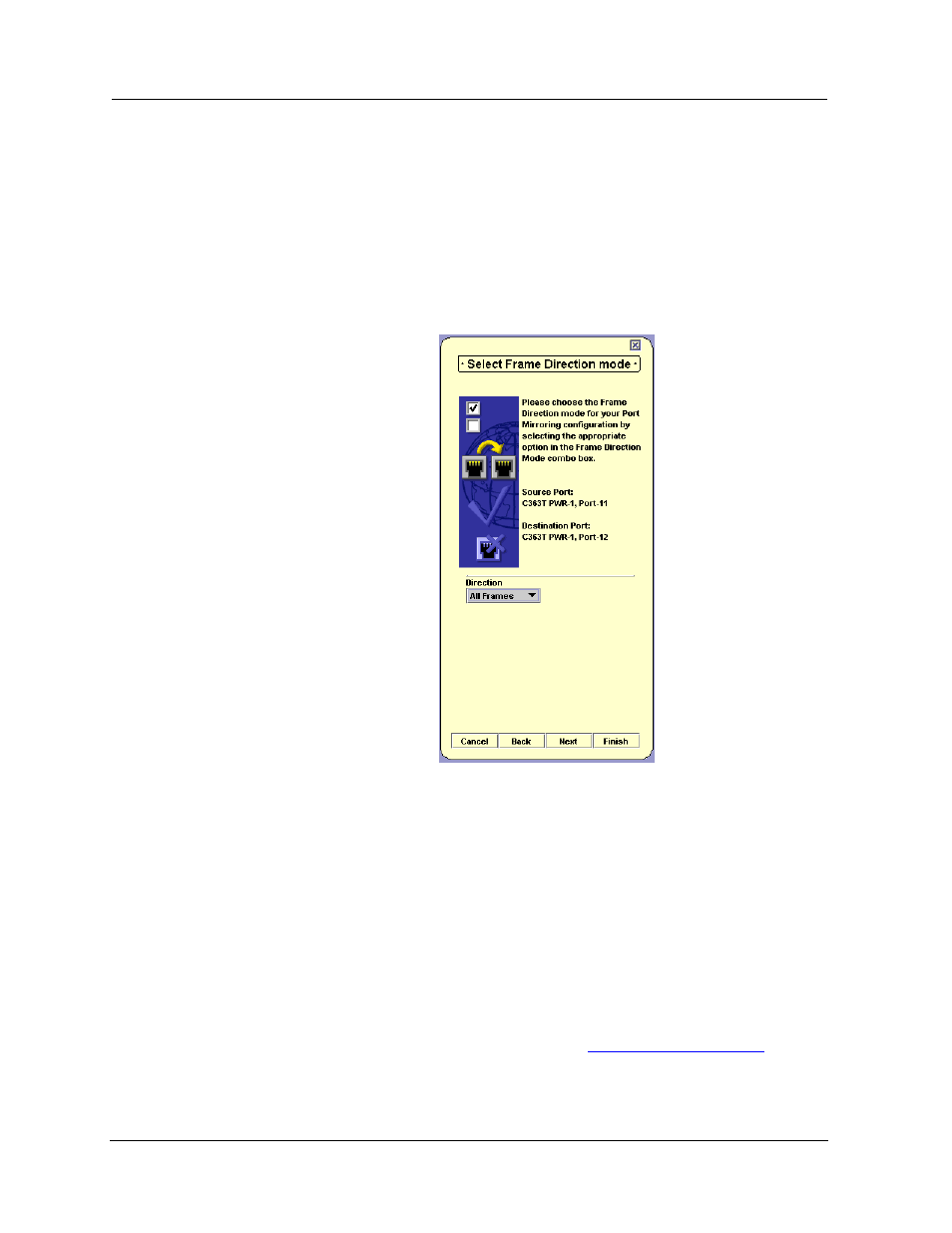

Figure 12-5. Port Mirroring Wizard - Frames Direction Selection
Screen
To configure which frames are copied to the destination port, select an
option from the
Direction
pull-down list box. Possible options are:
•
All Frames
- All traffic going through the source port is copied to
the destination port.
•
Rx Frames
- Traffic received by the source port is copied to the
destination port.
•
Tx Frames
- Traffic transmitted by the source port is copied to the
destination port.
When you have finished selecting the traffic to be copied, click
Next
. The
Port Mirroring Wizard continues with the
.
