Chapter 7
120 Avaya C360 Manager User Guide
DLCIs
The DLCIs tab of the USP dialog box provides information about the
DLCIs in the USP.
To view the DLCIs tab of the USP dialog box:
1. Click a USP symbol in the Chassis View or Tree View. The USP
dialog box opens with the Serial Port tab.
2. Click DLCIs . The DLCIs tab of the USP dialog box appears.

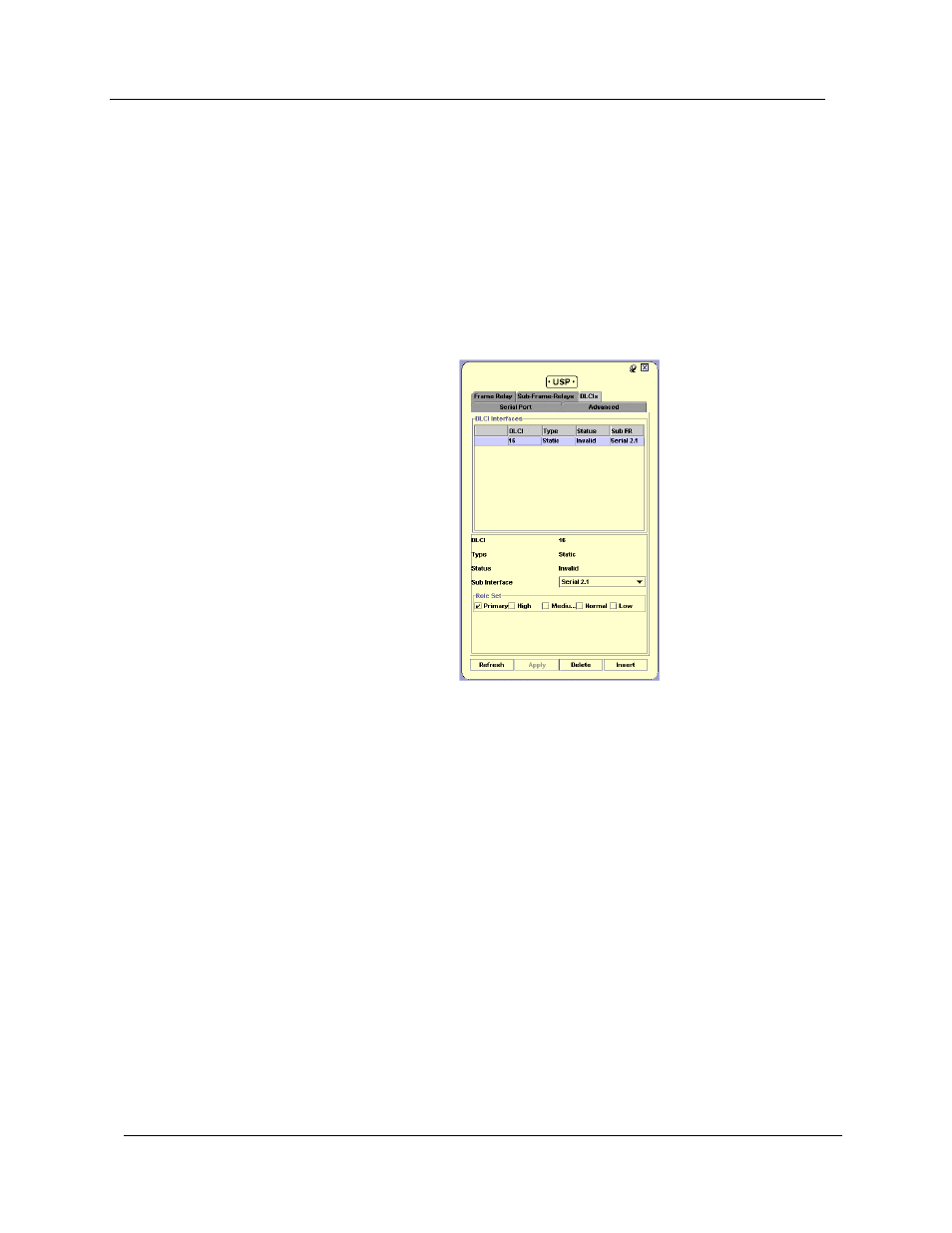

Figure 7-20. USP Dialog Box - DLCIs Tab
The DLCIs tab of the USP dialog box provides a list of available DLCIs in
the upper section of the dialog box. These DLCIs are learned via LMI. To
view configuration information for a specific DLCI, click the DLCI in the
list. Configuration information for the selected DLCI appears in the
bottom of the dialog box.
You can create, modify, and delete DLCIs using the DLCI tab of the USP
dialog box.
To create a new DLCI:
1. Click New . A new row appears in the DLCIs list.
2. Enter the parameters for the DLCI using the fields at the bottom of
the dialog box.
3. Click Apply . The DLCI is created.
