Avaya C360 Manager User Guide 127
WAN Configuration
Select
Backup
Interface
Screen
The Select Backup Interface screen enables you to assign an interface to
back up the primary interface.

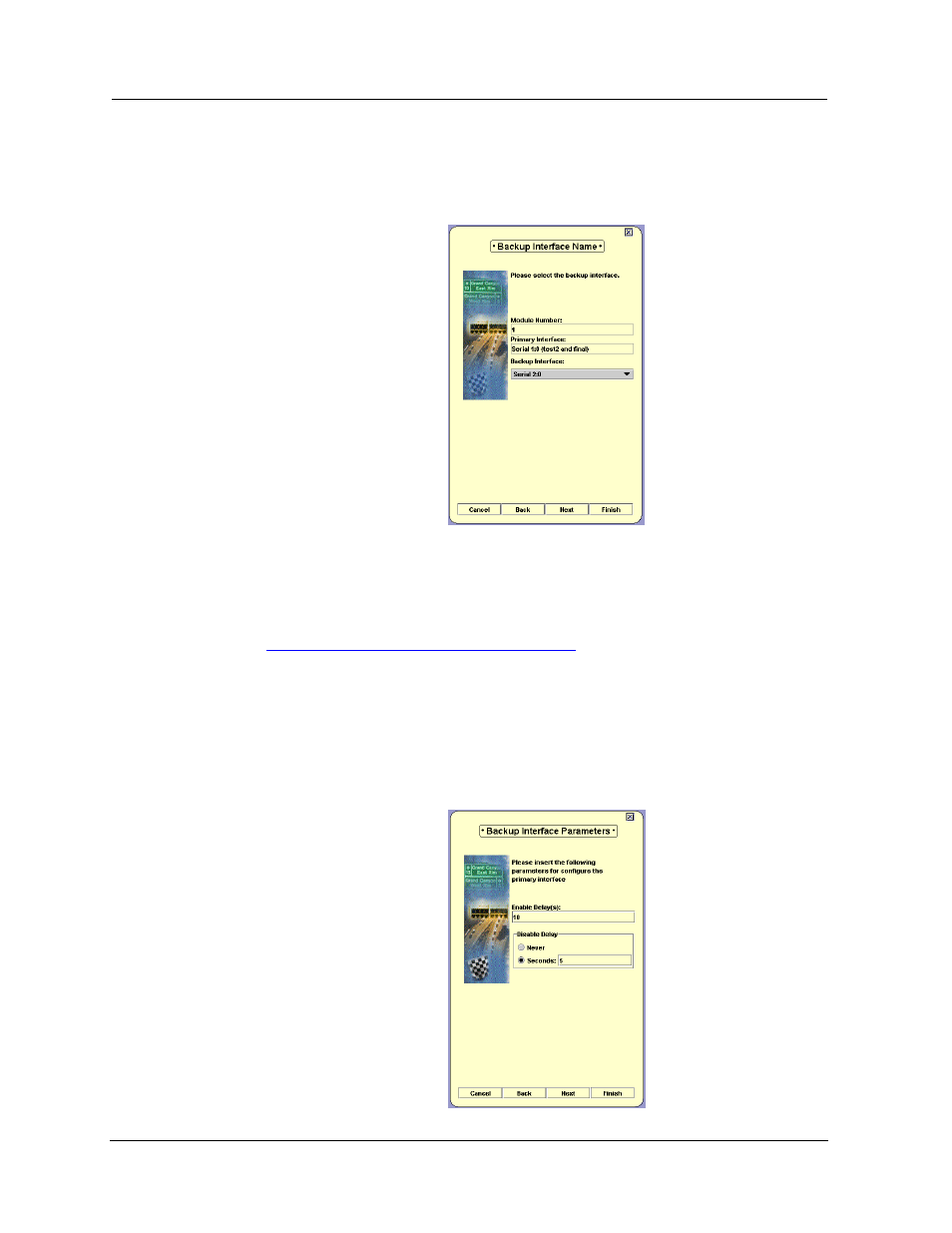

Figure 7-25. Backup Interface Wizard - Select Backup Interface Screen
To select a Backup interface, select an interface name from the Backup
Interface pull-down listbox.
To continue, click Next . The Backup Interface Wizard continues with the
Backup Interface Parameters Screen .
Backup
Interface
Parameters
Screen
The Backup Interface Parameters screen enables you to configure the
conditions under which the Backup interface is activated and deactivated.
Figure 7-26. Backup Interface Wizard -
Backup Interface Parameters Screen
