Avaya C360 Manager User Guide 103
WAN Configuration
Select an encapsulation method for the Channel Group from the
pull-down listbox. Available encapsulation methods include:
• PPP - The Channel Group uses PPP Sessions.
• FrameRelay - The Channel Group uses frame relay.
To continue, click Next . The Channel Group Wizard continues with the
Select E1/T1 Port Screen .
Select E1/T1
Port Screen
The Select E1/T1 Port screen enables you to select the E1/T1 port for your
channel group.

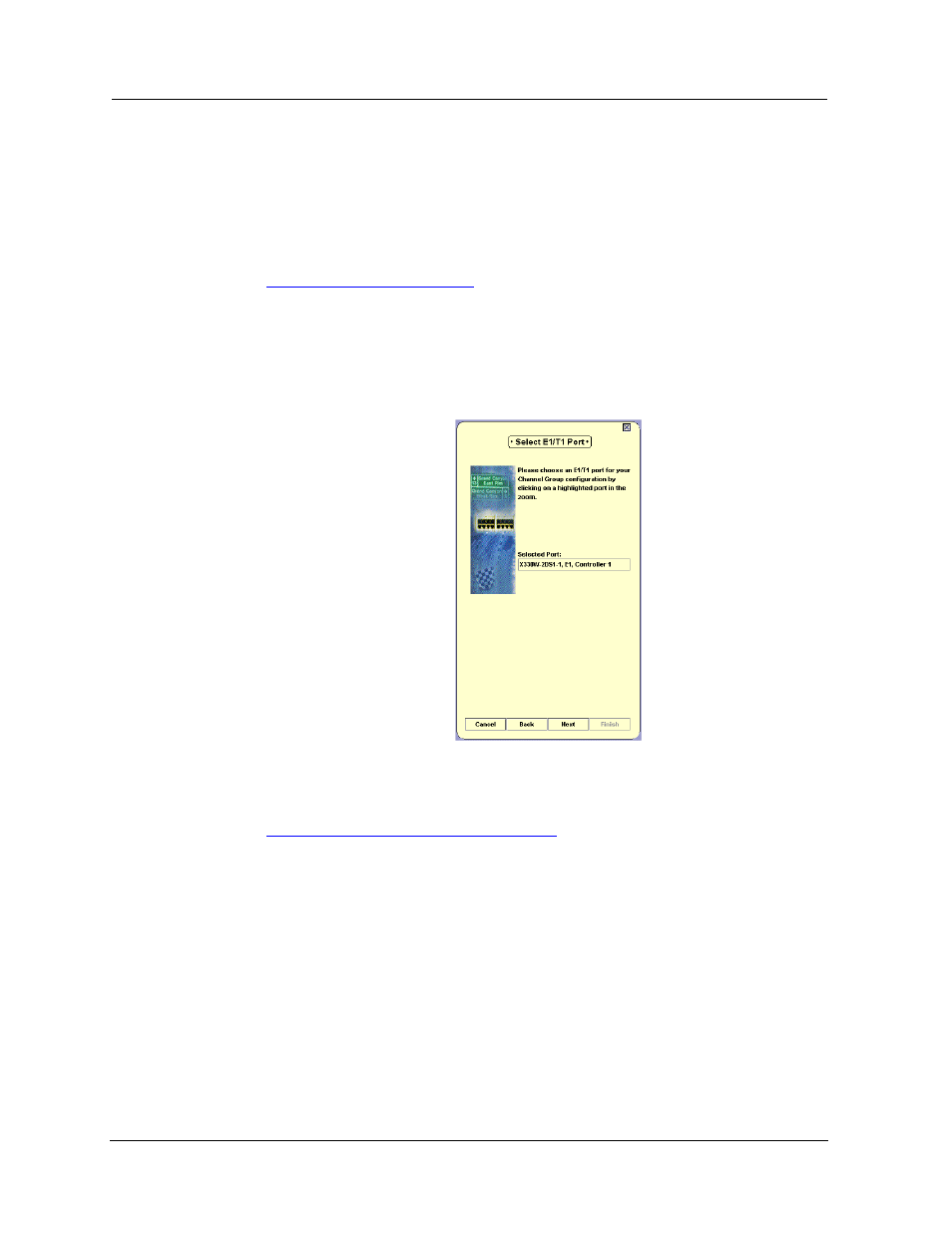

Figure 7-12. Channel Group Wizard - Select E1/T1 Port Screen
To select an E1/T1 port for the channel group, click an E1/T1 port in the
Chassis View. The port designation appears in the Selected Port field. To
continue, click
Next . The Channel Group Wizard continues with the
Select Channels and Speed Screen .
