Avaya SMON C360 - Manual (Page 214)

Chapter 16
200 Avaya C360 Manager User Guide
Configuring 802.1x Port Security
To configure 802.1x port security for a selected port:
1. Click the port symbol in the Chassis View.
Or
Click the port’s icon in the Tree View. The Port Configuration
dialog box opens to the General tab.
2. Click 802.1x . The 802.1x tab of the Port Configuration dialog box
appears.

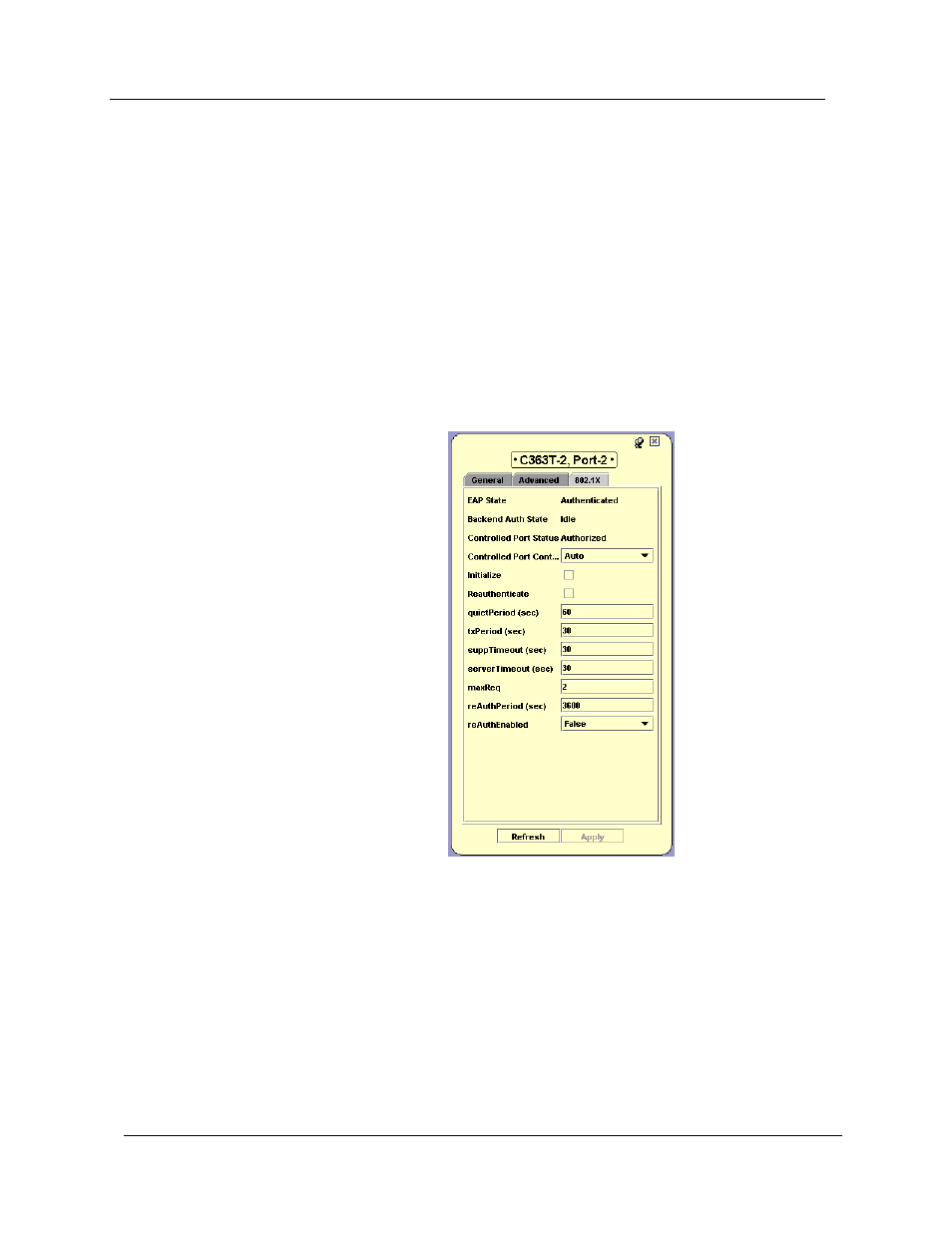

Figure 16-1. Port Configuration Dialog Box - 802.1x Tab
3. Configure the port’s 802.1x port security configuration using the
fields in the 802.1x tab of the Port Configuration dialog box.
