Avaya C360 Manager User Guide 153
Link Aggregation Groups
Base Port Selection Screen
The Base Port Selection screen of the LAG Wizard helps you select a base
port for the LAG. The attributes of the base port (port speed, port mode,
etc.) are applied to the other member ports of the LAG. Ports which can
be selected as base ports appear white in the Chassis View.
* Note: Ports that participate in a Port Redundancy cannot be assigned
to a LAG.

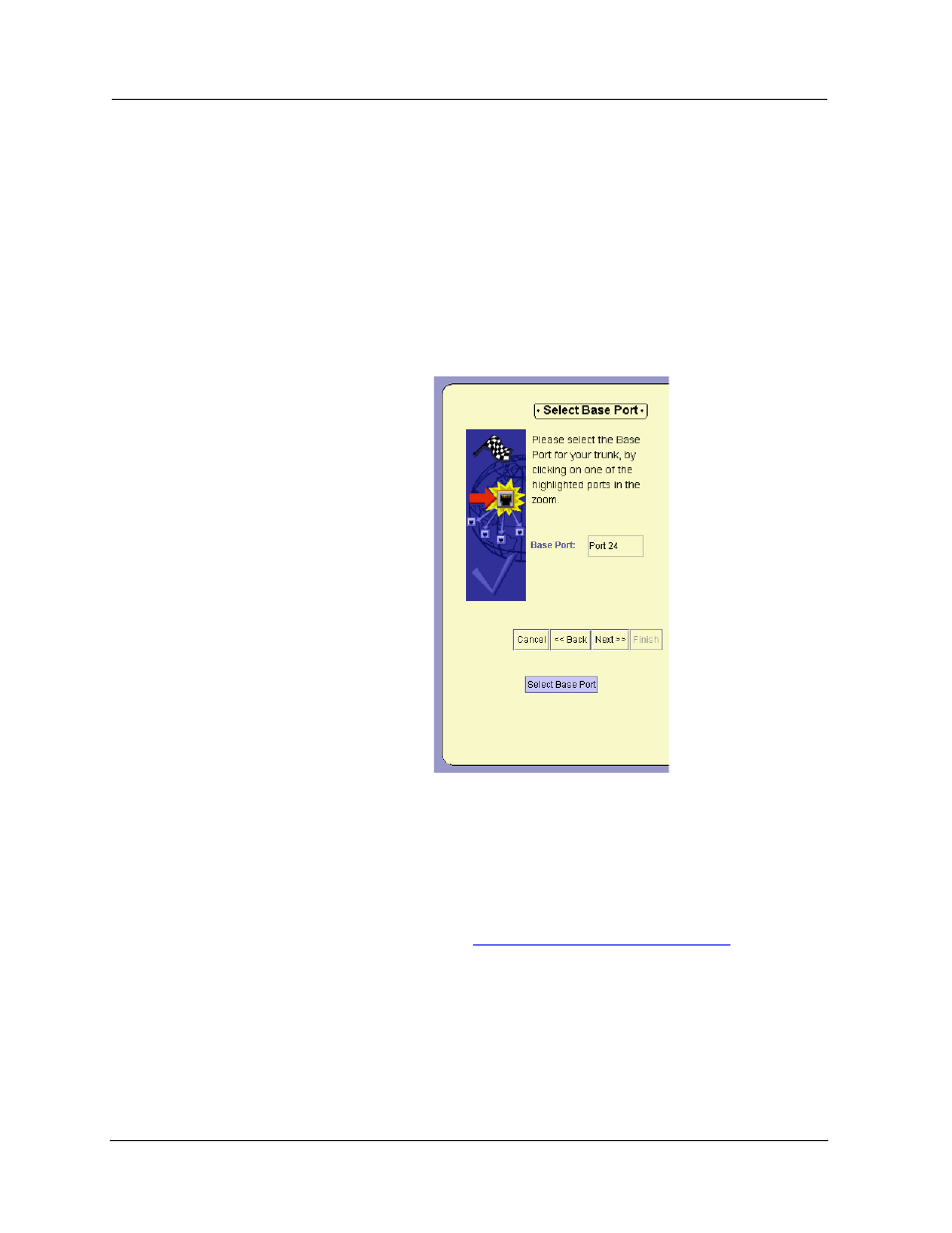

Figure 10-3. LAG Wizard - Base Port Selection Screen
To select a base port for the LAG, click a port in the Chassis View. The
selected port is listed in the
Base Port field of the wizard and appears blue
in the Chassis View and Tree View.
When you have selected the base port for the LAG, click Next . The LAG
Wizard continues with the Member Port Selection Screen .
