Triton X-SCALE/X2 Configuration Manual - Manual (Page 45)

3 5
D
IAGNOSTICS
I
NJECT
N
EW
C
ASSETTE
ID (NMD
ONLY
)
A CCESS I NSTRUCTIONS :
1. From the D
IAGNOSTICS
screen, select the C
ASH
D
ISPENSER
option by pressing <1> on the keypad.
2. From the C ASH D ISPENSER screen, select the I NJECT N EW C ASSETTE ID option by pressing <4> on the
keypad.
D ESCRIPTION :
The NMD dispensing mechanisms use cassettes that possess onboard memory. This memory enables a
cassette to store its own identification (ID) code.
The I NJECT N EW C ASSETTE ID function has no direct correlation to the physical position of the cassette within
the unit. In most instances, the cassette identified as “A” will be placed in the top feed channel, “B” in the
second, and continuing. This is not a requirement since the ID code allows the dispensing mechanism (and
the dispensers central controller) to locate the cassette wherever it’s been placed in the dispenser.

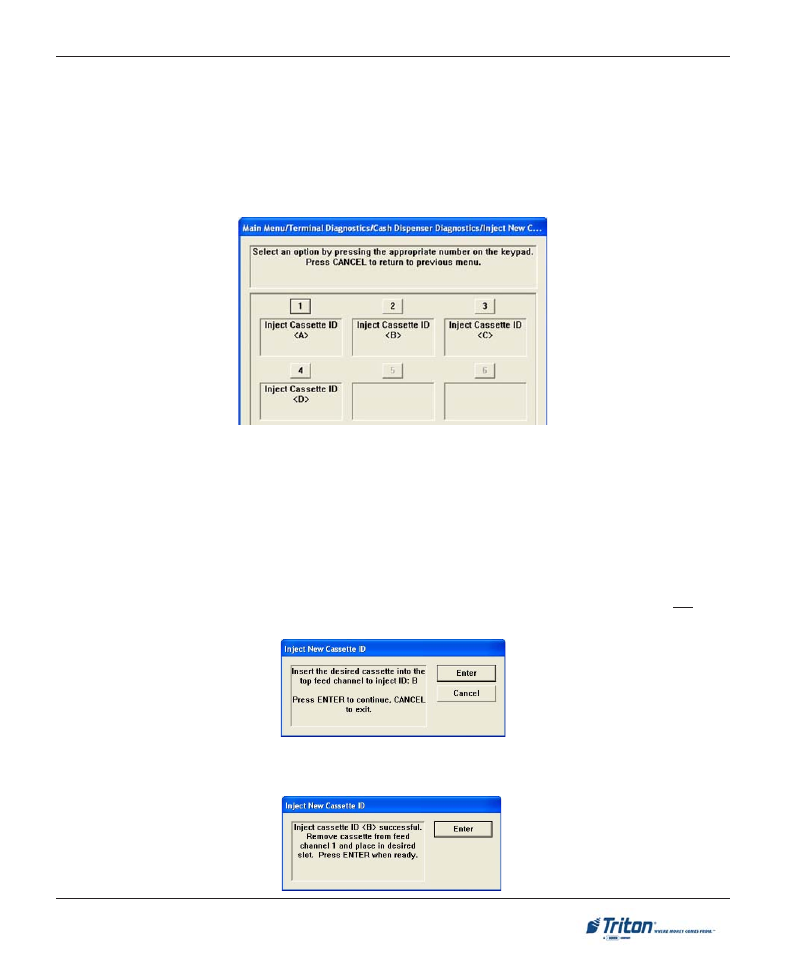

This function allows injecting a new ID into a cassette. Insert the cassette you want to ID into the top feed
channel. Press the button corresponding to the identity you want the cassette to have: ‘A’, ‘B’, ‘C’, or ‘D’.
When the ID has successfully been injected, a message prompt will appear. If the operation fails, an error
message will appear.
After successfully completing the ID injection, you can place the cassette in its normal operating
position.
