2. A
LL
C
ASSETTES
L
OCKED
/U
NLOCKED
(NMD
S ONLY
). The NMDs are designed to physically lock the
cassettes for normal operation. If you need to remove a cassette for servicing, troubleshooting, etc,
the cassettes for the NMDs must first be Unlocked (unchecked). This option Locks (checked) or
Unlocks (unchecked) the cassettes.
Note: For normal Cassette Close procedures, the cassettes will automatically Unlock and Lock.
! Press <2> to toggle between Locked (checked) or Unlocked (unchecked).
3. R
ETRACT
C
ASH
(NMD
S ONLY

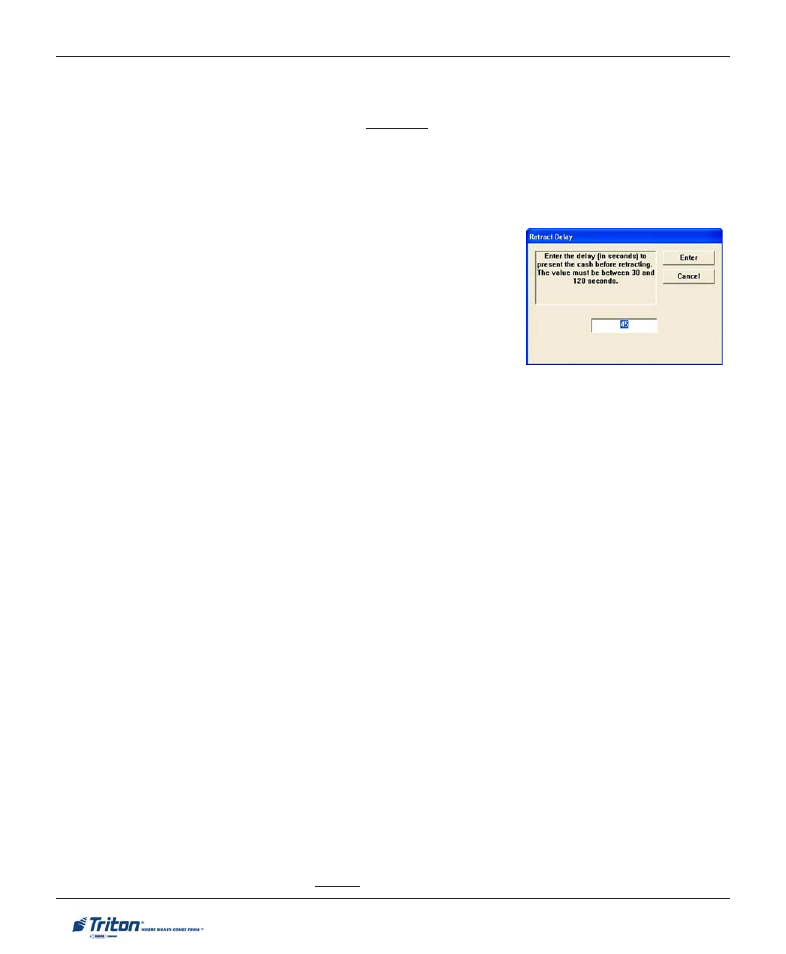

). This option enables/disables
automatic retraction of the note carriage which transports notes
to the bill chute. When this option is enabled (checked), the
R
ETRACT
D
ELAY
option <4> is activated allowing you to specify
the length of the delay the dispenser will wait before retracting
the note transporter.
5. A
CTIVE
C
ASSETTE
. This option selects the cassette for setup/changing note configuration parameters
or other media.
! Press <5> repeatedly to cycle through the available cassette(s).
*3*. E
NABLE
E
XTENSION
R
EJECTS
(RT2000). On an RT2000 terminal,
E
NABLE
E
XTENSION
R
EJECTS
O
N
:
The terminal will stay in service and attempt to purge the extension before the next dispense for both full
and partial dispenses caused by a trailing edge timeout that caused the machine to stop prior to delivering
all of the requested notes.
E
NABLE
E
XTENSION
R
EJECTS
O
FF
:
Terminal will go out of service with Error Code 97 (Extension exit trailing edge timeout) for both full and
partial dispenses caused by a trailing edge timeout that caused the machine to stop prior to delivering all of
the requested notes.
! Press <3> to toggle between enabled (checked) or disabled (unchecked).
! (for R
ETRACT
C
ASH
) If enabled, press <4> and enter the delay time. It can be set from 30 to 120
seconds. Press
NTER
> when completed.
The TDM dispensers contain a bill extension unit. This option will enable (checked) or disable
(unchecked) the option of rejecting bills in the extension.
6. C
ASSETTE
I
N
S
ERVICE
. Some dispensers (multi-cassette) allow individual cassettes to be placed “Out
of Service” (unchecked). This means the selected cassette(s) will not be used by the dispenser for
withdrawal requests. This capability can be used, for example, to remove a low or empty cassette
from service, while still allowing the dispenser to continue operation using the remaining cassette(s).
Note: The NMD-50/100 cassettes MUST be Locked and IN-Service (checked) for normal operation.
