A CCESS I NSTRUCTIONS :
1. From the M
AIN
M
ENU

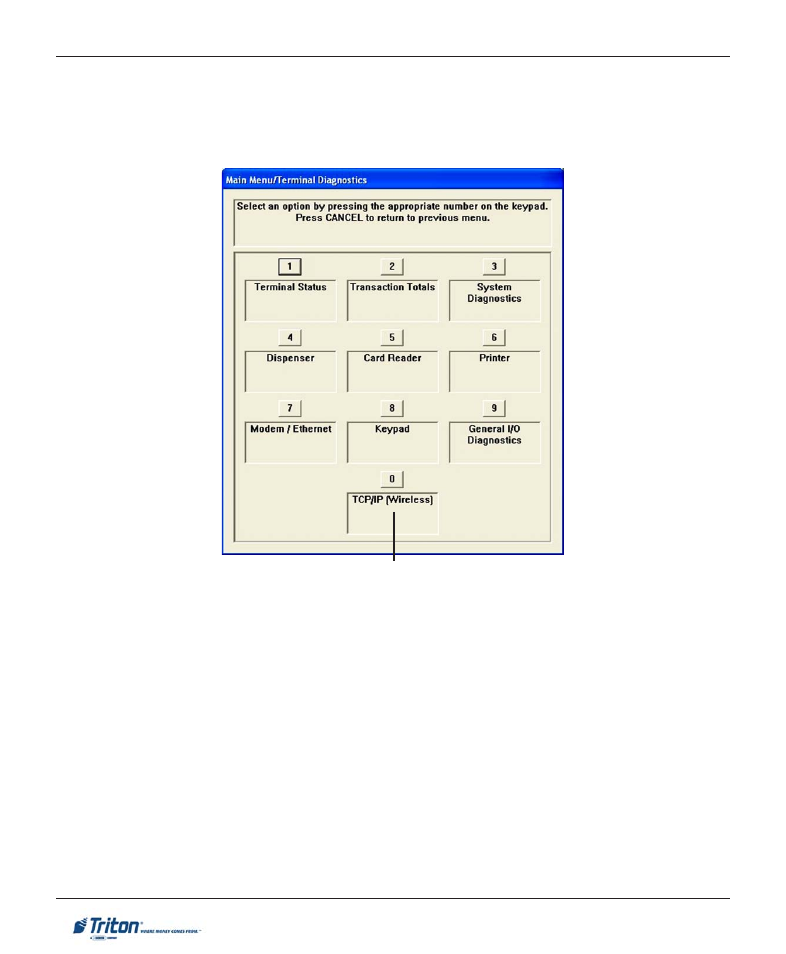

screen, select the D
IAGNOSTICS
option by pressing <2> on the keypad.
D
IAGNOSTICS
D ESCRIPTION :
The D
IAGNOSTICS
option allows the terminal operator to perform the following functions:
1. T
ERMINAL
S
TATUS
. Displays current terminal status, configuration summary, and parameter save/
restore functions.
2. T RANSACTION T OTALS . Displays terminal transaction totals since the last Day Close.
3. S
YSTEM
D
IAGNOSTICS
. Displays a dialog that allows the terminal operating system properties to be
viewed.
4. D ISPENSER . Allows user to check dispenser status, perform diagnostics, and configure cassette
parameters.
5. C ARD R EADER . Displays card reader status and test functions.
* Wireless Option if used.
