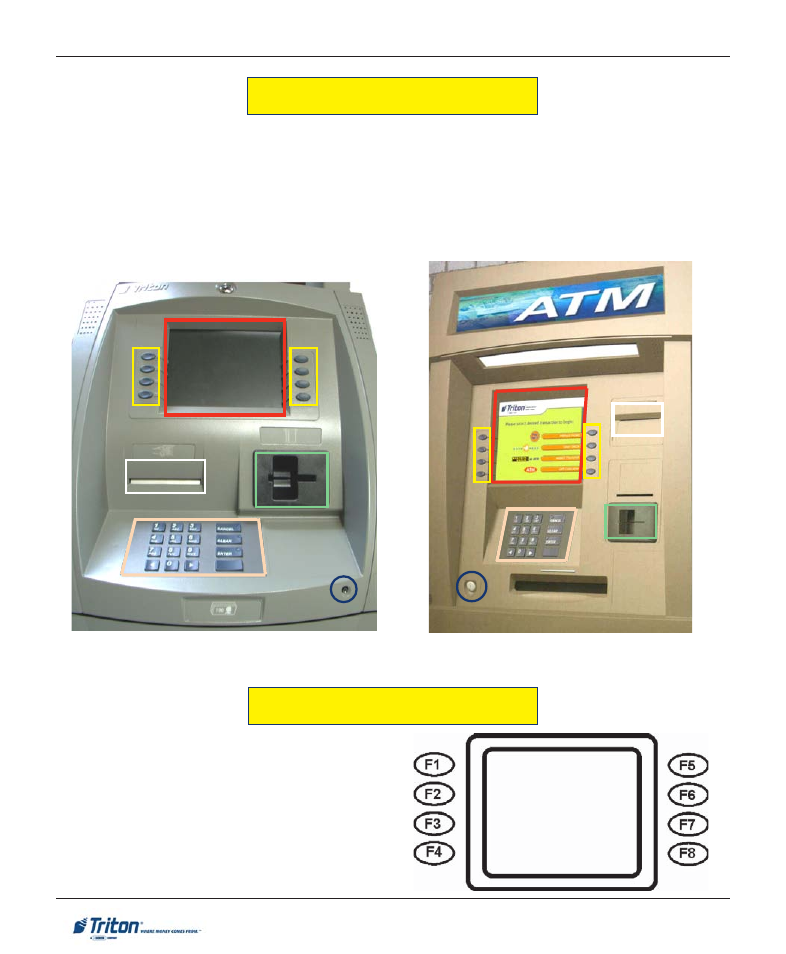

C ONTROL P ANEL L AYOUT
The user interface of the terminal consists of the LCD screen, receipt chute, card reader, speaker, headphone
jack (visually impaired), and 24 keys on three keypads. The Function keys are arranged in two four-key
groups, one group on either side of the LCD display. The main keypad consists of 10 alphanumeric keys,
two arrow keys and four large control keys, all located in a 16-key group beneath the LCD screen.
The main keypad and control keys have an integral raised Braille symbol to conform to the requirements of
the Americans with Disabilities Act.
F
UNCTION
K
EYS
The eight (8) keys, arranged in two four-key groups,
are called screen function keys. A screen function
key is only active when a corresponding function or
menu option is present next to that key. The Func-
tion keys are designated F1 through F8.
Lobby unit (example) Through-the-wall unit (example)
