MC_Rack Features
93
When using the Replayer for replaying triggered data, make sure all other virtual instruments
in your rack are set up according to the data type. It is not possible to display triggered data
streams continuously (as there are "gaps" between the sweeps where no data was recorded).
The maximum x-axis range is limited by the sweep length. See the File Info of the Replayer to
obtain all necessary information on the data file, such as the sweep length.
Assigning a trigger event to a virtual instrument
You can trigger a virtual instrument by any Trigger data stream. The trigger event is referred
to as a time point of 0.

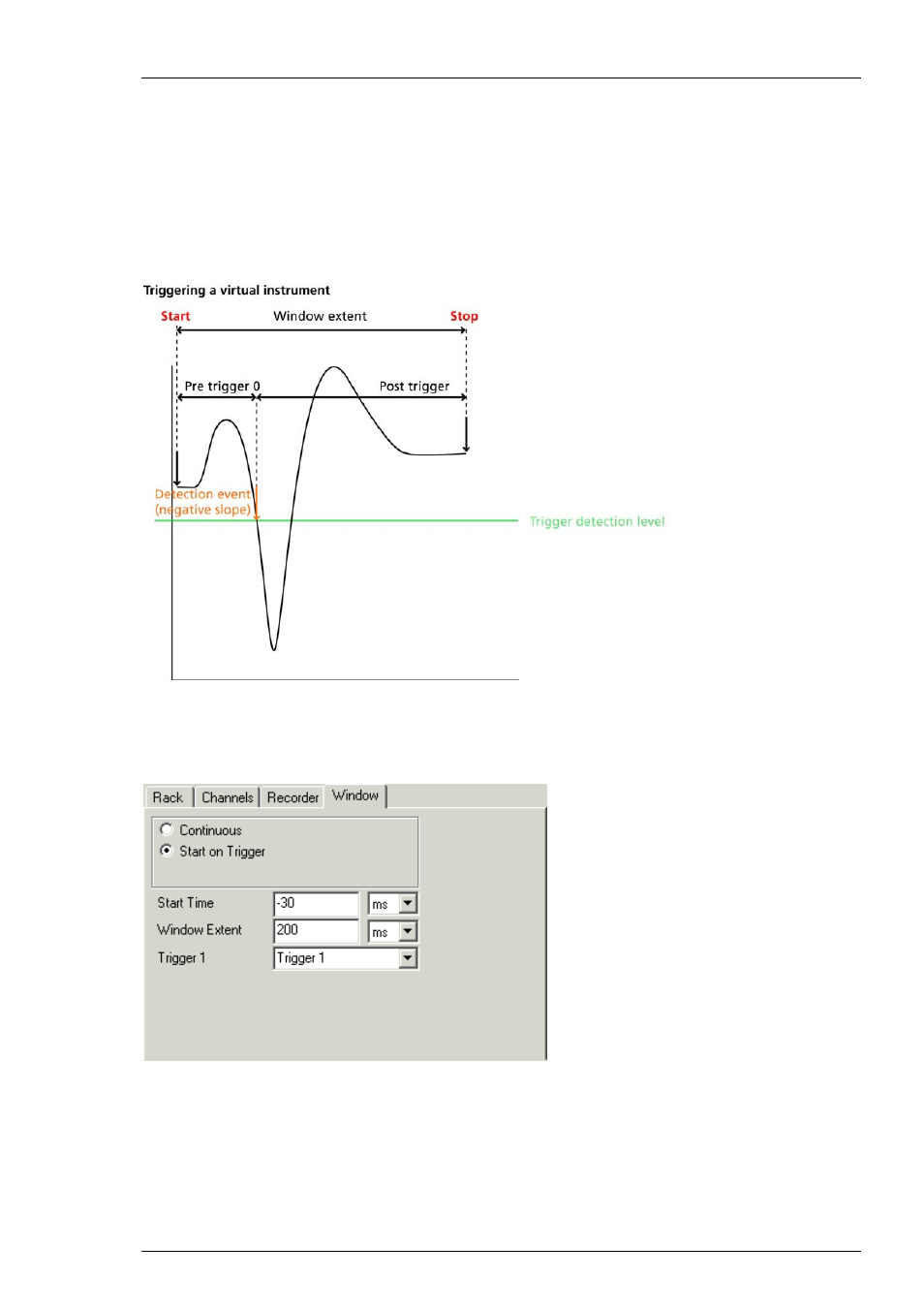

In the following example, the virtual instrument starts to process the data 30 ms before the
trigger and stops after a total time of 200 ms (170 ms post-trigger time). This results in 200 ms
sweeps. Please read chapter "Triggering MC_Rack on a stimulus" for more information about
"Window Extent" settings.
