Step by Step Tutorial
31
Availability of Additional Analog Channels in USB-ME256 (and USB-ME128 respectively)

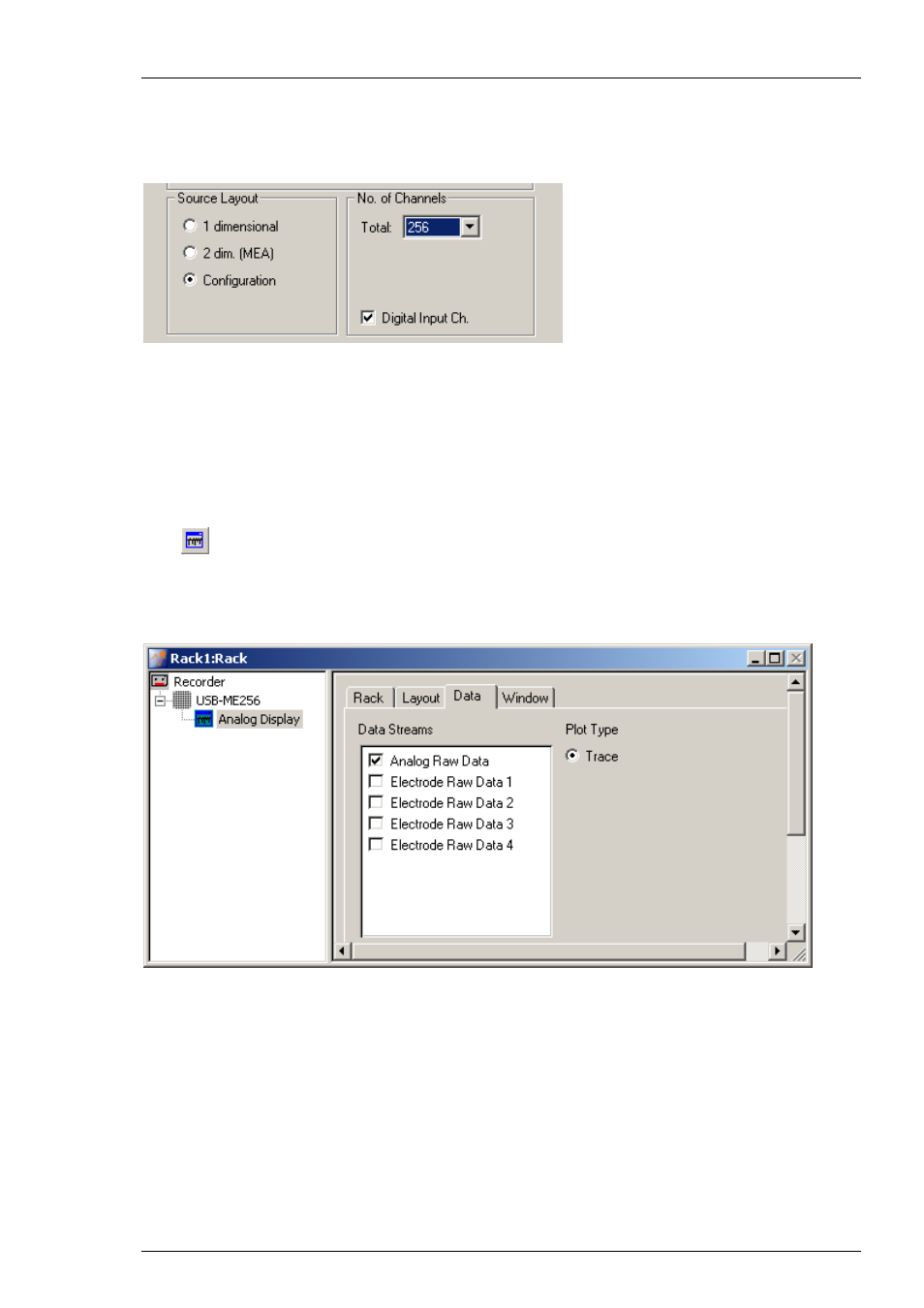

Depending on the selected "Source Layout", it is possible that no, or not all additional analog
channels are available. To have full access to the analog channels, please use the "Configuration"
option of the data source setup. If other data source layouts are selected, limitations apply:
Source Layout 1 dimensional: No additional analog channels are available.
Source Layout 2 dim. (MEA): Three additional analog channels are available A1, A2, A3.
Source Layout Configuration: All four additional analog channels are available A1, A2, A3 and A4.
Visualizing the Additional Analog Channels
Click to add a data display. On the left window pane of the dialog the data display appears,
labeled ”Display 1”. Double click on "Display 1" to rename the display for discrimination of the
analog and electrode displays.
In the "Data" tab, select "Analog Raw Data" only.
