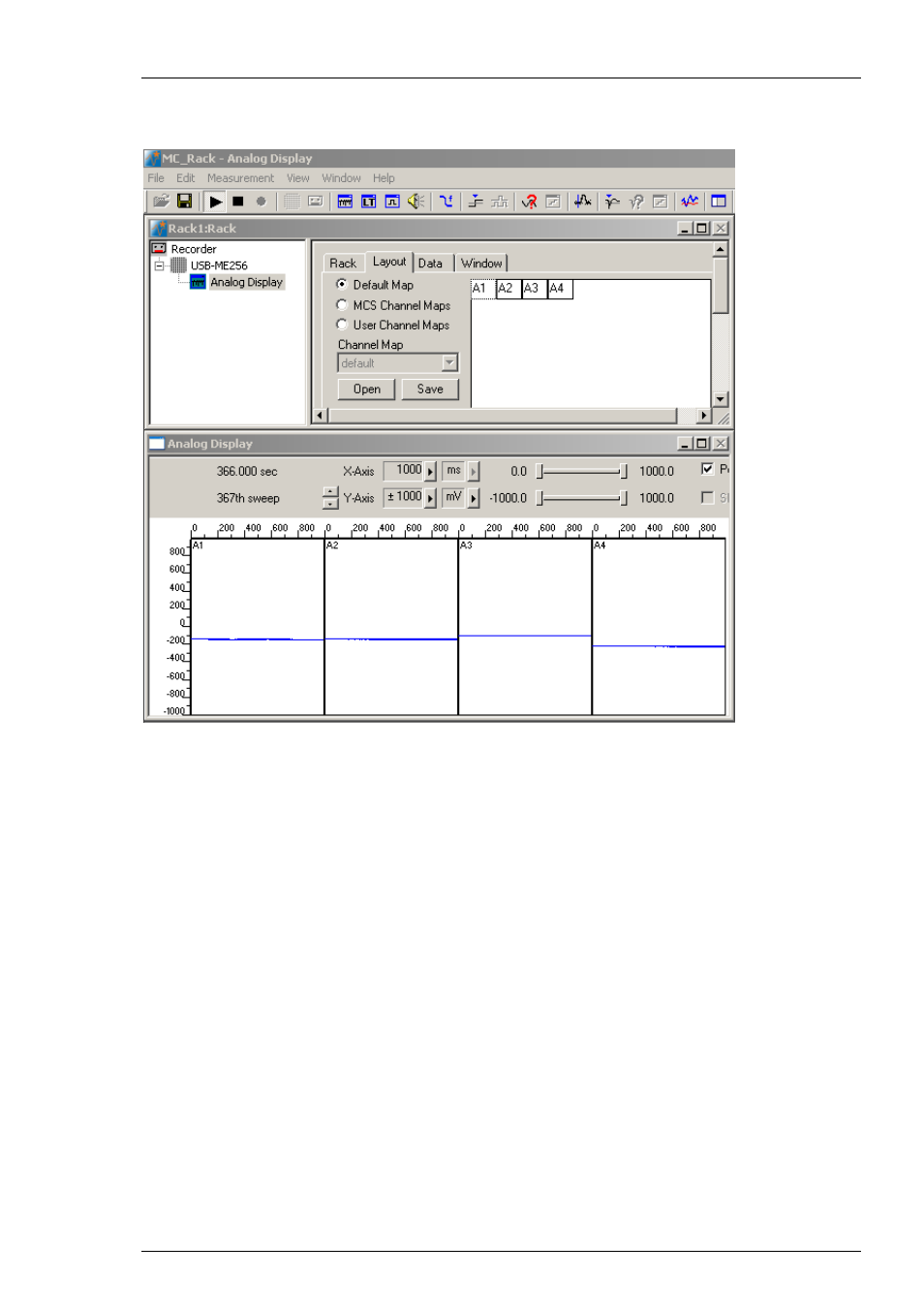

In the "Layout" tab, select the "Default Map". The additional analog channels A1 to A4
are displayed. It is also possible to use a custom layout (for example 2x2 electrodes). Please
see chapter “Monitoring Activity” for more information about designing channel maps.
Additional Analog Channels with Different Instances of MC_Rack
If you use the Advanced Configuration to run more than one instance of MC_Rack at once,
the same four additional analog channels A1 to A4 can be displayed in any of these instances.
3.2.4 Adding a Data Source
In MC_Rack, the input data streams for the virtual rack can come from different data sources:
From the data acquisition board MC_Card or from the Replayer, that is, from previously
recorded data (*.mcd) files, or from USB based data acquisition systems like USB-ME256,
USB-MEA256, USB-ME16-FAI or MEA2100-System.
Here, we want to acquire new data and choose, for example the MC_Card as data source.
