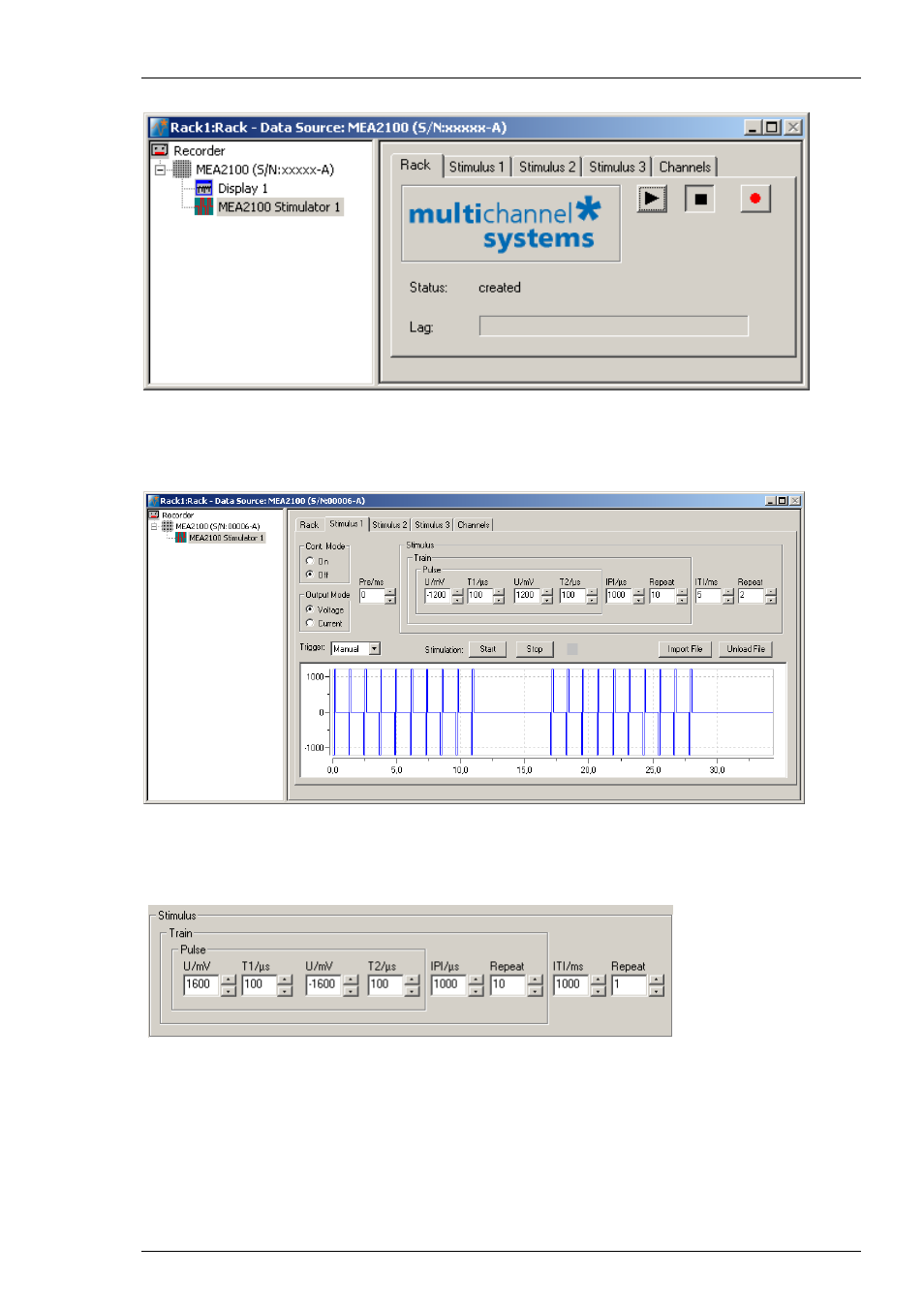

The following dialog appears.
Select the tab of any of the three stimulation channels (Stimulus 1, 2 or 3). In the "Stimulus" tab
page, you can define the stimulation pulse and select how the stimulation is started and stopped.
Click “Stimulus 1” tab page, for example.
Defining the stimulation pulse
In "Output Mode" you can choose whether you want to stimulate in voltage or current mode.
To set up the stimulus pulse or pulse train, please use the eight provided up down boxes.
The individual stimulation pulse is defined in the "Pulse" window. Set up a monophasic pulse by
selecting the voltage / current in mV/μA and the duration time T1 in μs. For setting up a biphasic
pulse you have to select the stimulation strength and time also for the second phase. The shape of
the pulse is displayed immediately in the window below. Once started, a programmed paradigm
will run to its’ end, or till it is manually terminated.
