Data Source Configuration

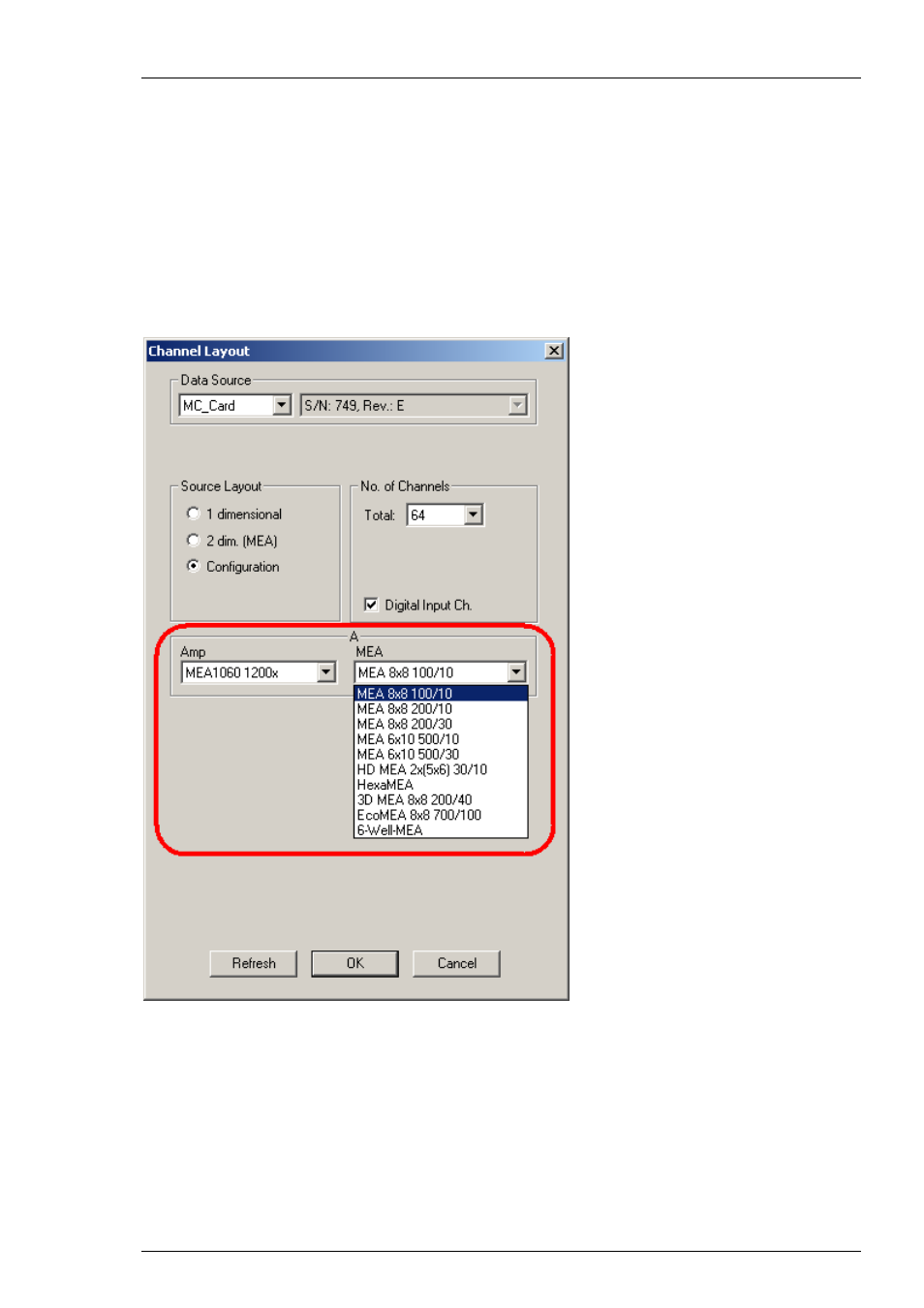

Click "Configuration".
Configuration is an option that can also be used with MC_Card data acquisition (64 or 128
channels), but is recommended for the USB based data acquisition systems USB-ME64 / USB-
ME/128 / USB-ME256 or MEA2100-System. When selecting the configuration option, it is first
necessary to adjust the number of channels available. After that you can select the amplifier(s)
and MEA(s) in use from a drop down menu. To configure the MEA layout, please use the right
drop down menu "MEA". To configure the amplifier, please use the left drop down menu "Amp"
(MEA1060 without blanking circuit, gain factor 1200, and MEA1060BC with blanking circuit, gain
factor 1100 for MEA-Systems, and FA64I/S, FA32I/S for ME-Systems, MEA2100-H60 or MEA2100-
H120 for MEA2100-System).
