Step by Step Tutorial
11
MEA120-System

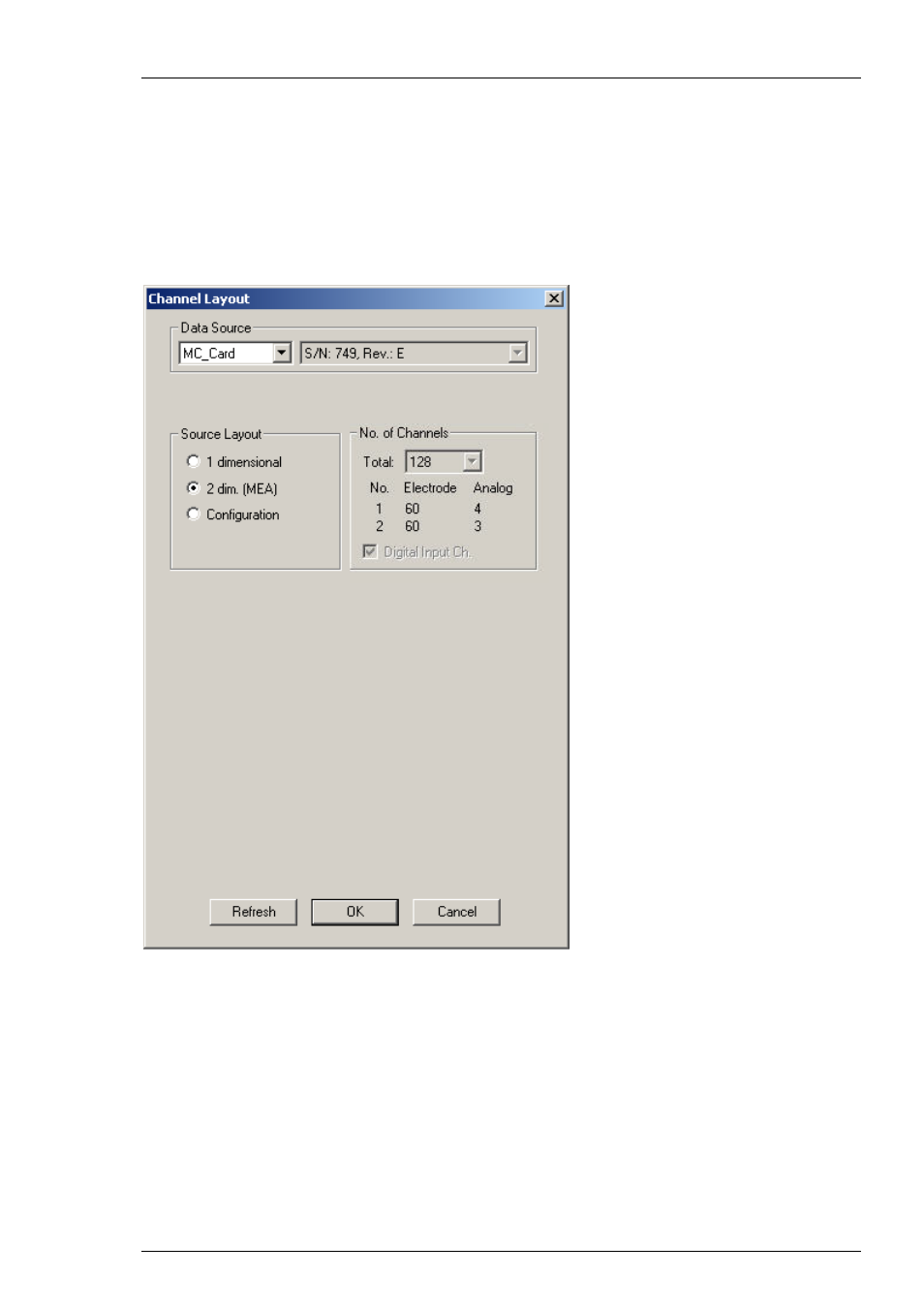

Select 2 dimensional ( MEA) if you are performing extracellular recordings from microelectrode
arrays (MEA) with a MEA120-System with 120 electrode channels. The number and layout of
channels is pre-configured and cannot be altered. The MC_Card supports seven additional analog
channels, but the BNC connectors on the data acquisition computer support only 3 additional
analog channels (A1, A2, A3). You have an additional 16-bit digital channel available. The
standard BNC connectors for the digital channel on the data acquisition computer support only
three digital input bits (0, 1, 2). A digital IN/OUT extension is available that supports all 16 digital
in-and output bits.
