Step by Step Tutorial
61

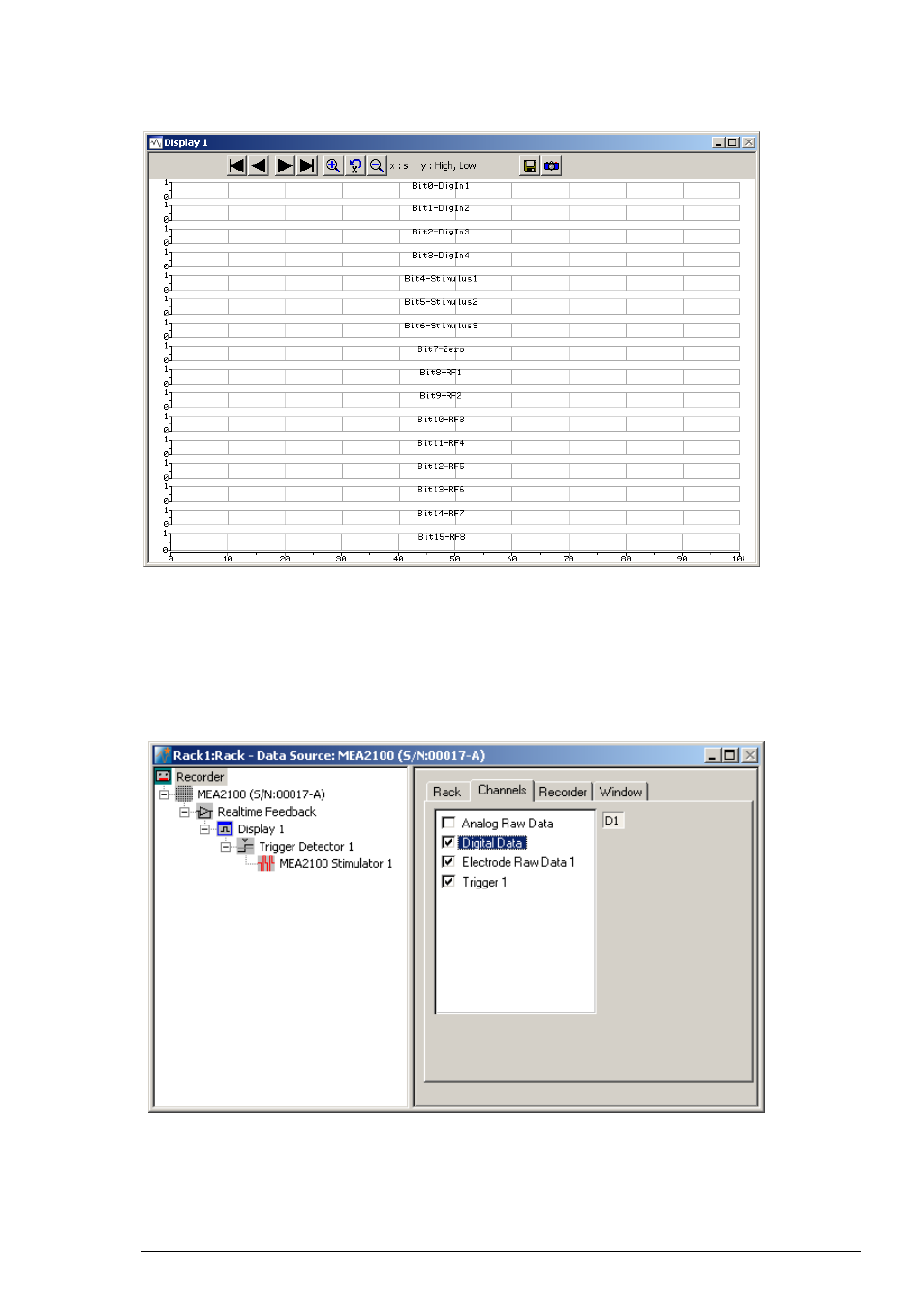

To monitor the digital data stream you can use the “Digital Display” tool. If a MEA2100 device
is connected, the input bits will be labeled according to their function in the digital display.
If a MEA2100-32 device is connected, the “Real-time feedback” is not available, respectively
the real-time feedback specification 1 to 8 are not available. Therefore the input bits are used
for the digital inputs, bit 0 to bit 12 to digIn 1 to 13. The stimulation channels are connected
to the last three bits, bit 13 to stimulus 1, bit 14 to stimulus 2 and bit 15 to stimulus 3.
The channels are labeled according to their function in the digital display.
To record the digital data stream in the data file, please enable the respective check box
in the “Channels" tab of the Recorder tool.
.
