MC_Rack Features
155

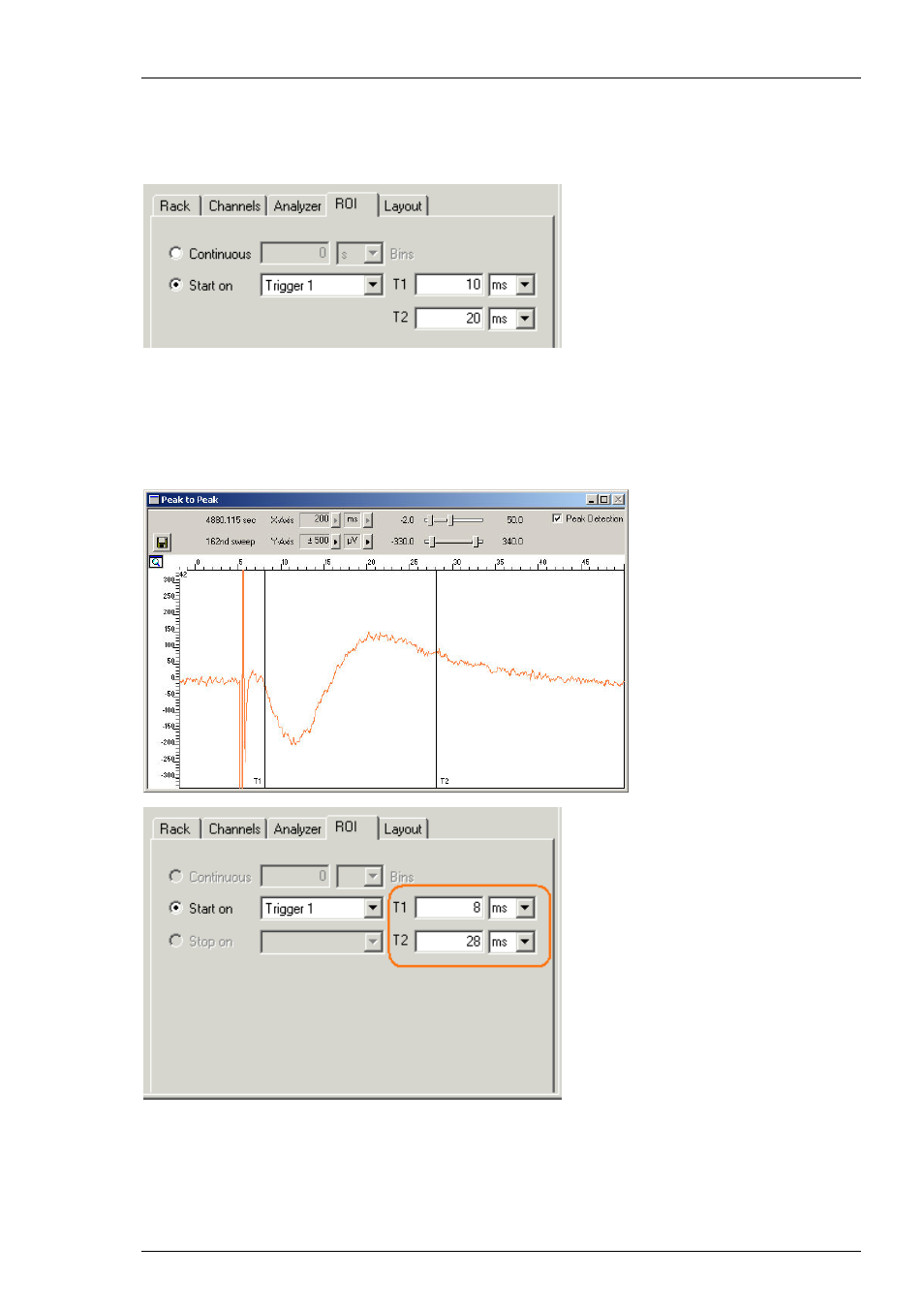

1. Set up a rack with a Trigger Detector and an Analyzer.
2. Click the ROI tab of the Analyzer.
3. Select the option Start on Trigger and choose the appropriate trigger from the drop-down list.
The Analyzer display appears. You can change the layout of the Analyzer display in the same way
as that of a standard display.
4. You can define the region of interest either with the two bars T1 and T2 directly in the display
(not available for ROIs of more than 2 s) or by entering the appropriate values into the text boxes
in the ROI dialog box.
