MC_Rack Features
83
4.2.2 Defining Hardware Settings
Before you start building a rack, configure first the software according to your hardware and
amplifier. The following example is for MC_Card and MEA1060 amplifier.

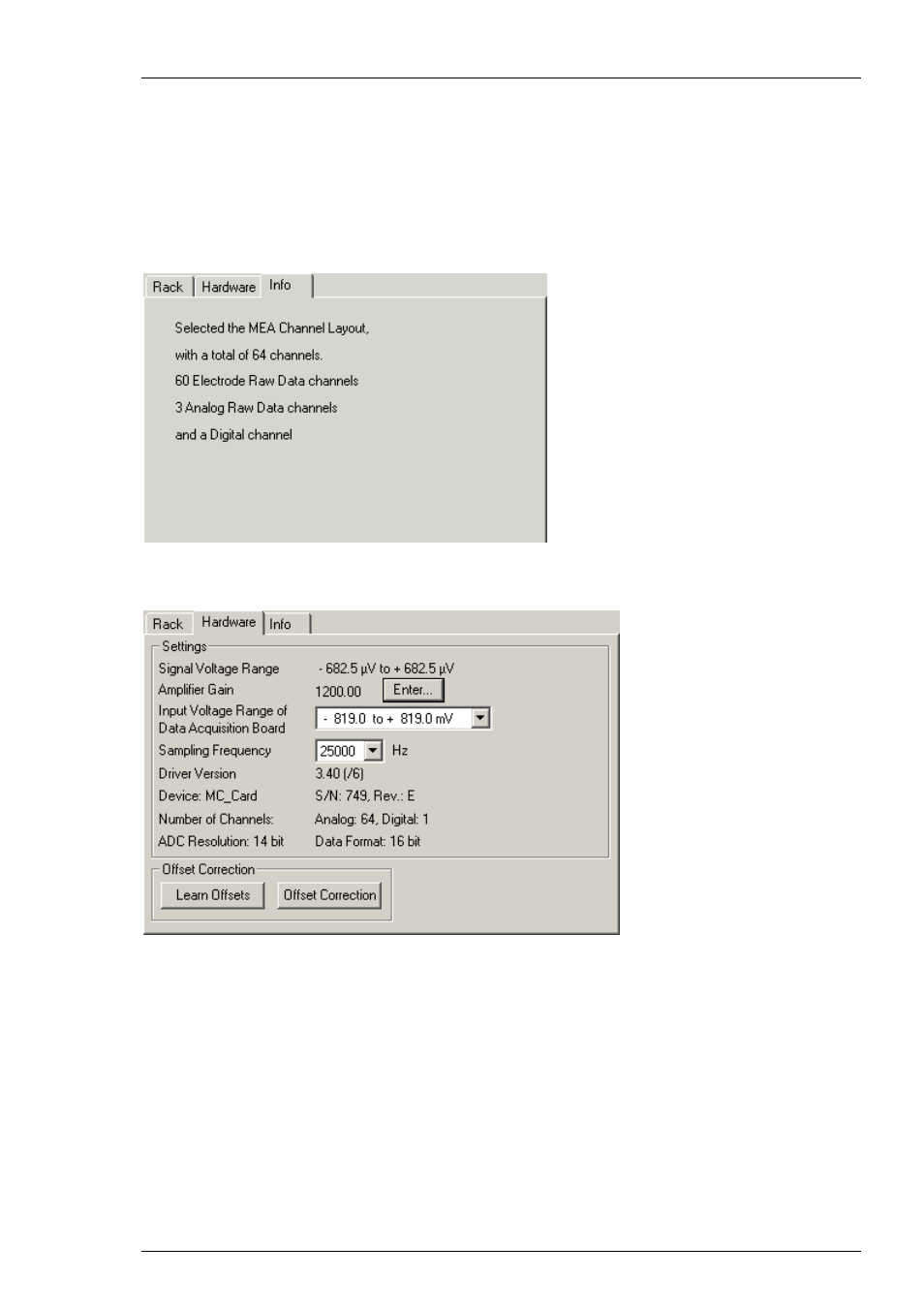

 Select the MC_Card from your rack and click the Info tab to see the channel layout information
of your current rack. You cannot modify the settings anymore once you have added the MC_Card
or the Replayer to your rack. If the settings are not appropriate, remove the MC_Card from your
rack and change the channel configuration.
 Click the Hardware tab to define the other settings, like the amplifier gain and sampling
frequency.
Signal voltage range
Please define first the "Amplifier Gain" and then the "Input Voltage Range of the Data
Acquisition Board". The "Signal Voltage Range" is calculated by dividing the "Input Voltage
Range of the Data Acquisition Board" and the amplifier gain factor.
