MC_Rack Features
121

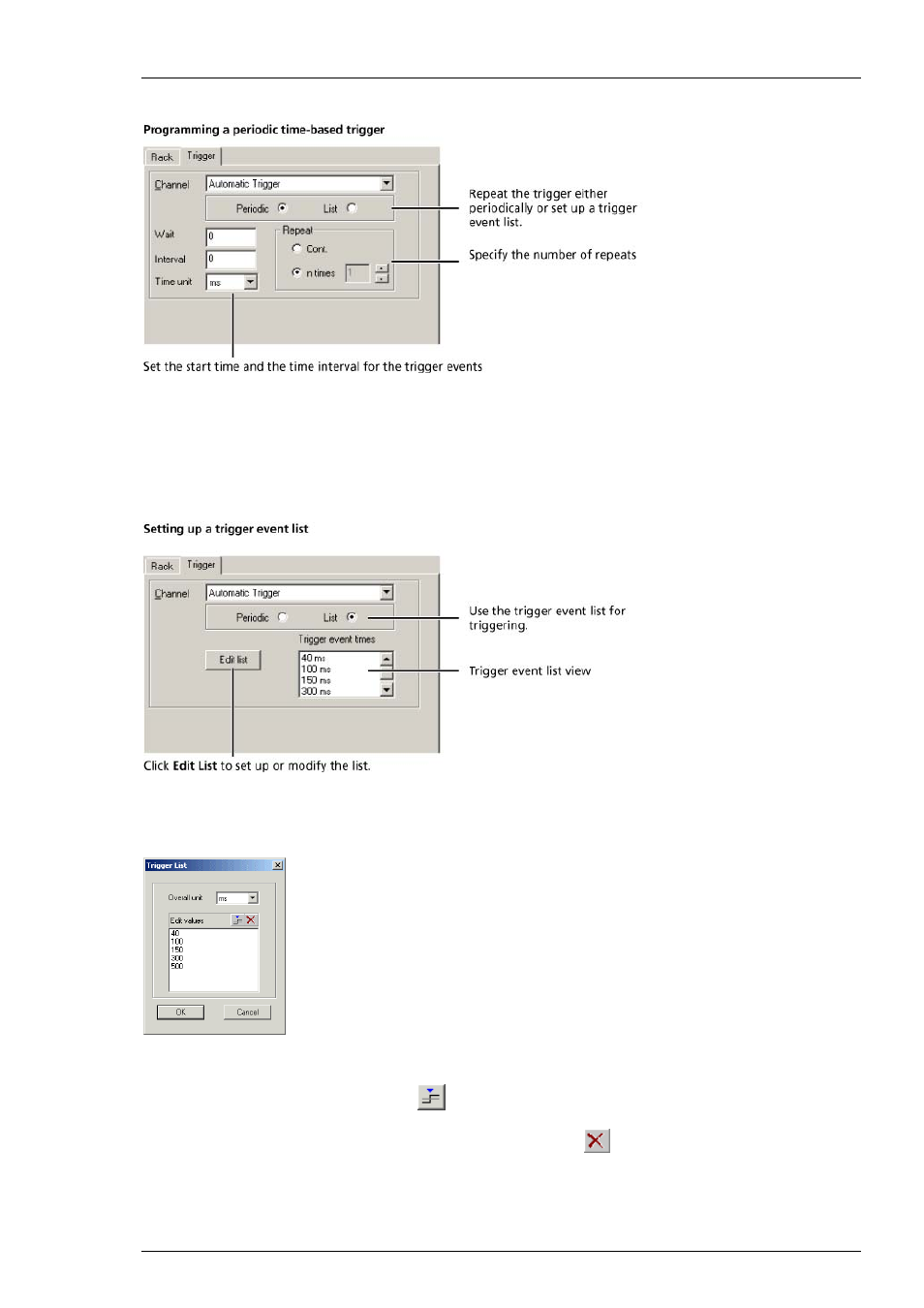

Single or periodic trigger event
If you use a periodic trigger, you define the start time (Wait), when the trigger occurs the first
time, and the time interval, when the trigger will reoccur after an event. You can choose
whether the trigger shall occur a fix number of times, or whether it shall occur continuously
(option Cont.).
Predefined list of trigger events
1. If you want to use predefined trigger times, select the option List.
2. Click Edit List to set up a list of trigger events. The Trigger List dialog box appears.
3. Select the time unit.
4. Click the New Trigger Value button to enter a value.
5. Select an entry in the list and click the Delete Value button to remove the selected trigger
event from the list, if necessary.
6. Click OK to complete the list and close the dialog box.
