XL™ Series
Operation with the H-355 "Smart Gas" System 21-7
21.4 H-355 Configuration Drawing

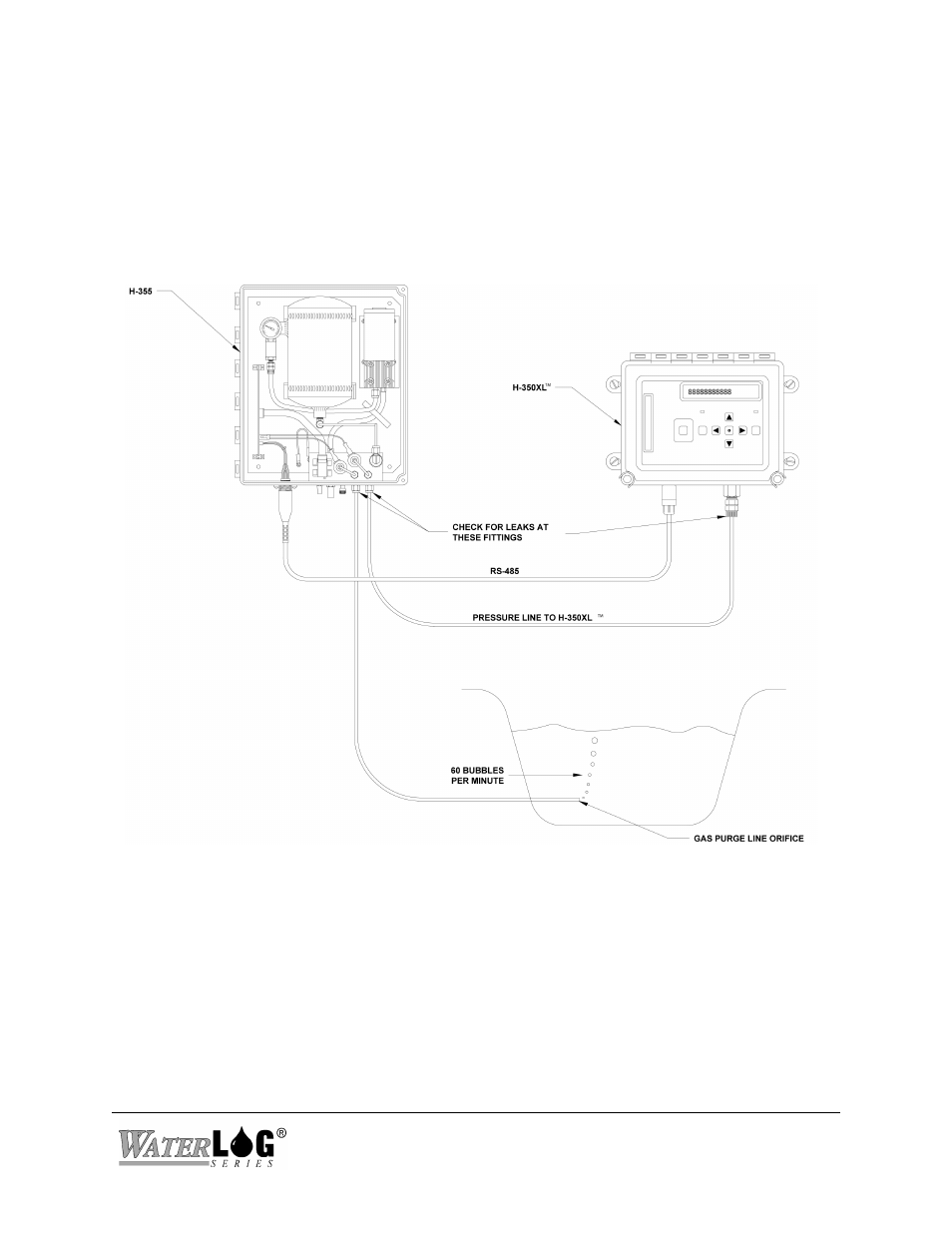

Figure 21-1 shows the H-350XL™ model and the H-355 connected as a system. Follow the
instructions in Chapter 2 of this manual and the H-355 user's manual to make connections
between the two devices.
Note: This figure shows the model H-350XL™ connected to the H-355 bubbler system. The
H-350XL™ is the only XL series model with the internal pressure transducer. Other models of
the XL series data loggers can be used to control the bubbler, but would need an external
pressure transducer like a H-350Lite connected to the H-355 pressure line and the electrical
connection of the H-350 Lite connected to the XL™ series logger to function properly.
Figure 21-1. H-350XL / H-355 Pressure Measurement System
