DS31256

60 of 181

6.5 BERT

The BERT block is capable of generating and detecting the following patterns:

§ The pseudorandom patterns 2E7, 2E11, 2E15, and QRSS

§ A repetitive pattern from 1 to 32 bits in length

§ Alternating (16-bit) words that flip every 1 to 256 words


The BERT receiver has a 32-bit bit counter and a 24-bit error counter. It can generate interrupts upon
detecting a bit error, a change in synchronization, or if an overflow occurs in the bit and error counters.
See Section

5

for details on status bits and interrupts from the BERT block. To activate the BERT block,

the host must configure the BERT mux (

Figure 6-7

). In channelized applications, the host must also

configure the Layer 1 state machine to send/obtain data to/from the BERT block through the Layer 1
configuration registers (Section

6.3

).

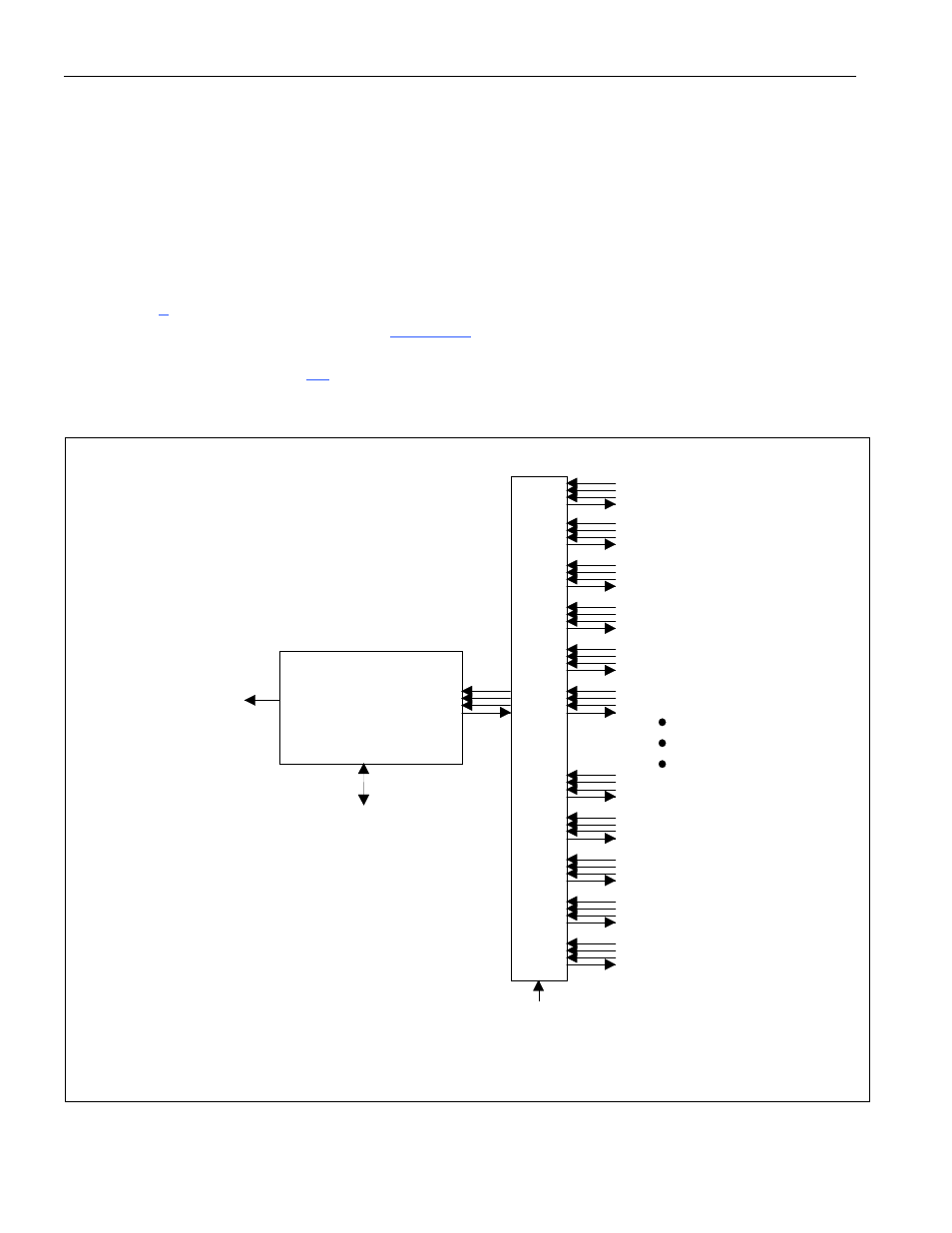

Figure 6-7. BERT Mux Diagram



Port 0 (slow)

Port 1 (slow)

Port 2 (slow)

Port 3 (slow)

Port 4 (slow)

Port 5 (slow)

BERT
Mux

BERT

BLOCK

SBERT STATUS
BIT IN SM

INTERNAL CONTROL AND

CONFIGURATION BUS

Port 13 (slow)

Port 14 (slow)

Port 15 (slow)

Port 0 (fast)

Port 1 (fast)

BERT SELECT (5)
IN THE MASTER CONFIGURATION REGISTER
