AC CHARACTERISTICS: PCI BUS INTERFACE

(V

DD

= 3.0V to 3.6V, T

A

= 0°C to +70°C.)

PARAMETER SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

PCLK

Period

t1 (Note

15)

30 40 ns

PCLK Low Time

t2

12

ns

PCLK High Time

t3

12

ns

All PCI Inputs and I/O Setup Time to the
Rising Edge of PCLK

t4

7 ns

All PCI Inputs and I/O Hold Time from the
Rising Edge of PCLK

t5 (Note

16)

1 ns

Delay from the Rising Edge of PCLK to
Data Valid on all PCI Outputs and I/O

t6

2 11 ns

Delay from the Rising Edge of PCLK to
Three-state on all PCI Outputs and I/O

t7

28 ns

Delay from the Rising Edge of PCLK to
Active from Three-state on all PCI Outputs
and I/O

t8

2 ns

Note 15: Aggregate, maximum bandwidth and port speed for the DS31256 are directly proportional to PCLK frequency. Ensure that PCLK is

33MHz for maximum throughput.

Note 16: The PCI 2.1 Specification dictates that t5 should be 0ns. The 1ns value is noncompliance; however, this should not present an issue in

a real-world board design.

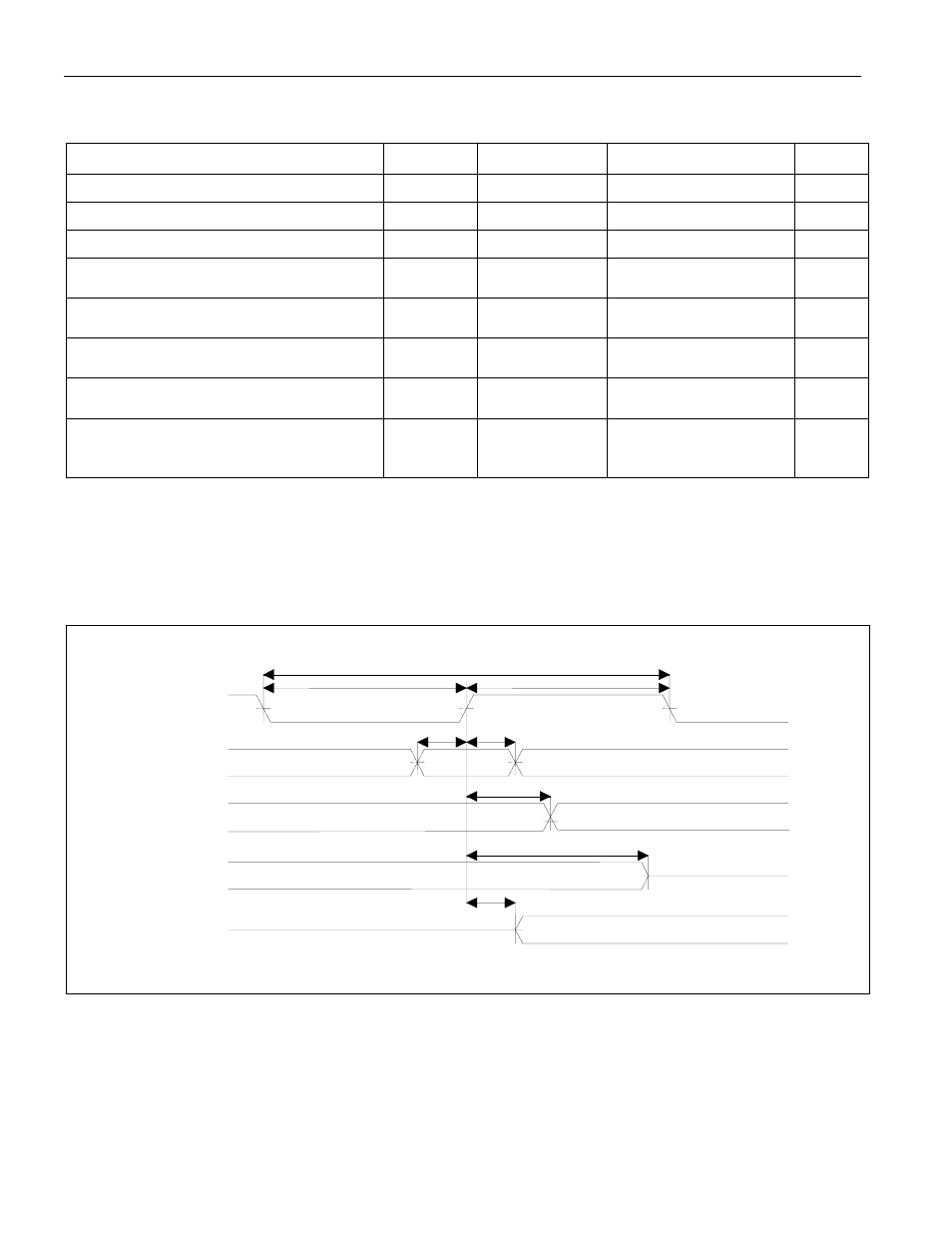

Figure 13-5. PCI Bus Interface AC Timing Diagram

PCLK

PCI Input

& I/O

PCI Output

& I/O

PCI Output &

I/O to Three-
State

PCI Output &

I/O from Three-
State

Three-State

Three-State

t4

t5

t6

t7

t8

t1

t2

t3

Data Valid
