DS31256

136 of 181

10.1.8 PCI Fast Back-to-Back

Fast back-to-back transactions are two consecutive bus transactions without the usually required idle
cycle (PFRAME and PIRDY deasserted) between them. This can only occur when there is a guarantee
that there is not any contention on the signal lines. The PCI specification allows two types of fast back-
to-back transactions—those that access the same agent (Type 1) and those that do not (Type 2).

Figure 10-9

shows an example of a fast back-to-back transaction where no idle cycle exists. As a bus

master, the Envoy is not capable of performing a Type 2 access. As a target, it can accept both types of
fast back-to-back transactions.

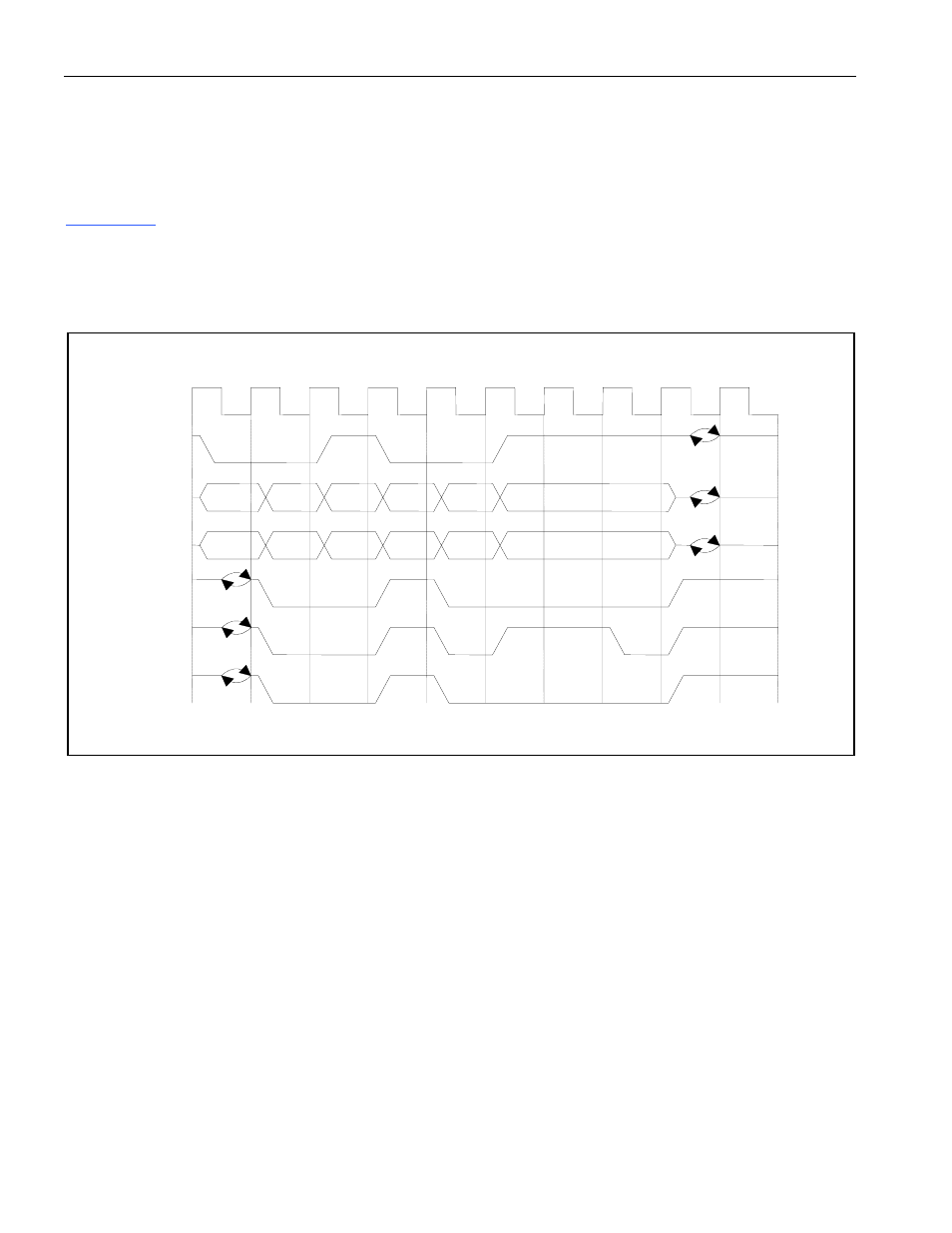

Figure 10-9. PCI Fast Back-To-Back

1

2

3

4

5

6

7

8

9

10

data #1

Address

CMD

BE #1

PCLK

PFRAME

PAD

PCBE

PIRDY

PTRDY

PDEVSEL

data #2

data #2

BE #2

BE #2

Address

data #1

CMD

BE #1
