DS31256

135 of 181

10.1.7 PCI

Target

Abort

Targets can also abort the current transaction, which means they do not wish for the initiator to attempt
the request again. No data is transferred in a target abort scenario. A target abort is signaled to the
initiator by the simultaneous assertion of PSTOP and deassertion of PDEVSEL (

Figure 10-8

). When the

Envoy is a target, it only issues a target abort when the host is accessing the local bus. This occurs when
the host attempts a bus transaction with a combination of byte enables (PCBE) that are not supported by
the local bus. If such a scenario occurs, it reports through the target-abort-initiated status bit in the PCI
command/status configuration register (Section

10.2

). See Section

11.1

for details about local bus

operation. When the Envoy is a bus master, if it detects a target abort, it reports through the target abort
detected by master status bit in the PCI command/status configuration register (Section

10.2

).

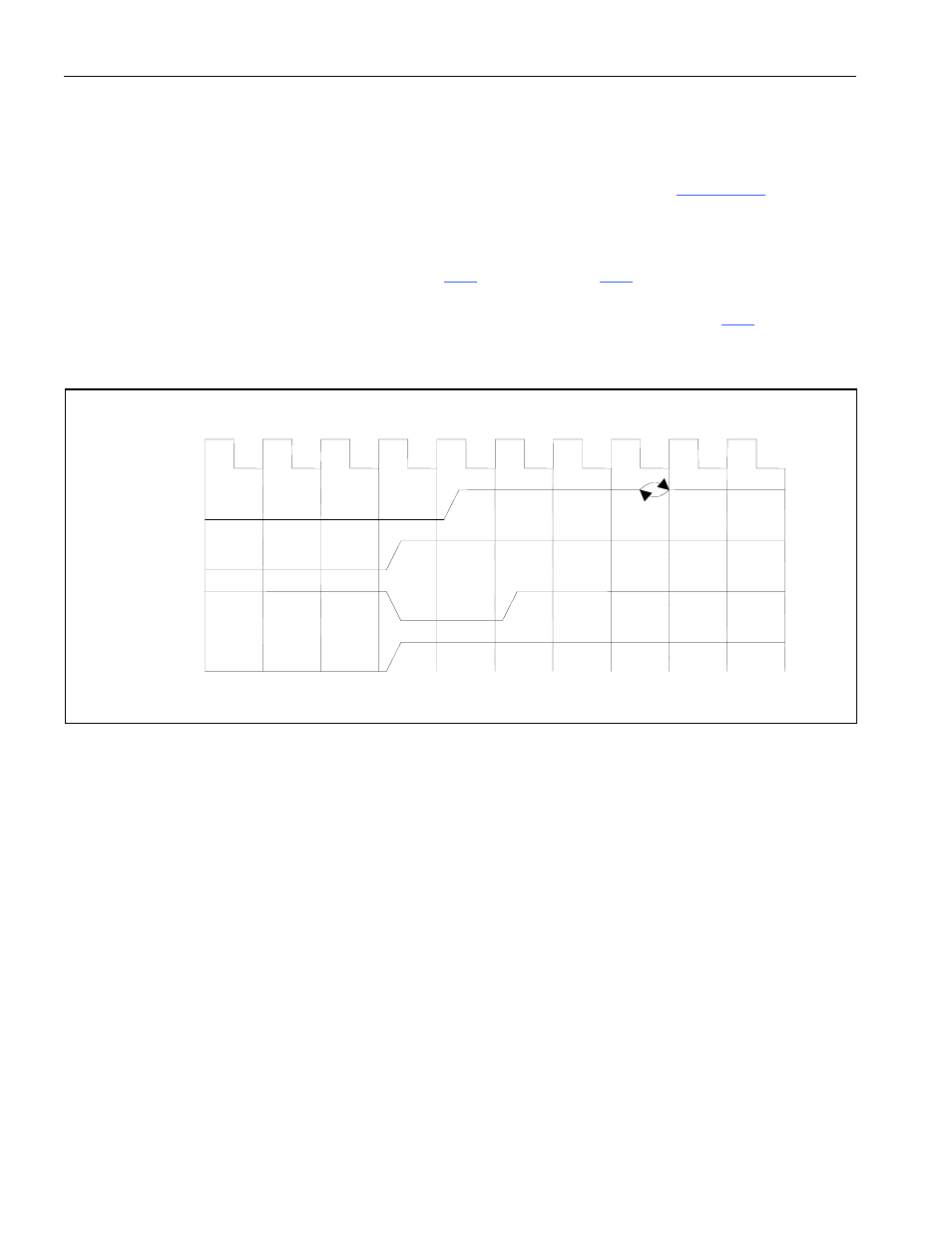

Figure 10-8. PCI Target Abort

1

2

3

4

5

6

7

8

9

10

PCLK

PFRAME

PSTOP

PDEVSEL

PTRDY
