86 EDIUS Neo — User Reference Guide
Section 2 — Application and Plug-In Settings
If your YCbCr clip is showing grayish blacks and dull whites, set the clip's
color range to Super White.
Capture Settings
Capture settings determine how EDIUS Neo interacts with an external
source device when capturing clips.
The Capture settings are accessed by selecting Settings>Application Set-
tings from the Preview window and then selecting Capture from the Appli-
cation Settings tree in the Settings dialog. See
Figure 81 .
Note After making changes to any of the items in the Capture dialog, click the
Apply button to apply the changes and make them active. Several changes
may be made before clicking the Apply button.

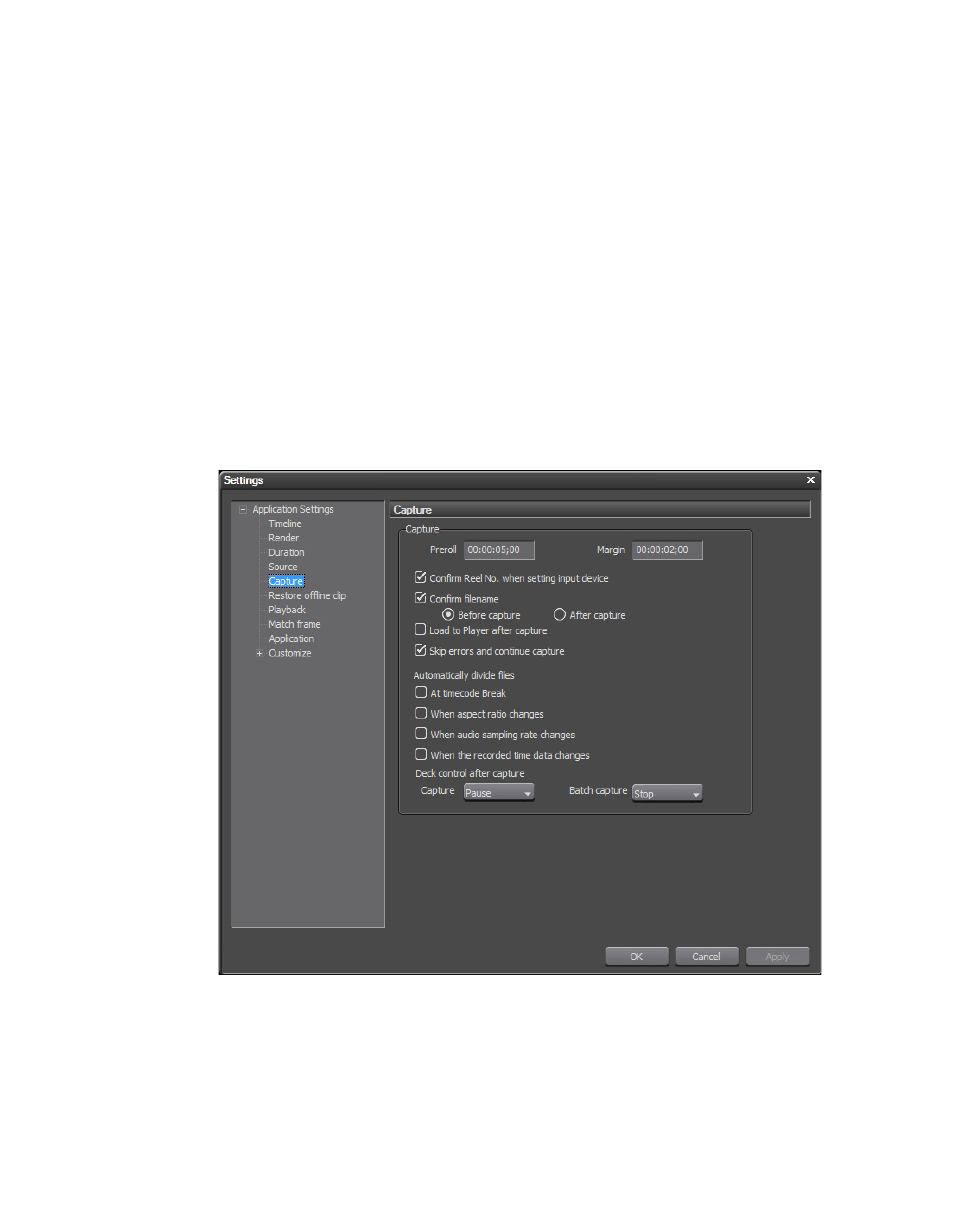

Figure 81. Capture Settings
The format of the Preroll and Margin fields is HH:MM:SS;FF (H=hour,
M=Minutes, S=Seconds; F=Frames). See Entering Numeric Data
on page 22
for more information on the various methods for entering numeric data.
