412 EDIUS Neo — User Reference Guide
Section 6 — Effects and Titles
Configuring Picture in Picture Effects
To configure a Picture in Picture effect that has been applied to a clip, do the
following:
1. Click the Mixer area of the clip to which the Picture in Picture effect has
been applied
2. Display the Information Palette (see Show/Hide the Information Palette on
page 443 for more information) as shown in Figure 504 .

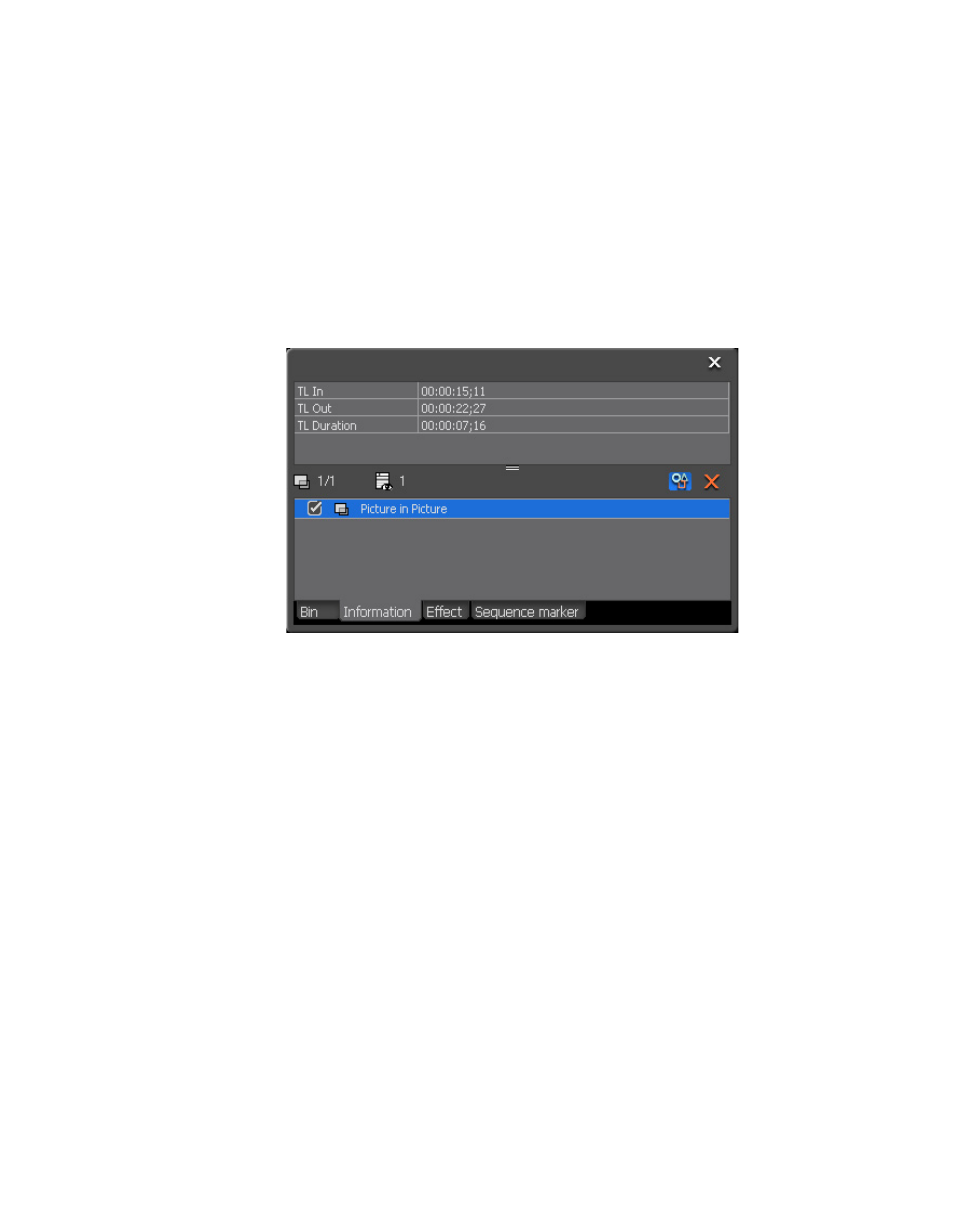

Figure 504. Information Palette - Picture in Picture Effect
3. Double-click the Picture in Picture effect in the Information Palette.
Note You may also select the Picture in Picture effect and click the Settings button
(highlighted in blue in
Figure 504 ) in the Information Palette.
The Picture in Picture dialog shown in Figure 505 appears
