286 EDIUS Neo — User Reference Guide
Section 5 — Timeline Operations

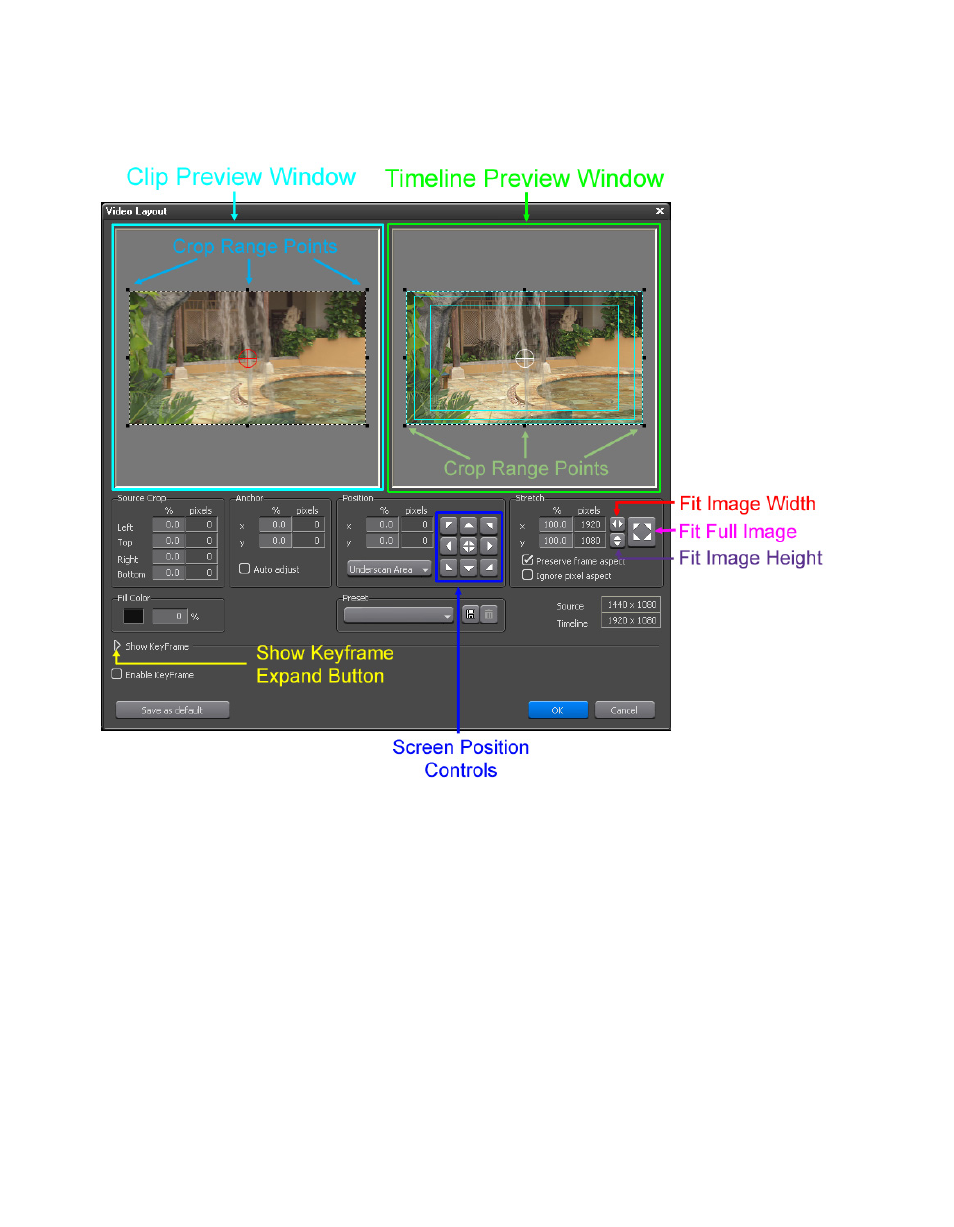

Figure 336. Video Layout Dialog
Many of the controls and functions in the Video Layout dialog accomplish
the same tasks, but, in a different manner. Some work in conjunction with
others and not all need to be used in order to modify the video layout.
Clip Preview Window
Displays the clip video. Drag one of the eight (8) crop range points on the
perimeter to change the display range.
Timeline Preview Window
Shows the Timeline display. Drag one of the eight (8) crop range points on
the perimeter to change the display position or the aspect ratio. These
actions are also reflected in the Recorder.
