EDIUS Neo — User Reference Guide 507
Titles
3. Click the OK button to close the LAYOUT dialog.
Horizontal, Vertical Positioning Guides
These guides help you position a title along the horizontal or vertical axis
and mark the center location on the screen.
Positioning Marks
These marks indicate the boundary of the title area.
Title Safe Area
The title safe area boundaries are displayed by enabling TITLE SAFE AREA
in the bottom left corner. When the check mark is present, the boundary is
displayed.
Over Scan Area
The Over Scan area boundaries are displayed by enabling OVER SCAN
AREA in the bottom left corner. When the check mark is present, the
boundary is displayed.

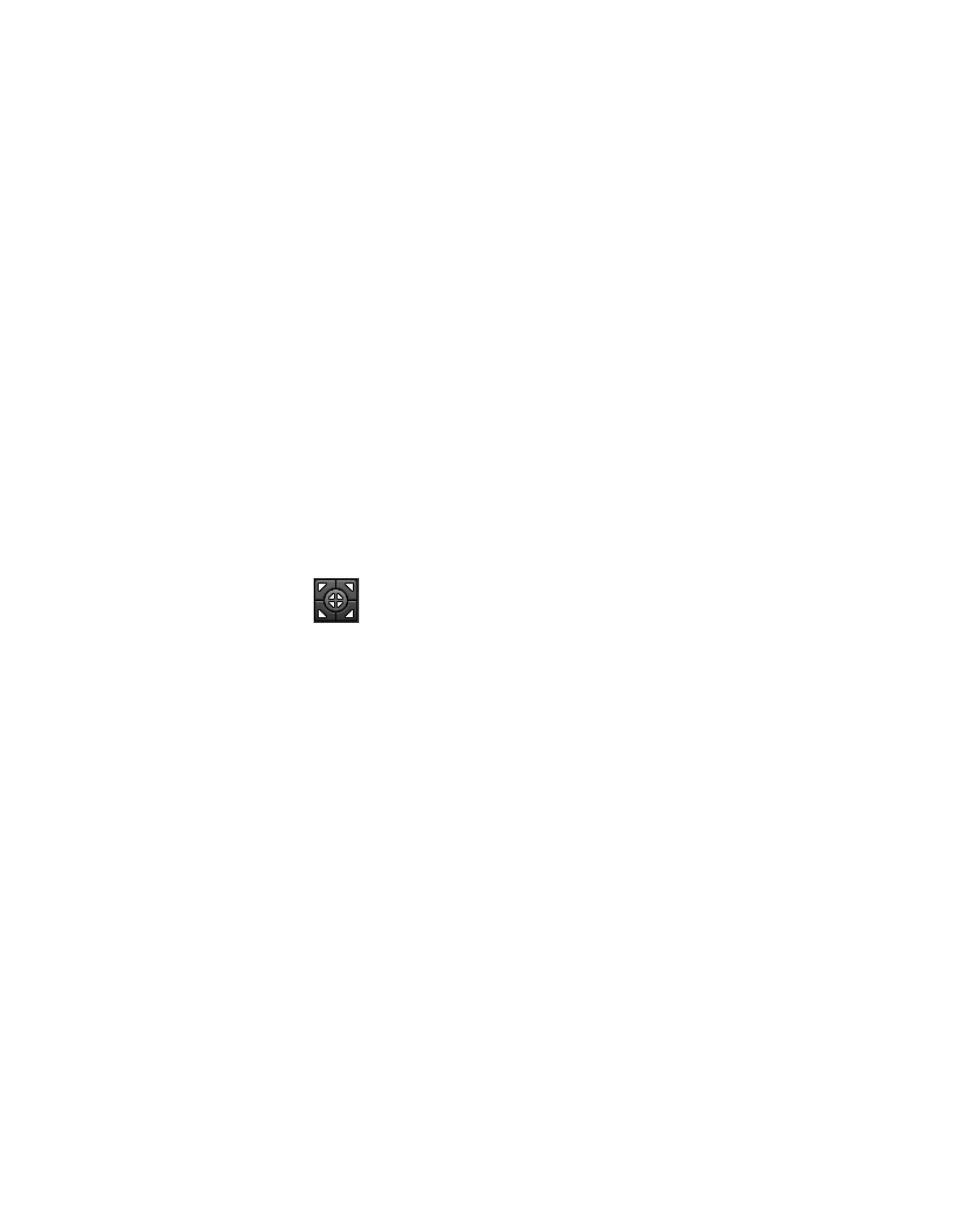

Centering/Cornering Button
This button contains five small buttons that correspond to the
outside corners and the center positions of the area selected as the
BASIC AREA.” Clicking one of these buttons aligns the positioning
marks with the selected corner/center position. For example, if the upper
left corner button is clicked, the upper left positioning mark is aligned with
the upper left corner of the BASIC AREA and the text is repositioned
accordingly.
Basic Area List Button
Select from the drop-down list the area (underscan, overscan or title safe)
to be used when adjusting positioning marks with the Centering/Cor-
nering button.
Vertical Positioning Button
Clicking this button returns the title to a vertical position of 0 on the Y scale.
Horizontal Positioning Button
Clicking this button returns the title to a horizontal position of 0 on the X
scale.
Note When a title is dragged to a new position, the X, Y coordinates are changed
to indicate the new position. You may also enter X,Y coordinates directly to
reposition the title.
