26

EDIUS Neo — User Reference Guide

Section 1 — Getting Started

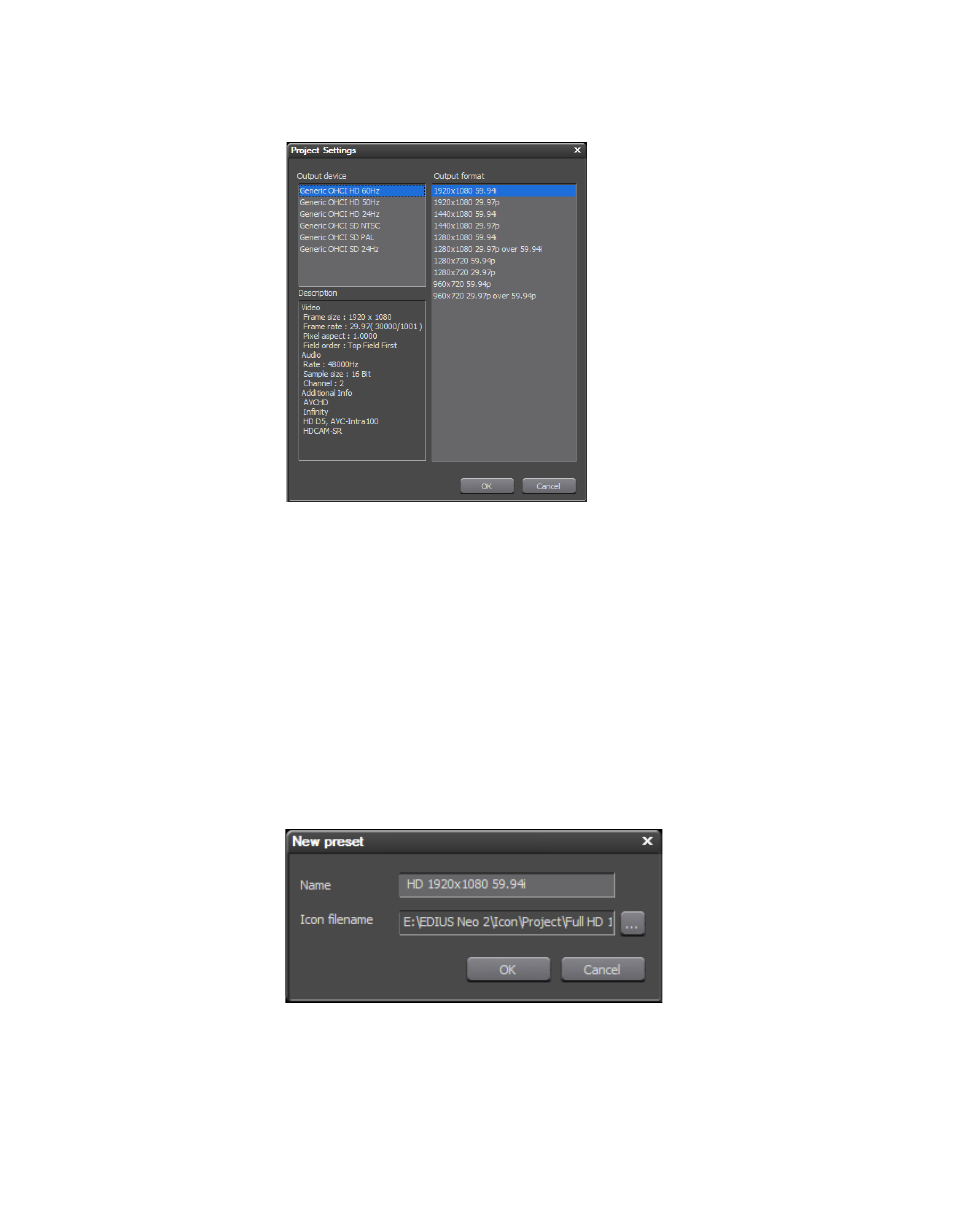

Figure 8. Project Preset Settings

2.

From the list of available output devices, select the output device for the
project preset.

3.

From the list of output formats, select the default output format for the
project preset

Note

The Description section of the Project Settings dialog will contain details such
as frame size, frame rate, audio rate, sample size, channels, etc. based on the
output device and output format selections.

4.

Click the

OK

button to close the Project Settings dialog box.

The project preset name dialog shown in

Figure 9

appears.

Figure 9. New Project Preset

5.

If you wish to accept the default project preset name and icon, proceed
to

Step 9

.
