EDIUS Neo — User Reference Guide
579
Keyframeable 2D Picture-in-Picture

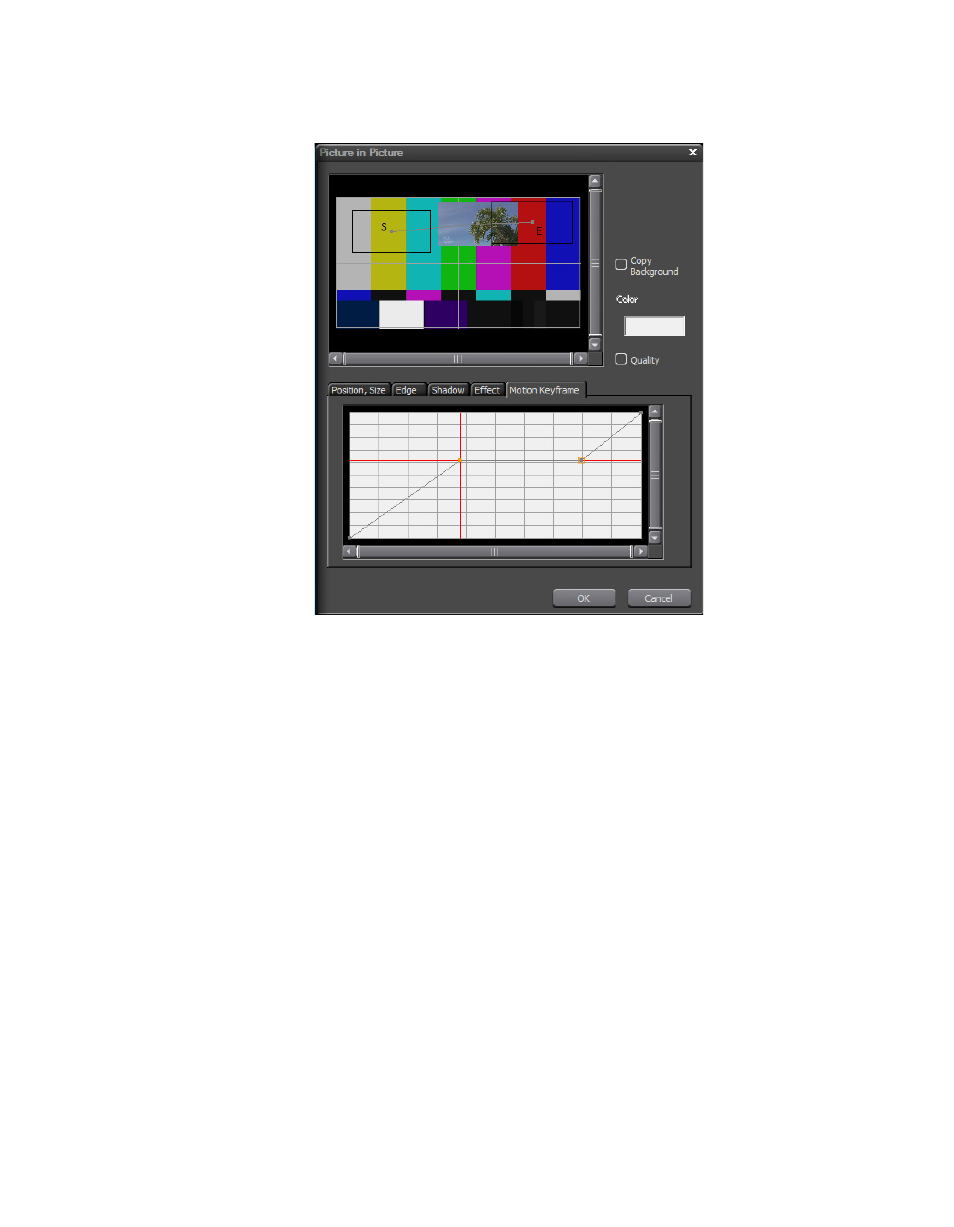

Figure 728. Keyframeable 2D PIP - Two Nodes Flat on Grey Line
21.
Move the Timeline cursor through the clip.
Notice how the clip holds at the intermediate keyframe position while the
cursor moves through the area in which the grey line is riding the red hor-
izontal line.
22.
Click on the graph between the two existing nodes and add another
node to the grey.
23.
Drag the new node to a position under the red horizontal line.
24.
Move the Timeline cursor through the clip.
Notice that the PIP image moves toward the intermediate keyframe posi-
tion and then backtracks as it moves towards the node that is under the red
line. It then continues its progression towards the End keyframe position
after passing through the second node.
for an example that illustrates this concept.
