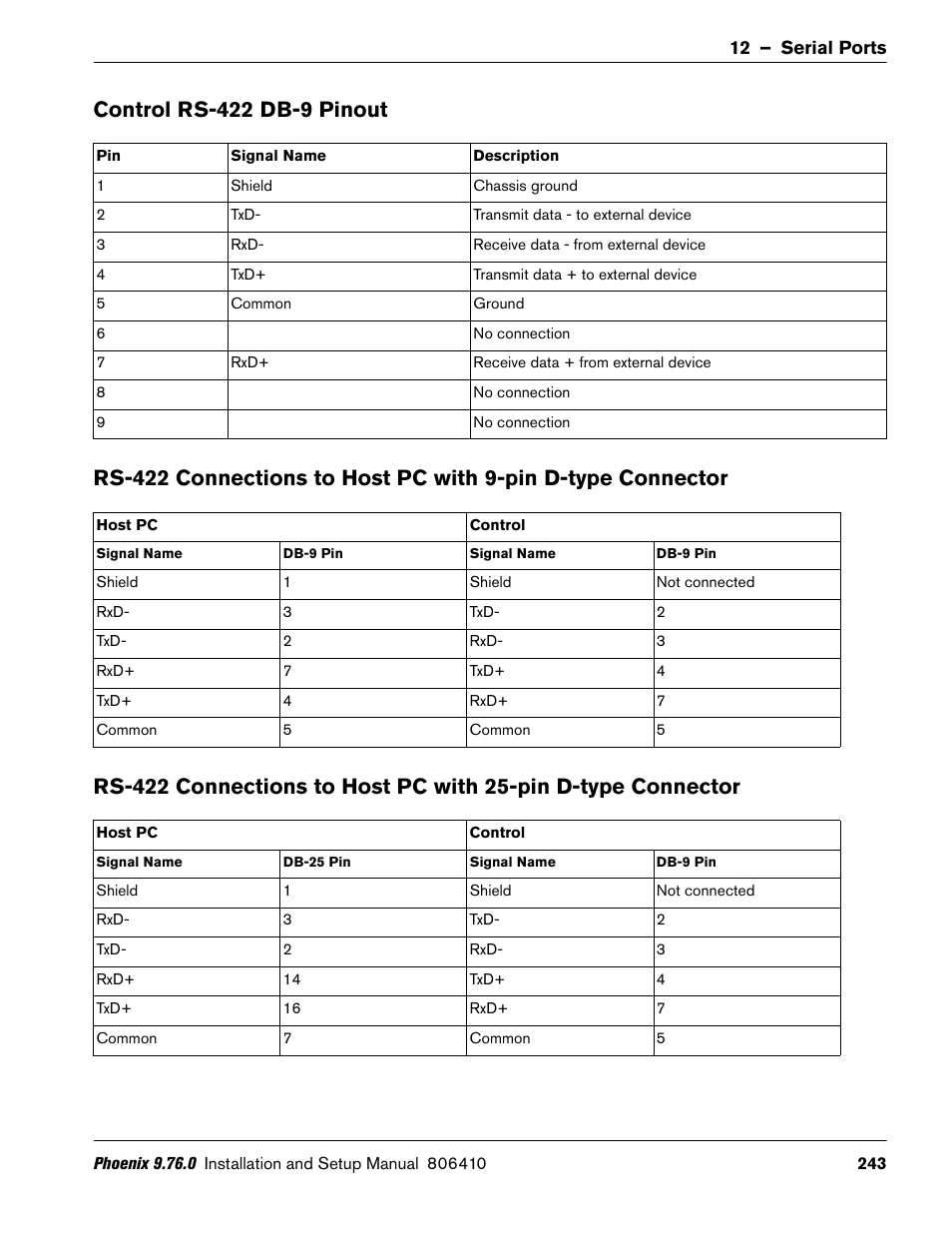

Control rs-422 db-9 pinout – Hypertherm V9 Series Phoenix Rev.11 User Manual

Page 243

Control rs-422 db-9 pinout | Hypertherm V9 Series Phoenix Rev.11 User Manual | Page 243 / 294

Control rs-422 db-9 pinout | Hypertherm V9 Series Phoenix Rev.11 User Manual | Page 243 / 294

This manual is related to the following products:

V9 Series Phoenix Rev.9 EDGE Pro HyPath Shape Cutting Control Rev.4 EDGE Pro Picopath Shape Cutting Control Rev.3 EDGE Pro SERCOS II Shape Cutting Control Rev.4 EDGE Pro SERCOS III Shape Cutting Control Rev.4 EDGE Pro Ti Shape Cutting Control Rev.2 MAXPRO200 Rev.2
