High-Speed Microcontroller User’s Guide

Rev: 062210

70 of 176

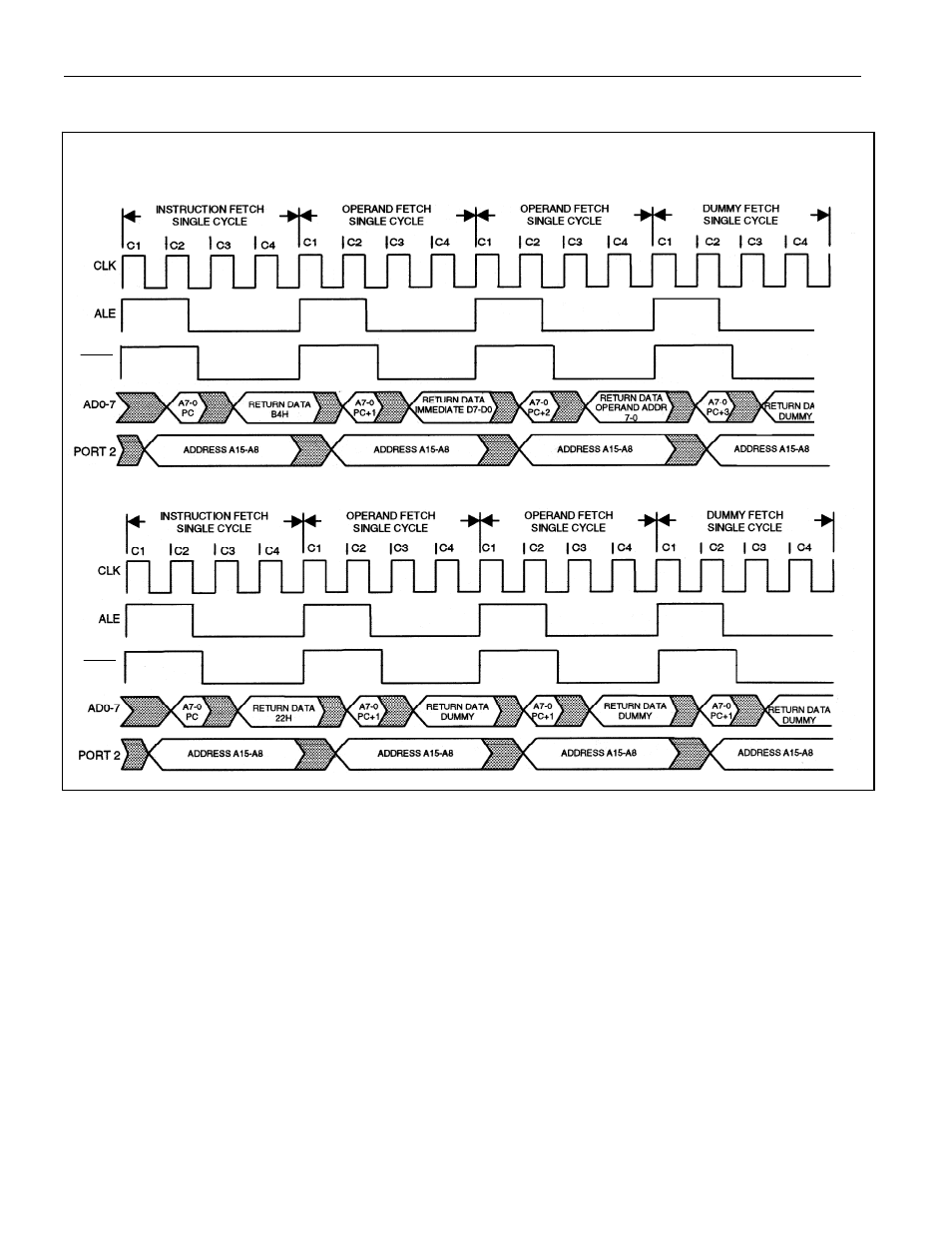

Figure 5-6. Four-Cycle Instruction Timing

Example 1: CJNE A, #data, addr

B4h d7–d0 a7–a0

Example 2: RET

22h

PSEN

PSEN
