GF-122 AERCO XPC GATEWAY
85
3. Set the Comm Selector DIP Switches 1 - 8 for baud rate, port number, wiring, and protocol:
Set the Comm Selector DIP Switches 1 and 2 for the appropriate communications speed (9600,
19.2k, 38.4k, or 76.8k bps).
NOTE
USE THE SAME BAUD RATE FOR ALL DEVICES ON THE NETWORK
SEGMENT.
Baud Rate DIP Switch 1 DIP Switch 2
9600 Off Off
19.2 Off On
38.4 On Off
76.8 On On
• Set Comm Selector DIP Switch 3 to ON for Port 2.
• Set Comm Selector DIP Switch 4 (Port 1) will be set by the manufacturer.

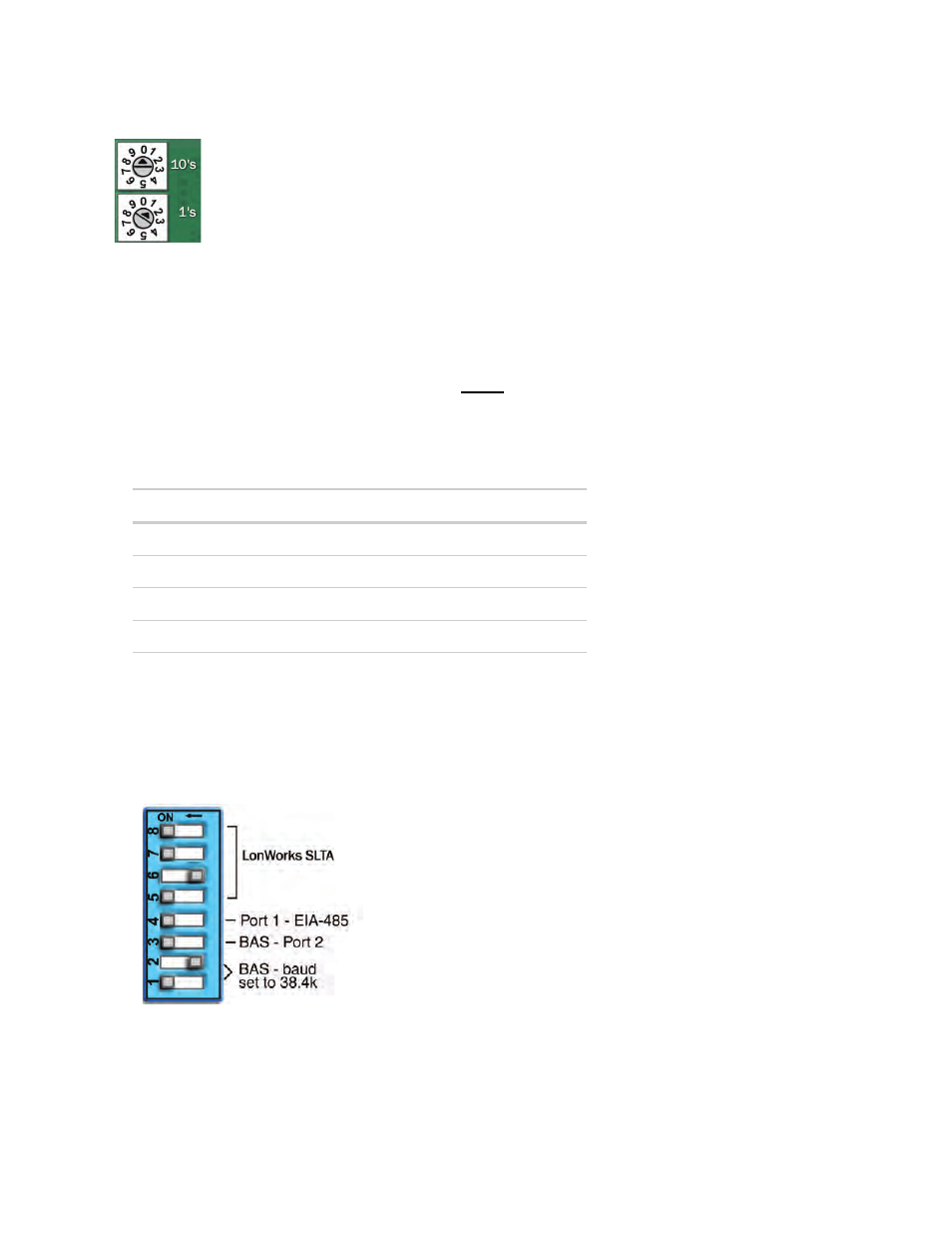

• Set Comm Selector DIP Switch 5 - 8 for LonWorks SLTA. The following example shows the DIP
Switches set for 38.4k, Port 2, and LonWorks SLTA.
